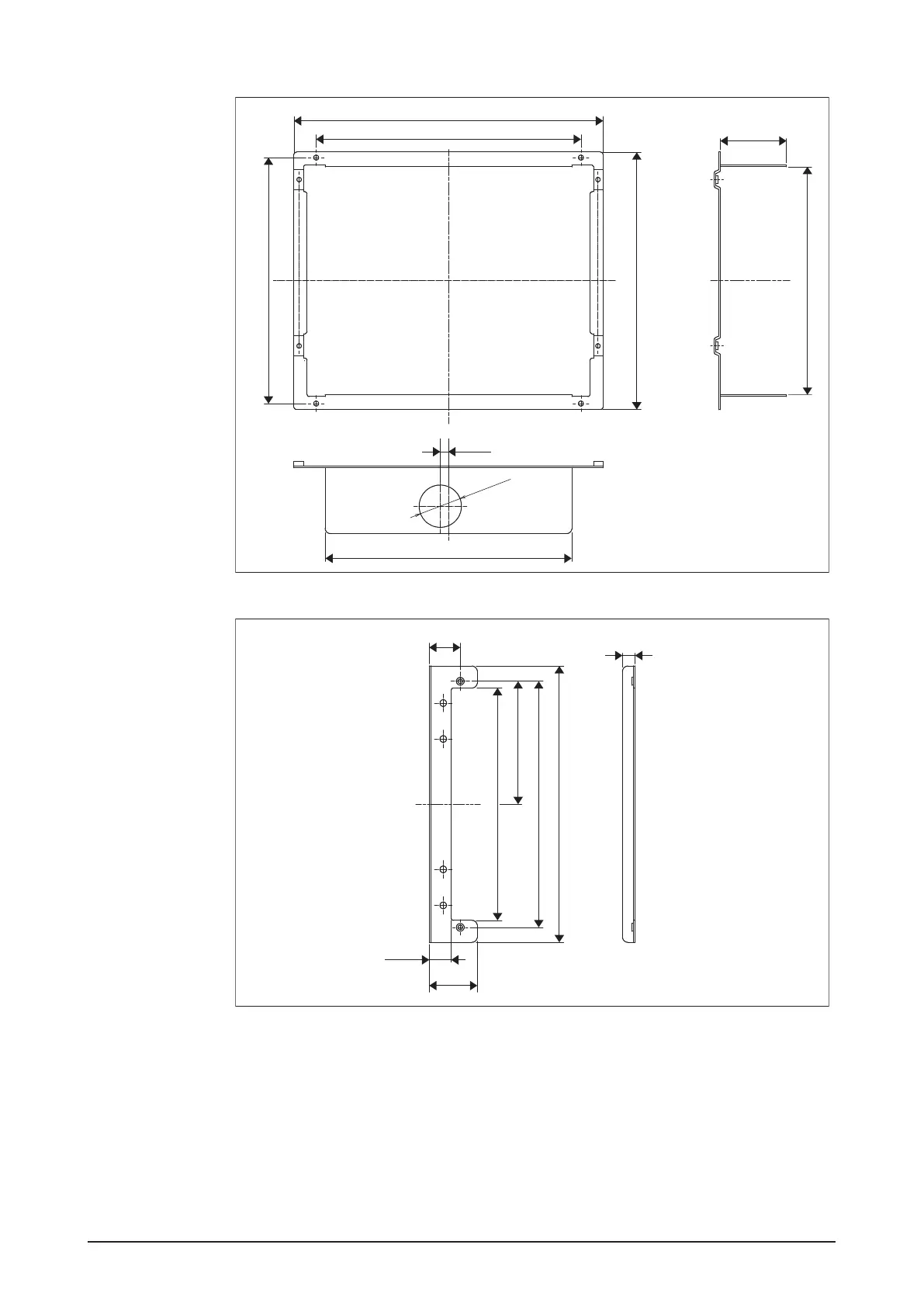

• Frame bracket
11-3/32
8-3/16
9-7/32
2-7/16
Φ1-17/32
9-1/2
8-27/32
9/32
8-13/16
(in.)Thickness 1/16
• Angle bracket
9-29/32
8-13/16
4-13/32
8-5/16
1-1/8
25/32
1-23/32
15/32
(in.)Thickness 1/16
