Step 2
 Screw a ceiling hook on the supporting structure.
 Attach the safety wire to the M6 screw eye bolt (use a carabiner) and the ceiling hook.
 Run the required cables suspended from the ceiling through a PG16 cable gland.
 Screw the PG16 cable gland in the appropriate thread of the housing.
 Insert the housing into the circular recess.

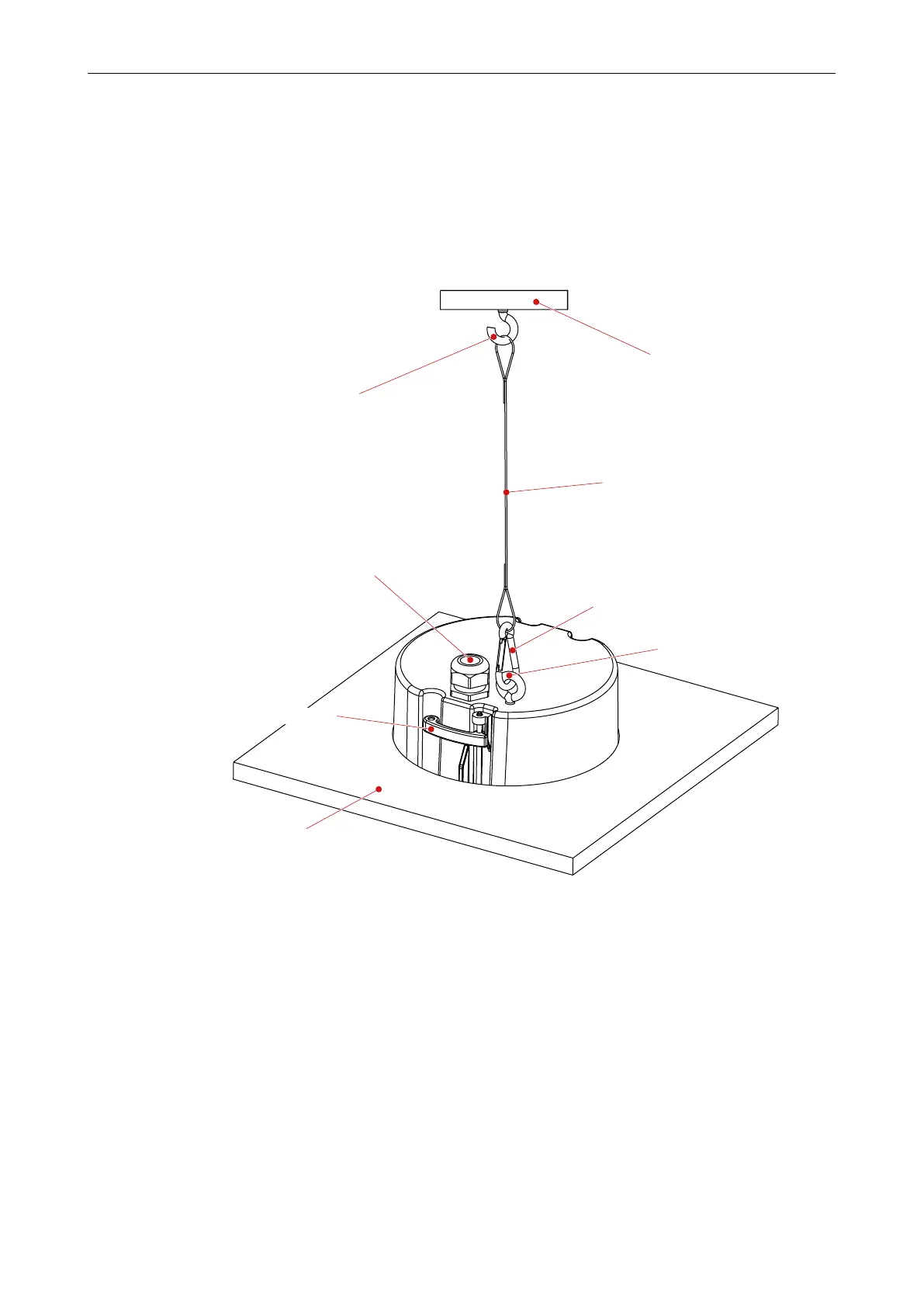

Carabiner
Safety wire
Supporting structure
Ceiling hook
Suspended ceiling
Ceiling clamp
PG16 cable gland
M6 screw eye bolt
Fig. 6-3
