dallmeier DF4510H - Page 74

DF4510HD | DF4910HD | DDF4510HDV-IM/-SM | DDF4910HDV-IM/-SM
www.dallmeier.com 74

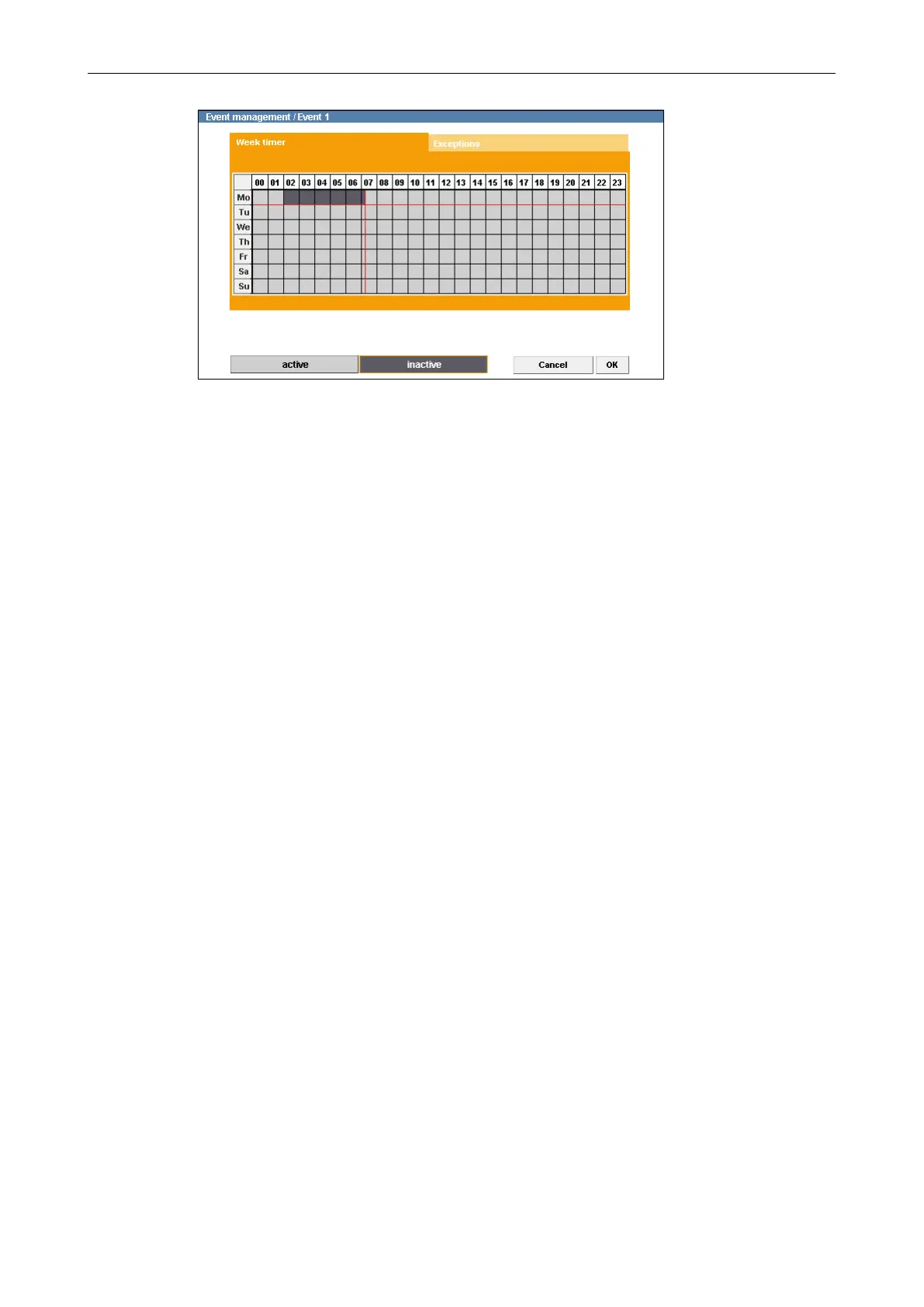

Fig. 11-7
Dark grey areas in the week timer represent inactive periods.
During inactive periods the messaging function is disabled and no event actions are
executed.
In the example shown (Fig. 11-7) the period on Monday from 02:00 to 07:15 am is inac-
tive. During this period no messages are sent out and no event actions are executed.
 Conrm with OK if you do not want to make any additional settings.
Delete Inactive Periods
 Click active.
 In the week timer, click and hold the left mouse button and draw a rectangle over an
inactive period.
 Release the mouse button.
 Repeat the last two steps until all relevant inactive periods are deleted.
It is also possible to delete sections (at least 15 minutes) between inactive periods.
 Conrm with OK if you do not want to make any additional settings.
