DF4510HD | DF4910HD | DDF4510HDV-IM/-SM | DDF4910HDV-IM/-SM
www.dallmeier.com 76

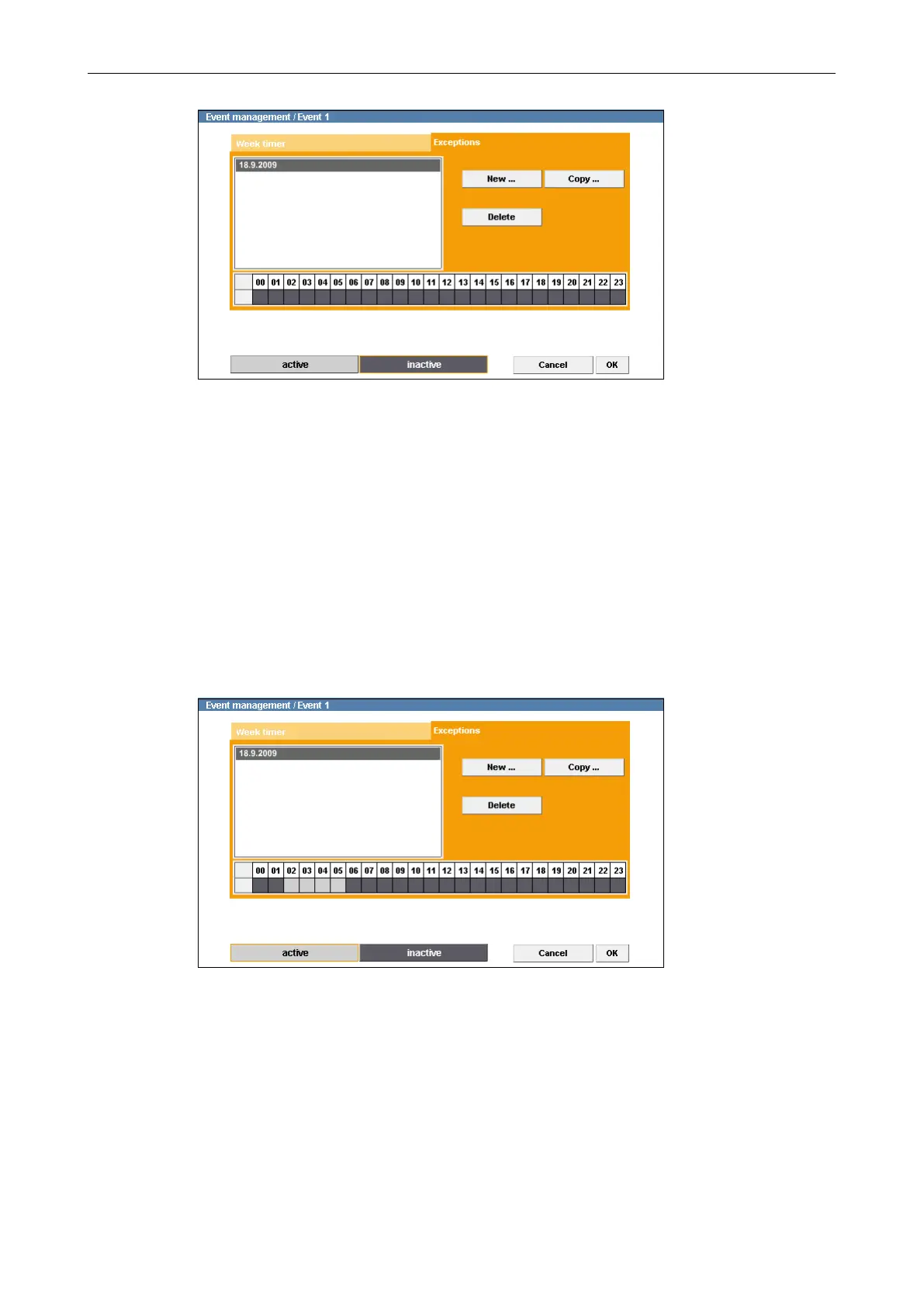

Fig. 11-10
Dark grey areas in the timetable represent inactive periods.
During inactive periods the messaging function is disabled and no event actions are
executed.
By default, the entire period (24 hours) in the timetable is inactive.
Select Active Periods
 Click active.
 In the timetable, click and hold the left mouse button and draw a rectangle over a rel-
evant period.
 Release the mouse button.
 Repeat the last two steps until all relevant active periods are selected.
Fig. 11-11
Light grey areas in the timetable represent active periods.
During active periods the messaging function is enabled and event actions are ex-
ecuted.
In the example shown (Fig. 11-11) the period from 02:00 to 06:00 am is active. During
this period messages are sent out and event actions are executed.
 Conrm with OK if you do not want to make any additional settings.
