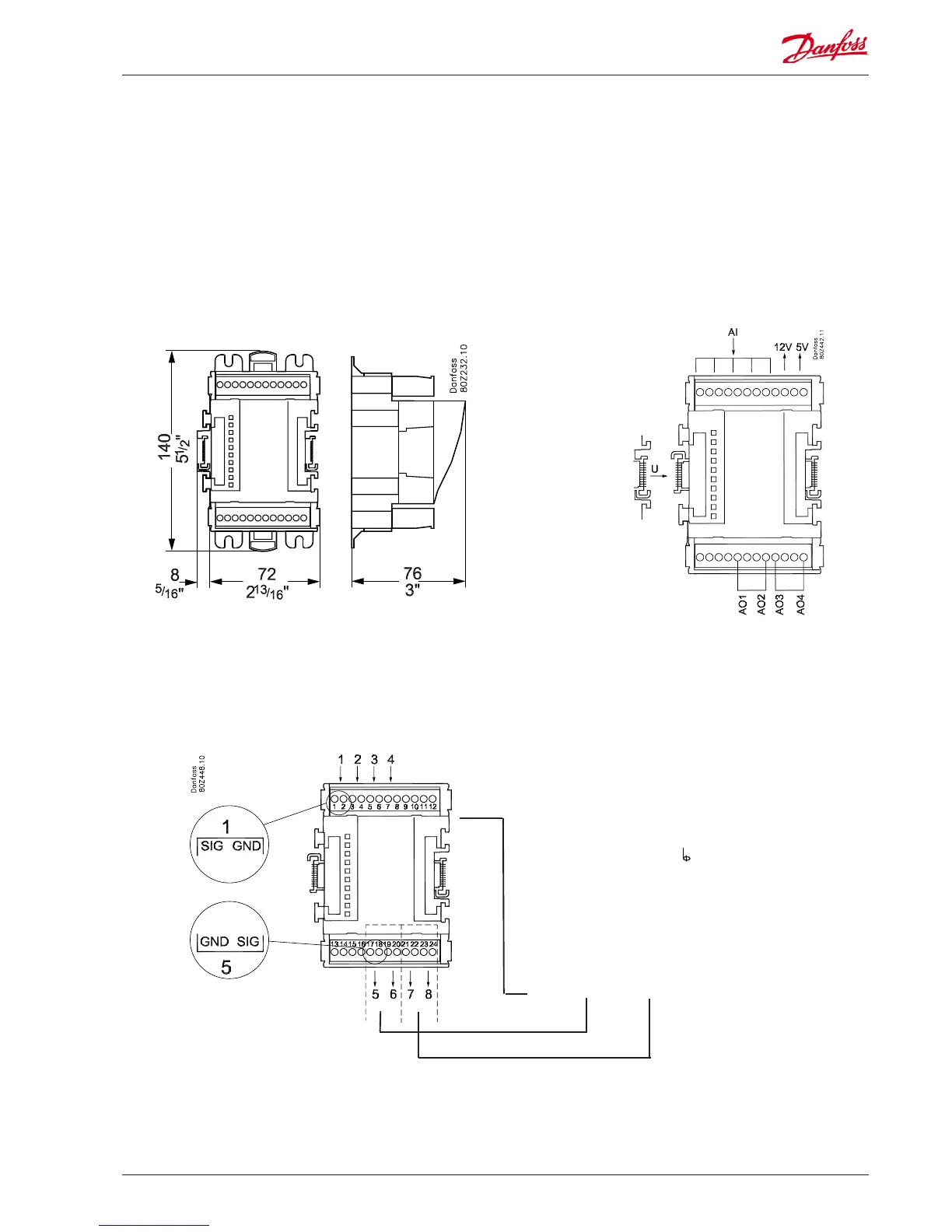

AK-XM 103A Variable Output board
Your AK-SM fully supports the family of Danfoss I/O modules.
The I/O family consists of various analog inputs, digital outputs,
and relays. New to the I/O family is the AK-XM 103A (080Z0032)
analog input /output module. This new module oers x4 analog
inputs and x4 analog outputs, allowing easy control of a variety of
control applications.
Terminal 9: 12 V max 100 mA
Terminal 10: 5 V max 25 mA
Terminal 11, 12:
Terminal 2, 4, 6, 8: GND-AI 1-4
Terminal 17, 19: GND-AO 1+2
Terminal 21, 23: GND-AO 3+4
Galvanic isolation:
AI 1-4 ≠ AO 1-2 ≠ AO 3-4
AK-SM 850 User Guide Lit. no. USCO.PI.R1.E1.02 © Danfoss 07-2013 49
