130BB658.10

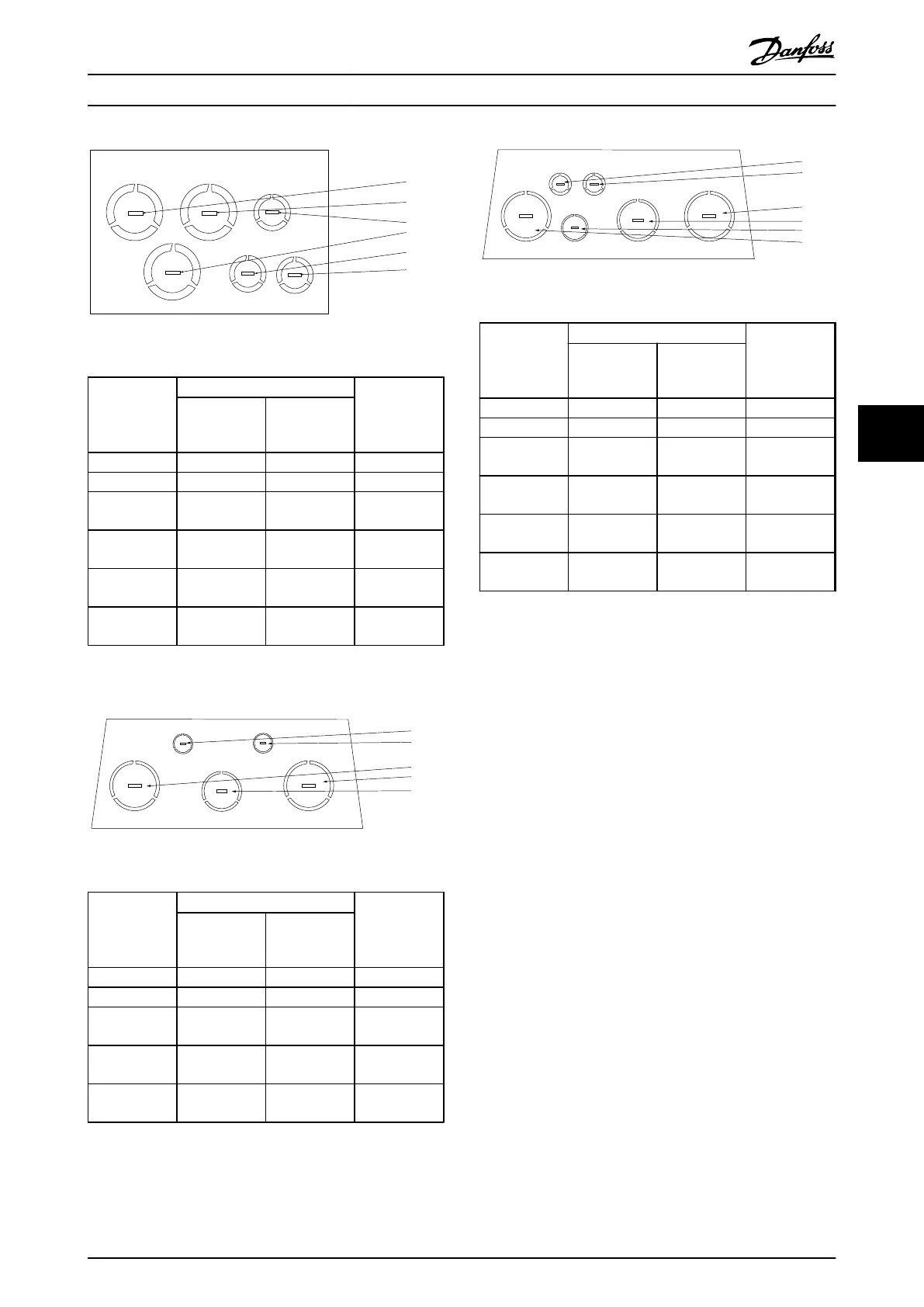

Illustration 6.33 B3 - IP21
Hole Number
and
recommended
use
Dimensions
1)
Nearest metric
UL [in] [mm]
1) Mains 1 34.7 M32
2) Motor 1 34.7 M32
3) Brake/Load
Sharing
1 34.7 M32
4) Control
Cable
1/2 22.5 M20
5) Control
Cable
1/2 22.5 M20
6) Control
Cable
1/2 22.5 M20
Table 6.15 Legend to Illustration 6.33
1)
Tolerance ± 0.2 mm
[5]
[3]
[2]
[4]
[1]
130BB661.10
Illustration 6.34 C1 - IP21
Hole Number
and
recommended
use
Dimensions
1)
Nearest metric
UL [in] [mm]
1) Mains 2 63.3 M63
2) Motor 2 63.3 M63
3) Brake/Load
Sharing
1 1/2 50.2 M50
4) Control
Cable
3/4 28.4 M25
5) Control
Cable
1/2 22.5 M20
Table 6.16 Legend to Illustration 6.34
1)
Tolerance
± 0.2 mm
[5]
[3]
[2]
[6]
[4]
[1]
130BB662.10
Illustration 6.35 C2 - IP21
Hole Number
and
recommended
use
Dimensions
1)
Nearest metric
UL [in] [mm]
1) Mains 2 63.3 M63
2) Motor 2 63.3 M63
3) Brake/Load
Sharing
1 1/2 50.2 M50
4) Control
Cable
3/4 28.4 M25
5) Control
Cable
1/2 22.5 M20
6) Control
Cable
1/2 22.5 M20
Table 6.17 Legend to Illustration 6.35
1)
Tolerance
± 0.2 mm
