B.1 EMI/EMC Filter Installation Instructions
1. Mount the filter on the floor or on a wall in a vertical position.
2. Ensure there is a minimum of 60mm (2 3/8”) of space for the cooling slots.
B.1.1 Line Side Connection
Input and output filter leads should be separated by a maximum practical distance within the
enclosure and should be routed separately in interconnecting conduits when used (refer to "Figure
B-1 Interconnection Layout").
1. Insert the line wires into the terminals labeled "L1," "L2," and "L3" on the "Line" side of the filter.
Tighten the terminal screws.
2. Attach the ground lug to the main ground bus and tighten the nut (refer to "Figure B-2
Grounding Diagram" on page 112).
B.1.2 Load Side Connection
1. Insert the load wires (instead of the line side of the line reactor) into the terminals labeled "L1,"
"L2," and "L3" on the "Load" side of the filter. Tighten the terminal screws.
2. Attach the ground lug to the main ground bus and tighten the nut.
B.1.3 Harmonic Filter
1. If a harmonic filter is to be installed, follow the manufacturers instructions.
2. Connection of a harmonic filter should be made on the Load side of the Line Reactor (refer to
"Figure 20-9 Typical Electrical Connections" on page 106).

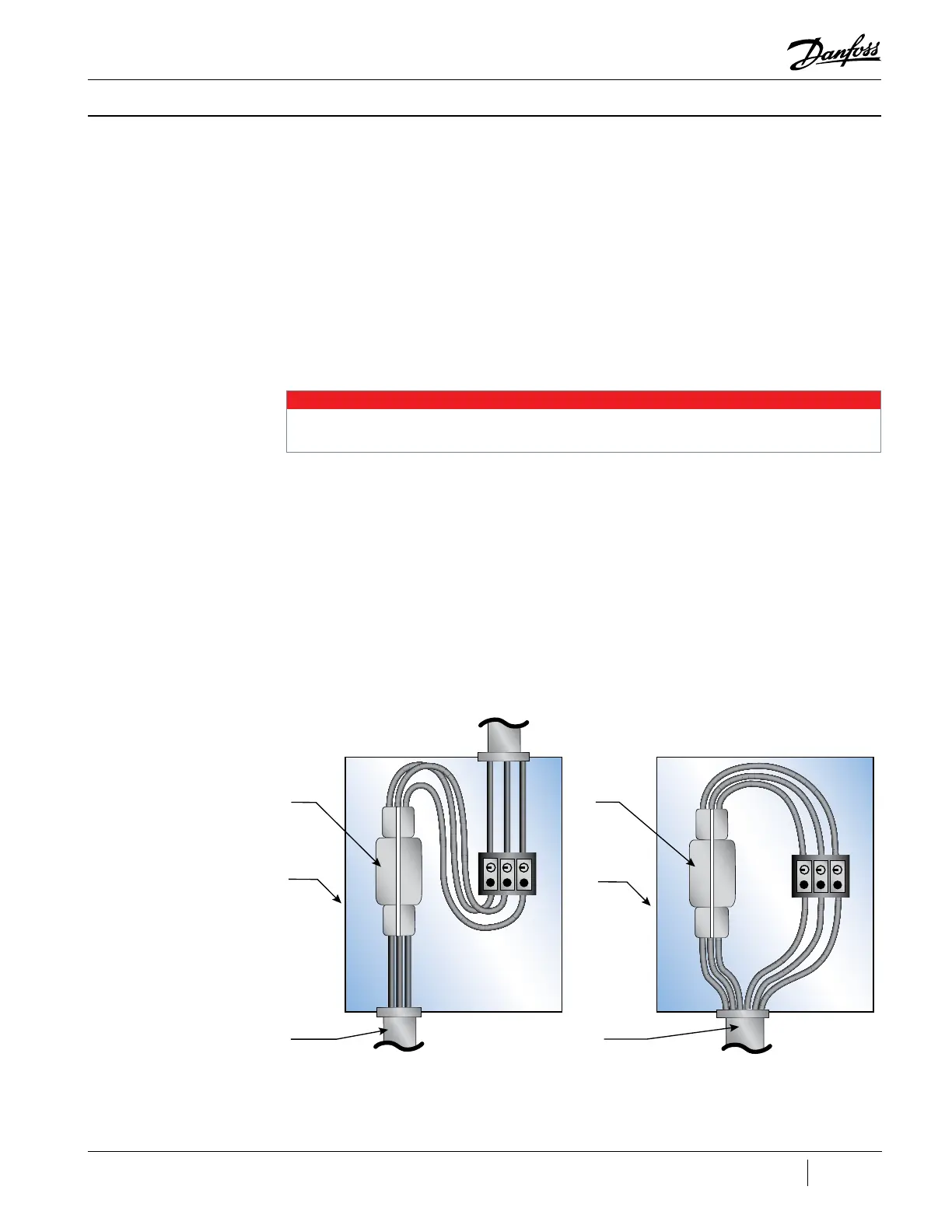

Figure B-1 Interconnection Layout
NOTE
A short, heavy, stranded conductor from the filter chassis to the main ground bus is recommended for top performance.
A battery braid, litz wire, or flexible welding cable with many fine strands is recommended for best grounding performance.
To Line
Filter
Enclosure
Conduit
To Line and Load
Conduit
Filter
To Load
CORRECT
Interconnection
Layout
INCORRECT
Interconnection
Layout
