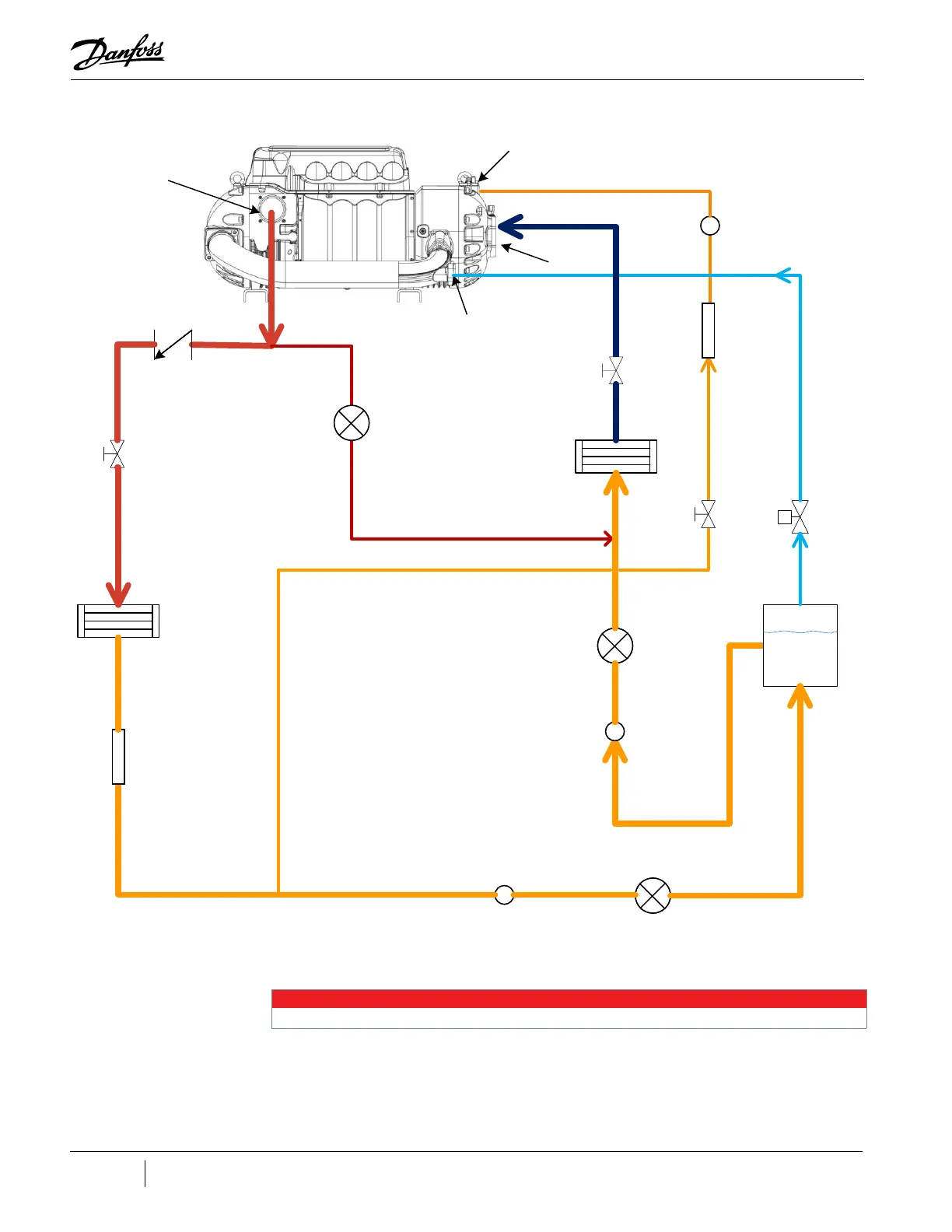

Figure 14-10 TTH/TGH Piping Schematic with Required Economizer (Flash Tank) and Vapor Line Solenoid

Motor Cooling

Port

Suction

Port

Economizer

Port

Discharge Port

Sight

Glass

Sight

Glass

Filter/

Drier

Filter/

Drier

Condenser with

Subcooler

Filter/

Drier

Filter/

Drier

Filter/

Drier

Expansion

Valv e

Expansion

Valv e

Sight

Glass

Sight

Glass

Check

Valv e

Staging

Valv e

Solenoid

Valv e

Solenoid

Valv e

Economizer

Tank

Evaporator

Expansion

Valv e

Expansion

Valv e

Sight

Glass

Sight

Glass

NOTE

*Service valves are optional.
