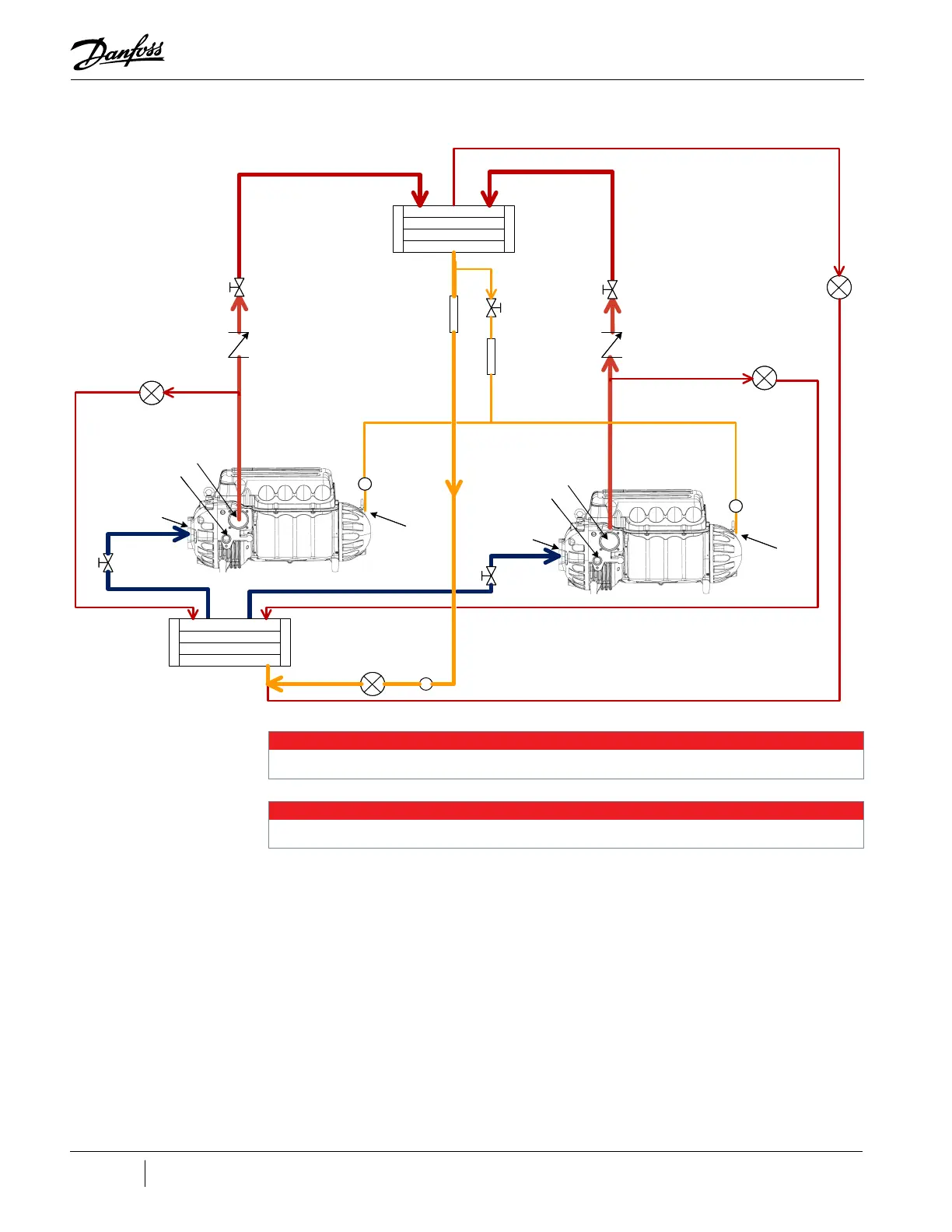

Figure 14-8 Multiple Compressors Single Circuit Piping Schematic

NOTE

Contact Danfoss LLC for compressor selection and further technical advice.

Motor Cooling

Port

Suction

Port

Economizer

Port

Discharge Port

Motor Cooling

Port

Suction

Port

Economizer

Port

Discharge Port

Motor Cooling

Port

(with integral

strainer)

Suction

Port

Economizer

Port

Discharge Port

Motor Cooling

Port

(with integral

strainer)

Suction

Port

Economizer

Port

Discharge Port

Sight

Glas s

Sight

Glas s

Filter/

Dr ier

Filter/

Dr ier

EXV

Sig ht

Glass

Staging

Valve

Staging

Valve

Staging

Valve

Staging

Valve

Sight

Glass

Sight

Glass

Check

Valv e

Check

Valve

Load

Balance

Valve

Condenser with Subcooler

Evaporator

Filter/

Dr ier

Filter/

Dr ier

(optional)

NOTE

*Service valves are optional.
