Chapter 16.0 Physical Data
This section contains data relative to compressor mounting, service clearance, and piping
connections.
Table 16-1 Physical Dimensions
Model Length Width Height
Shipping
Weight
Compressor Weight
Including I/O Cable
and Mounting
Bumpers Kg (lb W/O
Shipping Material)
Compressor
Total Weight Kg
(lb W/O Shipping
Material)
TTS300
TGS230
31.02"
(788mm)
20.4"
(518mm)
19.17"
(487mm)
296 lbs (134 kg) 125.6 kg (277 lbs) 123.4 kg (272 lbs)
TTS350
TGS310
TGS490
31.02"
(788mm)
20.4"
(518mm)
19.17"
(487mm)
315 lbs (143 kg) 134.3 kg (296 lbs) 132 kg (291 lbs)
TTS400
TGS390
31.02"
(788mm)
20.4"
(518mm)
19.17"
(487mm)
312 lbs (142 kg) 132.9 kg (293 lbs) 130.6 kg (288 lbs)
TTS700
TGS520
31.02"
(788mm)
20.4"
(518mm)
19.17"
(487mm)
318 lbs (144 kg) 135.6 kg (299 lbs) 133.4 kg (294 lbs)
TTH375
TGH285
36.7"
(932mm)
23.2"
(590mm)
19.17" (487mm) 400 lbs (181 kg) 166 kg (366 lbs) 163.7 kg (361 lbs)
16.1 Clearance
Adequate clearance around the compressor is essential to facilitate maintenance and service. Removal
of the compressor top and service-side covers requires a minimum clearance of 24” (600mm) and 16”
(406mm), respectively.
NOTE
If insulators are used at the four (4) mounting base points, the overall height of the compressor will change. Be sure to measure
accordingly based on the insulator used.

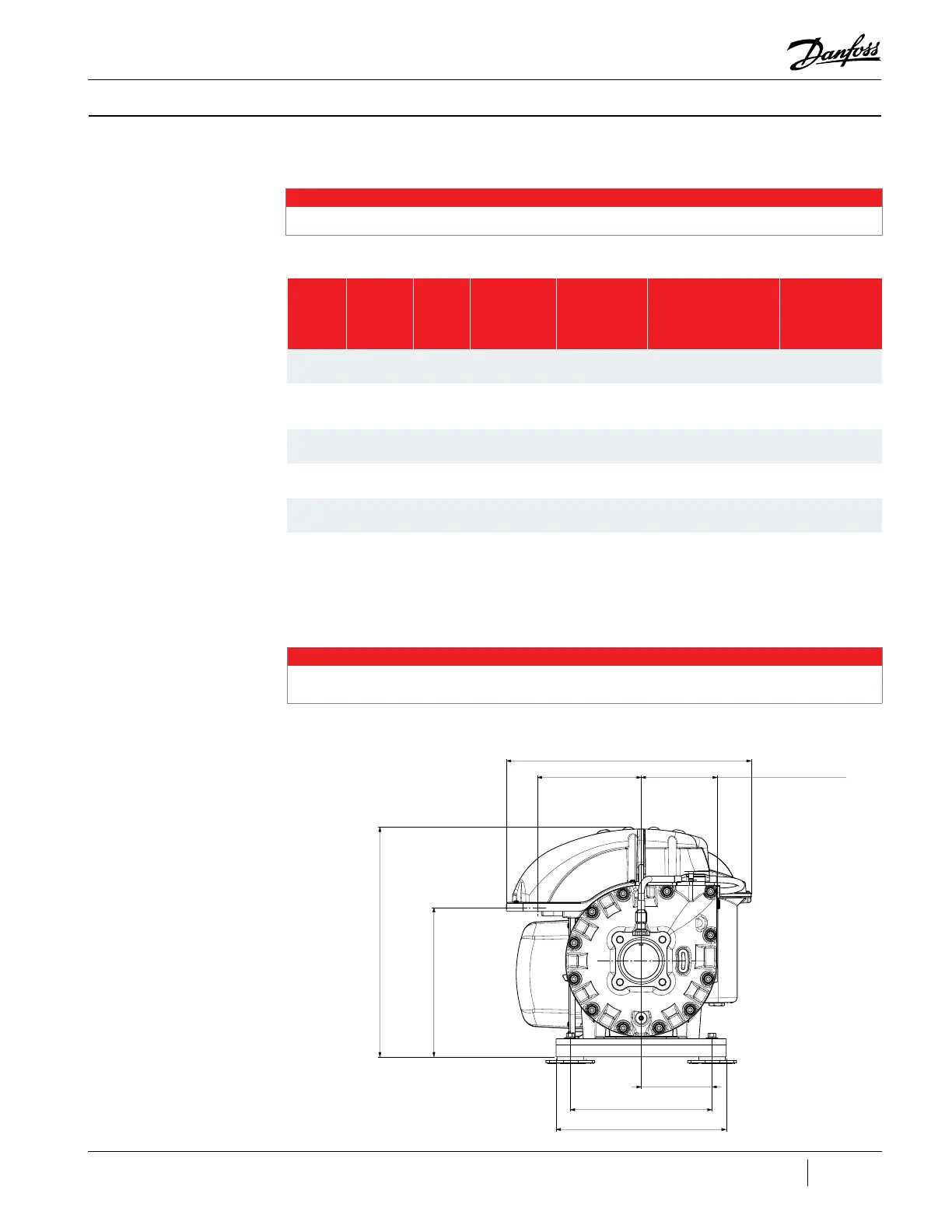

Figure 16-1 Suction View All Models (Excluding TTH/TGH Compressors)
NOTE
The dimensions in the following figures show measurements in imperial with metric in parenthesis.
518 (20.4”)
161.3 (6.35”)
220 (8.66”)
150 (5.9”)
300 (11.81”)
360 (14.17”)
487.66 - (19.2")
316 (12.44”)
O-RING GROOVE
O.D. 98.4 (3.87")
WIDTH 4.1 (0.16")
I.D. 90.2 (3.55")
