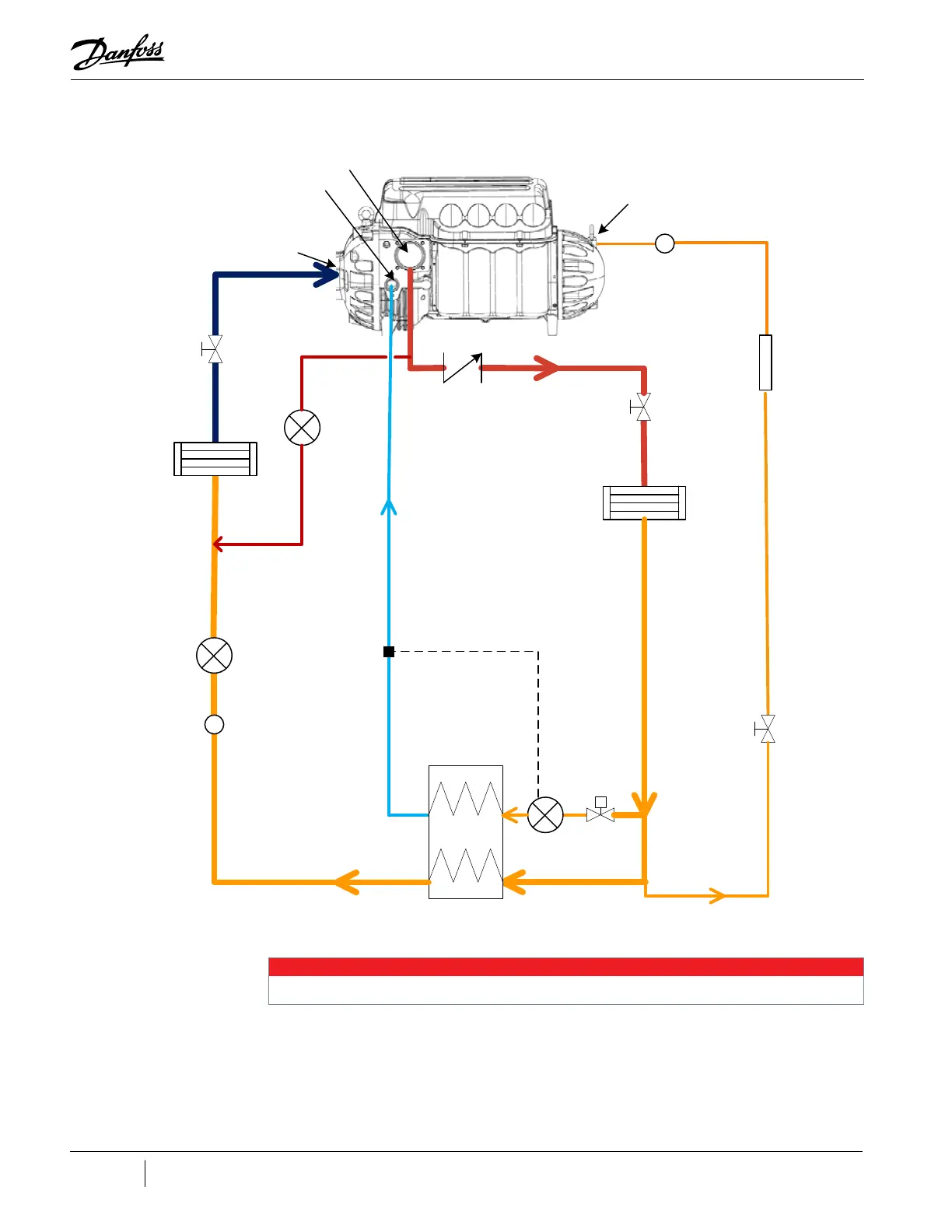

Figure 14-4 Typical Refrigeration Piping Schematic With Closed Type Economizer



MotorCooling

Port

Suction

Port

Economizer

Port

DischargePort

Sight

Glass

Filter/

Drier

Evaporator



Sight

Glass



Expansion

Valve



Condenserwith

Subcooler



Solenoid

Valve

Expansion

Valve

Check

Valve

Staging

Valve

NOTE

*Service valves are optional.
