Danfoss Turbocor Twin-Turbine TTS Series User Manual

18 of 114
M-AP-001-EN Rev. Q

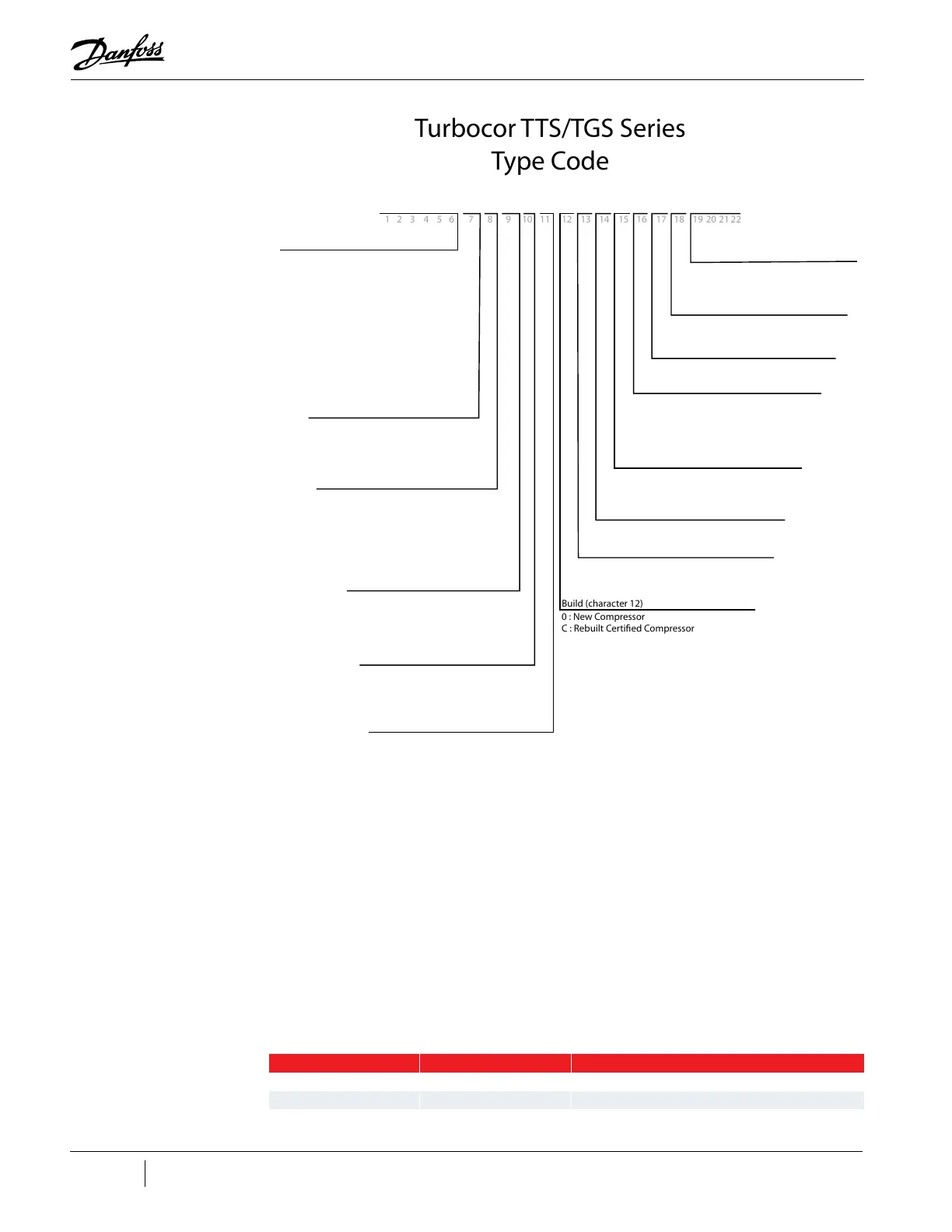

Figure 2-2 Compressor Nomenclature
2.2 Refrigerant Type
The TTS/TTH series compressors are totally oil-free and optimized for use with refrigerant R134a and R513A.
2.2.1 TGS/TGH Series
Turbocor compressors are designed to be applied only with the specific refrigerants as listed in "Table
2-1 Refrigerant Used with Turbocor Compressors". The ANSI/ASHRAE 34 Standard (Designation and
Safety Classification of Refrigerants) classification should be taken into account when designing and
applying Turbocor compressors. We also strongly recommend following the current ANSI/ASHRAE
Standard 15 (Safety Standard for Refrigeration Systems) or other applicable local standards for the
mechanical room design and application of all equipment using Turbocor compressors.
Table 2-1 Refrigerant Used with Turbocor Compressors
TTS300 G E S 1 S 0 1 0 X 0 X X S123
Major Revision (character 7)
E: Major Revision E
F : Major Revision F
G : Major Revision G
H: Major Revision H
Voltage Code (character 8)
E : 380V/50Hz
D : 380V/60Hz
H : 400V/50Hz
J : 400V/60Hz
G : 460V/60Hz
F : 575V/60Hz
Application (character 9)
S : Standard Application
M : Medium Temperature Application
J : Standard Temp KHK Listed
K : Medium Temp KHK Listed
Mains Plate Size (character 10)
1 : Mains Plate 2.00”
2 : Mains Plate 2.48”
3 : Mains Plate 3.00”
4 : Mains Plate 3.50”
I/O Board Option (character 11)
S : I/O Board included with 5m cable
M : No I/O Board, 5m cable included
Software (character 19-22)
S123 : Software Revision
Future Option (character 18)
X : Reserved
Future Option (character 17)
X : Reserved
Accessories Configuration (character 16)
0 : No accessories
Customer Engraved Nameplate (character 15)
X : No CPN (Standard)
Y : CPN on Nameplate
Customer Specific Configuration (character 14)
0 : Gen Covers/Plate, EN/FR/CH
Factory Type (character 13)
1 : TLH Factory (CE Rated)
2 : HYN Factory (CH Rated)
3 : TLH Factory (NC Rated)
Build (character 12)
0 : New Compressor
C : Rebuilt Certified Compressor
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22
Turbocor TTS/TGS Series
Type Code
Product Series and Capacity (characters 1-6)
TTS300 : TT Series 300 Aero Config
TTS350 : TT Series 350 Aero Config
TTS400 : TT Series 400 Aero Config
TTS500 : TT Series 500 Aero Config
TTS700 : TT Series 700 Aero Config
TGS230 : TG Series 230 Aero Config
TGS310 : TG Series 310 Aero Config
TGS390 : TG Series 390 Aero Config
TGS490 : TG Series 490 Areo Config
TGS520 : TG Series 520 Aero Config
TTH375 : TT High Lift Series 375 Aero Config
TGH285 : TG High Lift Series 285 Aero Config
Compressor Series Refrigerants ASHRAE/ANSI Standard 34 Classification
TTS/TTH R134a, R513A A1
TGS/TGH R515B, R1234ze(E) A1, A2L
