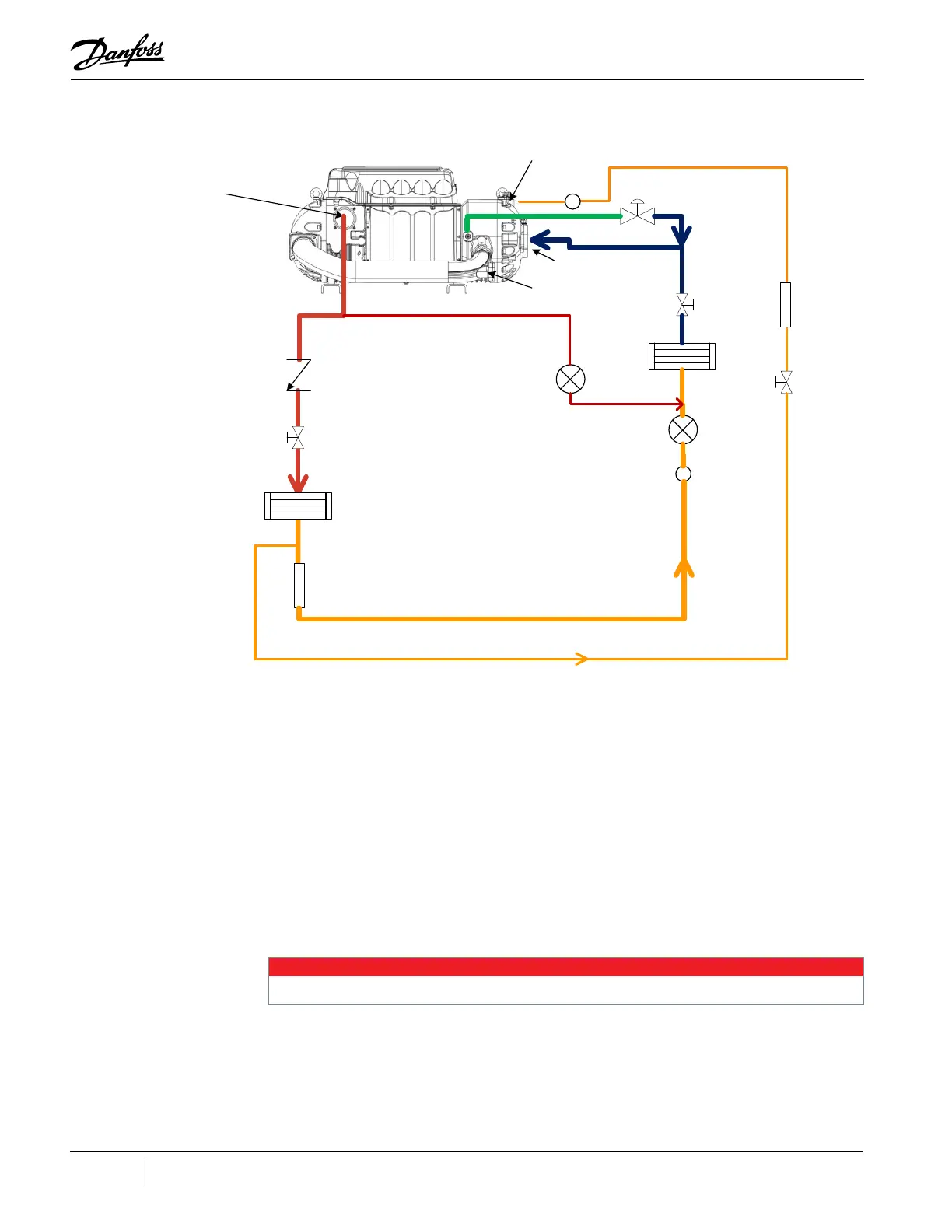

Figure 14-6 Typical Refrigeration Piping Schematic Using Motor-Cooling Pressure Regulating Valve (TTH/TGH Medium

Temperature Compressors Only)



MotorCooling

Port

Suction

Port

Economizer

Port

DischargePort



Sight

Glass

Filter/

Drier



Condenserwith

Subcooler

Pressure

Regulating

Valve

Filter/

Drier

Check

Valve

Staging

Valve

Evaporator

Expansion

Valve

Sight

Glass

NOTE

*Service valves are optional.
