To use the mounting bracket, rst attach it to the oor by sliding the edge of the cabinet pedestal under the mounting bracket.
Then secure the 2 mounting holes to the front base of the pedestal.
Example
e30bu147.11

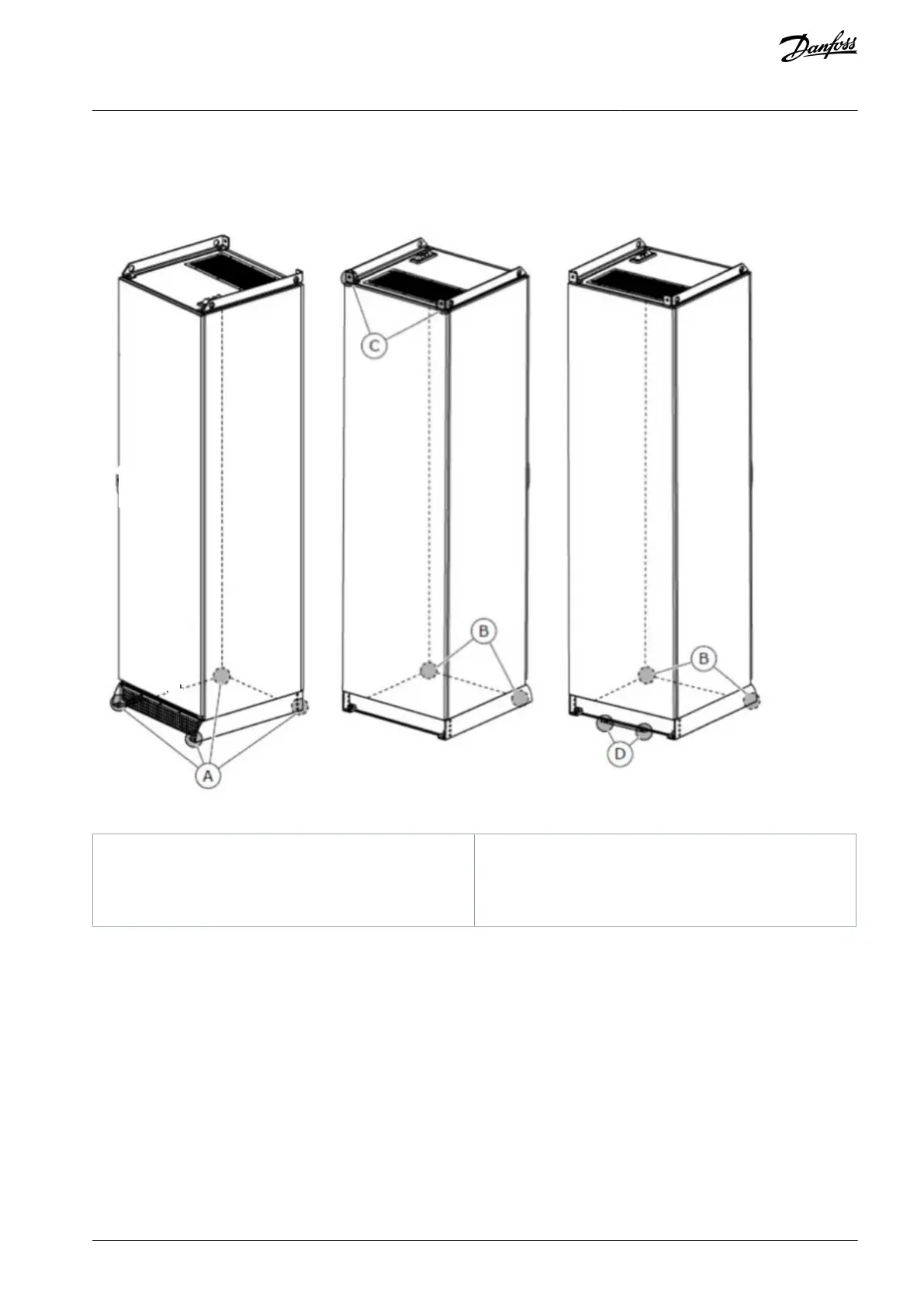

Illustration 18: Cabinet Mounting Points
A
The 4 mounting points at the base of the pedestal
B
The 2 mounting points at the front base of the ped-
estal
C
The 2 mounting points at the upper back of the cab-
inet
D
The 2 mounting points in the mounting bracket
