Danfoss VLT AQUA Drive FC 202

e30bu183.12
U
W
V
-XD4.1
-XD11.1
-XDL.1
1
2
4
3
5

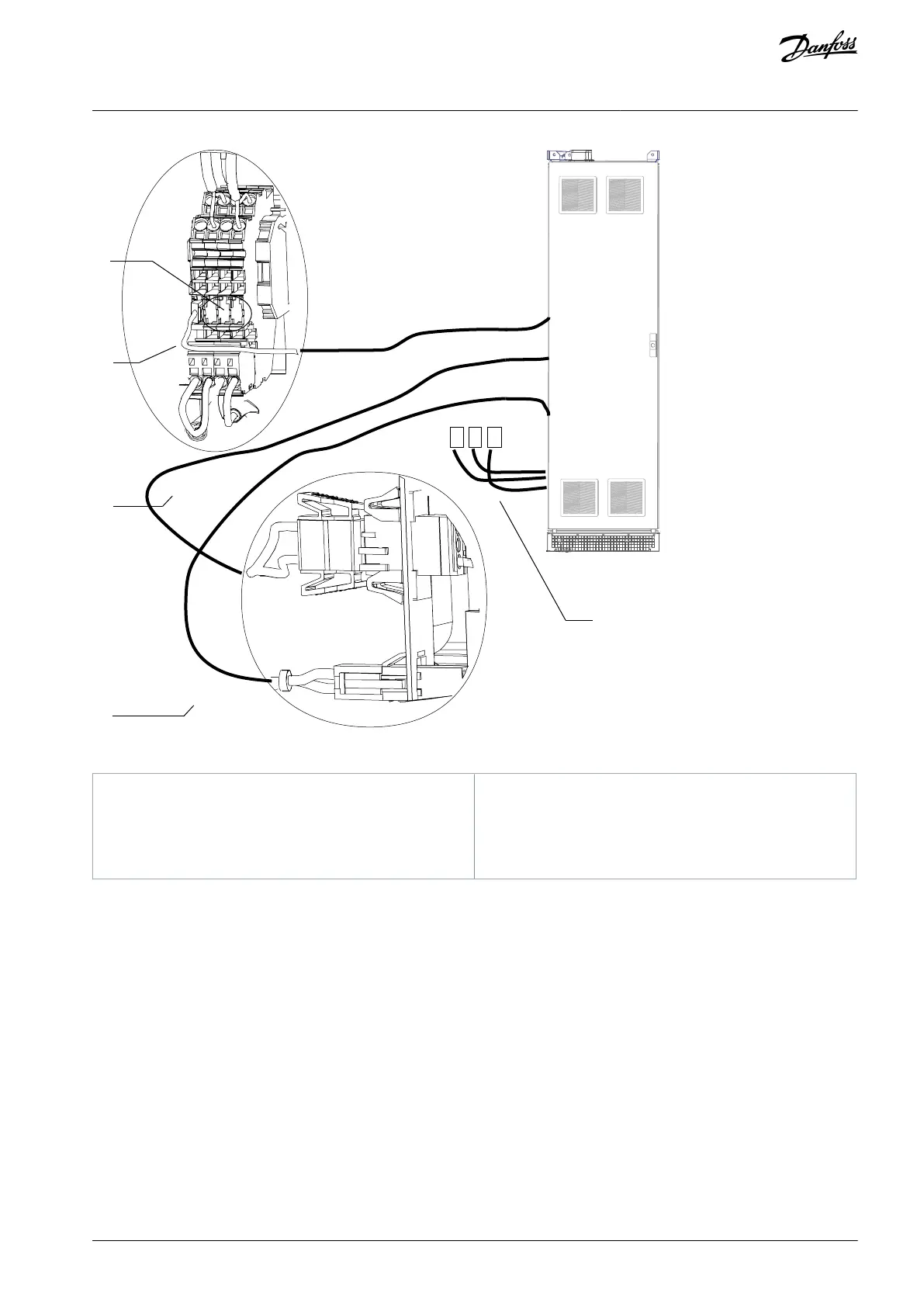

Illustration 26: Split Shipment Electrical Connections (D10h Sine-wave Cabinet)
1
Additional terminal connections
2
Thermal protection wiring harness to drive cabinet
3
DC-link harness to fan supply in drive cabinet
4
Cabinet heater supply harness to drive cabinet
5
Motor cables (U/V/W) to motor terminals (U/V/W) in
drive cabinet
