Danfoss VLT AQUA Drive FC 202

e30bu189.10
-XD1
-FCE
-QAM
1
-XD4
6 A
N
L
-EB1.4
-EB1.3
-EB1.2
-EB1.1
-XD4

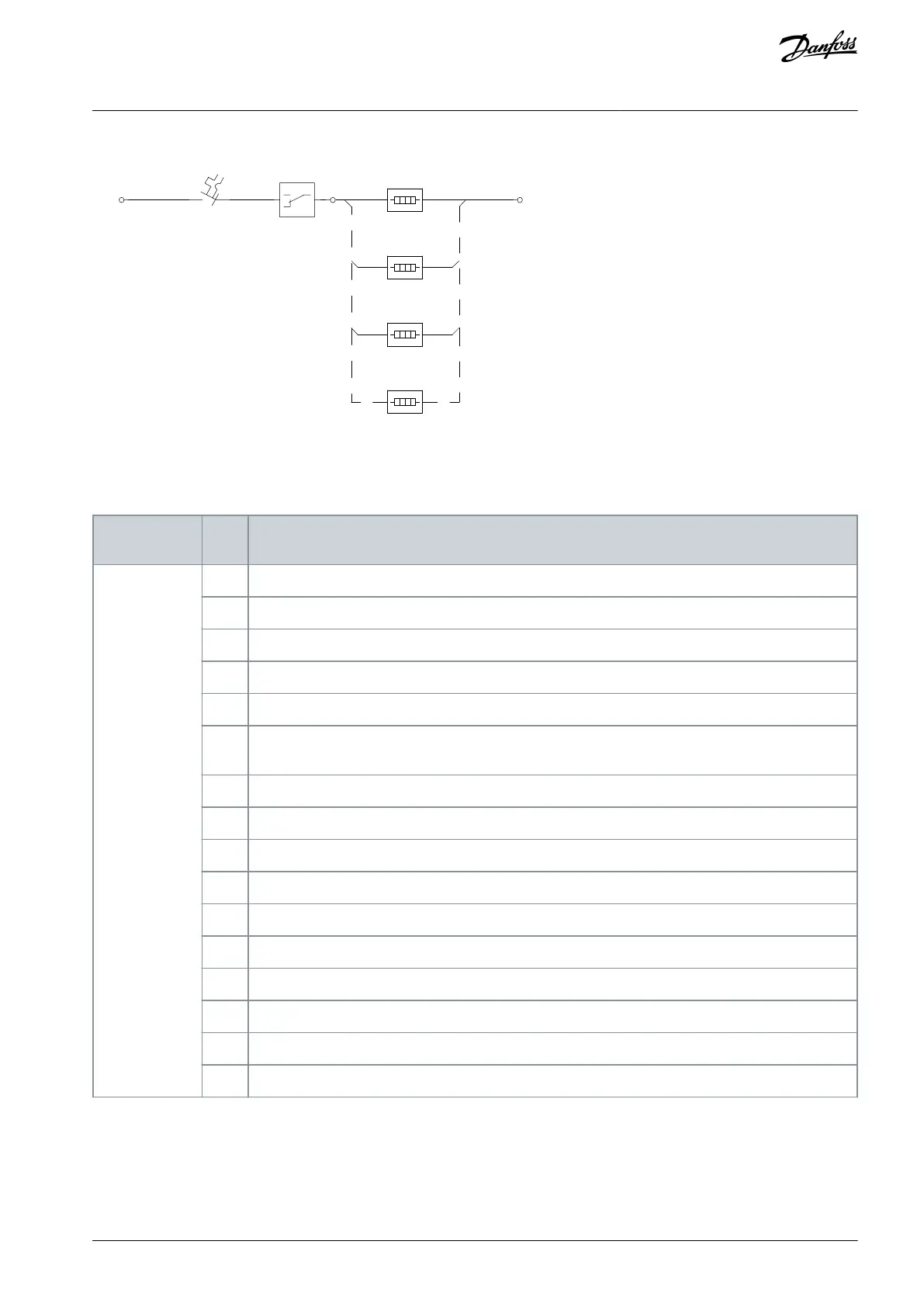

Illustration 45: Cabinet Heater Terminals
5.7.6.7 Motor Heater Control
Table 60: Auxiliary Function Type Codes
Character posi-
tion
Code
Description
23–24
A4
Motor heater control
AC
AC socket + cabinet light + motor heater control
AF
AC socket + cabinet light + extended I/O terminals + motor heater control
AH
AC socket + cabinet light + extended I/O terminals + cabinet heater + motor heater control
AJ
AC socket + cabinet light + extended I/O terminals + motor heater control + insulation monitor
AK
AC socket + cabinet light + extended I/O terminals + cabinet heater + motor heater control + insula-
tion monitor
AL
AC socket + cabinet light + cabinet heater + motor heater control
AN
AC socket + cabinet light + cabinet heater + motor heater control + insulation monitor
AO
AC socket + cabinet light + motor heater control + insulation monitor
AQ
Extended I/O terminals + motor heater control
AS
Extended I/O terminals + cabinet heater + motor heater control
AU
Extended I/O terminals + cabinet heater + motor heater control + insulation monitor
AV
Extended I/O terminals + motor heater control + insulation monitor
AW
Cabinet heater + motor heater control
AY
Cabinet heater + motor heater control + insulation monitor
AZ
Motor heater control + insulation monitor
The motor heater option provides the ability to control the supply for the motor anti-condensation heater. The 24 V DC external
supply is connected to terminal -XD1.1 in the lower part of the cabinet. When the drive is not in run state, the control relay -QAM
changes the external supply to the -XDM output terminals. When the drive is in run state, the control relay disconnects the external
supply to the motor heater. The function is disabled when MCB –FCN is open.
