Danfoss VLT AQUA Drive FC 202 Operating Manual

3.4 Interior View of D2h Drive
Illustration 3.2 shows the D2h components relevant to installation and commissioning. The D2h drive interior is similar to
that of the D4h, D7h, and D8h drives. Drives with the contactor option also contain a contactor terminal block (TB6). For the
location of TB6, see chapter 5.8 Terminal Dimensions.
2
4
10
5
12
e30bg271.10
6
7
3
11
8
9
1
1 Fieldbus top entry kit (optional) 7 Mounting hole
2 LCP (local control panel) 8 Relays 1 and 2
3 Control terminals 9 Terminal block for anti-condensation heater (optional)
4 Mains input terminals 91 (L1), 92 (L2), 93 (L3) 10 Motor output terminals 96 (U), 97 (V), 98 (W)
5 Cable clamps 11 Ground terminals for IP21/54 (Type 1/12)
6 Lifting ring 12 Ground terminals for IP20 (Chassis)

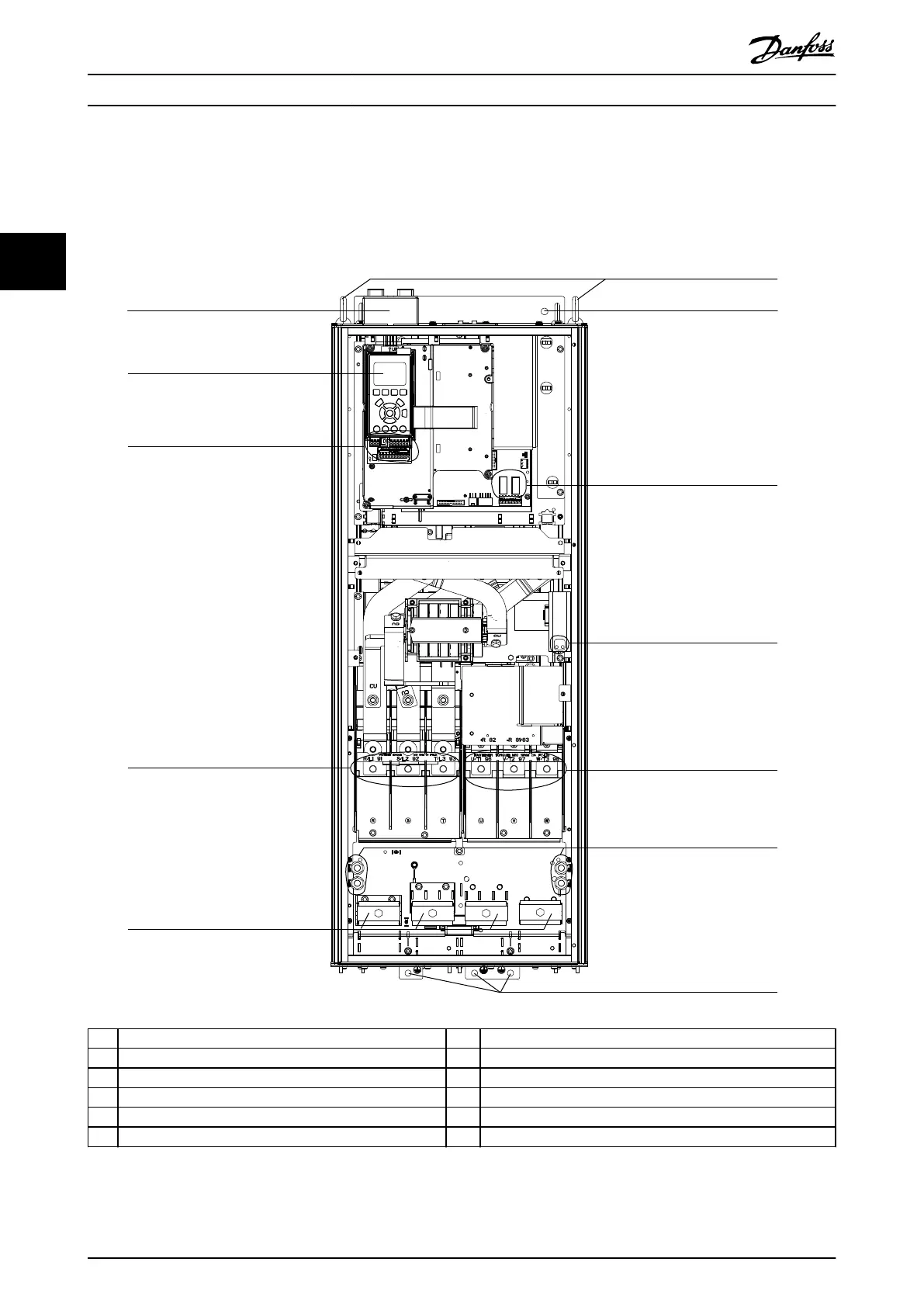

Illustration 3.2 Interior View of D2h Drive (Similar to D4h/D7h/D8h)
Product Overview VLT® AQUA Drive FC 202
10 Danfoss A/S © 09/2018 All rights reserved. MG21A502
