4 Mechanical Installation
4.1 Items Supplied
Items supplied can vary according to product congu-
ration.
•
Make sure the items supplied and the information
on the nameplate correspond to the order conr-
mation. Illustration 4.1 and Illustration 4.2 show
sample nameplates for a D-sized drive either with
or without an options cabinet.
•
Check the packaging and the drive visually for
damage caused by inappropriate handling during
shipment. File any claim for damage with the
carrier. Retain damaged parts for clarication.
OUT: 3x0-Vin 0-590Hz 177/160 A
IN: 3x380-480V 50/60Hz 171/154 A
90 kW / 125 HP, High Overload
VLT
T/C: FC-202N110T4E20H2TGC7XXSXXXXAQBXCXXXXD0
P/N: 136G7653 S/N:
123456H123
R
AQUA Drive
www.danfoss.com
e30bg627.10
ASSEMBLED IN USA
Max Tamb. 55° C/131° F w/ Output Current Derating
CHASSIS / IP20 Tamb. 40° C/104° F
SCCR 100 kA at UL Voltage range 380-480 V
Listed 36U0 E70524 IND. CONT. EQ.
UL Voltage range 380-480 V
CAUTION - ATTENTION:
Stored charge, wait 20 min.
Charge residuelle, attendez 20 min.
See manual for special condition / mains fuse
Voir manuel de conditions speciales / fusibles
WARNING - AVERTISSEMENT:
`
`
1
2
3
4
5
6
Danfoss A/S
6430 Nordborg
Denmark
089
OUT: 3x0-Vin 0-590Hz 212/190 A
IN: 3x380-480V 50/60Hz 204/183 A
110kW / 150 HP, Normal Overload
1 Type code
2 Part number and serial number
3 Power rating
4 Input voltage, frequency, and current
5 Output voltage, frequency, and current
6 Discharge time

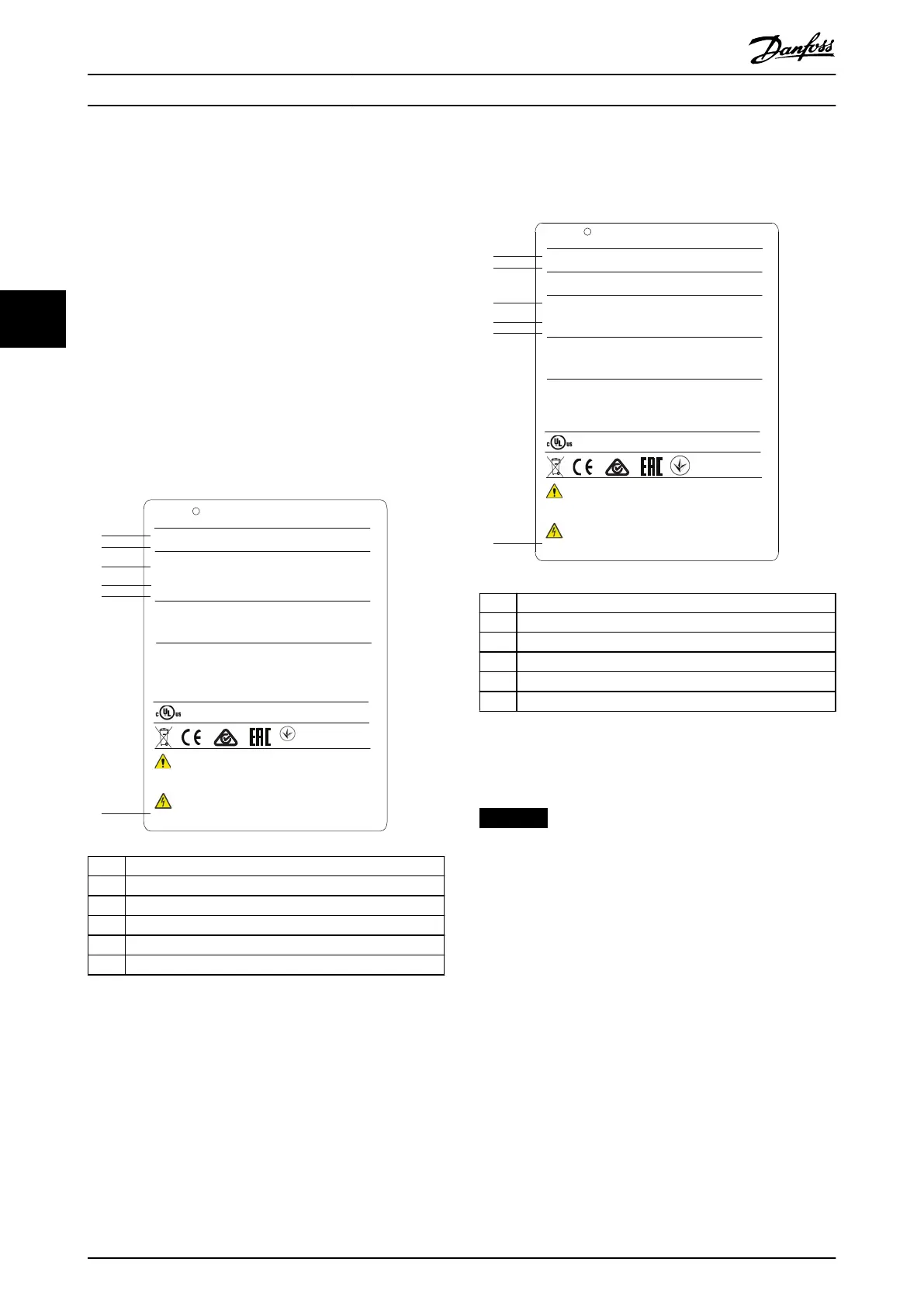

Illustration 4.1 Example Nameplate for Drive Only (D1h–D4h)
OUT: 3x0-Vin 0-590Hz 315/302 A
IN: 3x380-480V 50/60Hz 304/291 A
160 kW / 250 HP, High Overload
VLT
T/C: FC-202N200T4E5MH2XJC3XXSXXXXAXBXCXXXXDX
P/N: 136G7973 S/N:
123456H123
R
AQUA Drive
www.danfoss.com
e30bg628.10
ASSEMBLED IN USA
Max Tamb. 55
° C/131° F w/ Output Current Derating
Type 12 / IP54 Tamb. 40° C/104° F
SCCR 100 kA at UL Voltage range 380-480 V
Listed 36U0 E70524 IND. CONT. EQ.
UL Voltage range 380-480 V
CAUTION - ATTENTION:
Stored charge, wait 20 min.
Charge residuelle, attendez 20 min.
See manual for special condition / mains fuse
Voir manuel de conditions speciales / fusibles
WARNING - AVERTISSEMENT:
`
`
1
2
3
4
5
6
Danfoss A/S
6430 Nordborg
Denmark
Use the following Typecode to order Drive-only replacement:
T/C: FC-202N200T4E5MH2XJC7XXSXXXXAXBXCXXXXDX
OUT: 3x0-Vin 0-590Hz 395/361 A
IN: 3x380-480V 50/60Hz 381/348 A
200 kW / 300 HP, Normal Overload
1 Type code
2 Part number and serial number
3 Power rating
4 Input voltage, frequency, and current
5 Output voltage, frequency, and current
6 Discharge time
Illustration 4.2 Example Nameplate for Drive with Options
Cabinet (D5h-D8h)
NOTICE
LOSS OF WARRANTY
Do not remove the nameplate from the drive. Removing
the nameplate can result in loss of warranty.
