Danfoss VLT AQUA Drive FC 202 Operating Manual

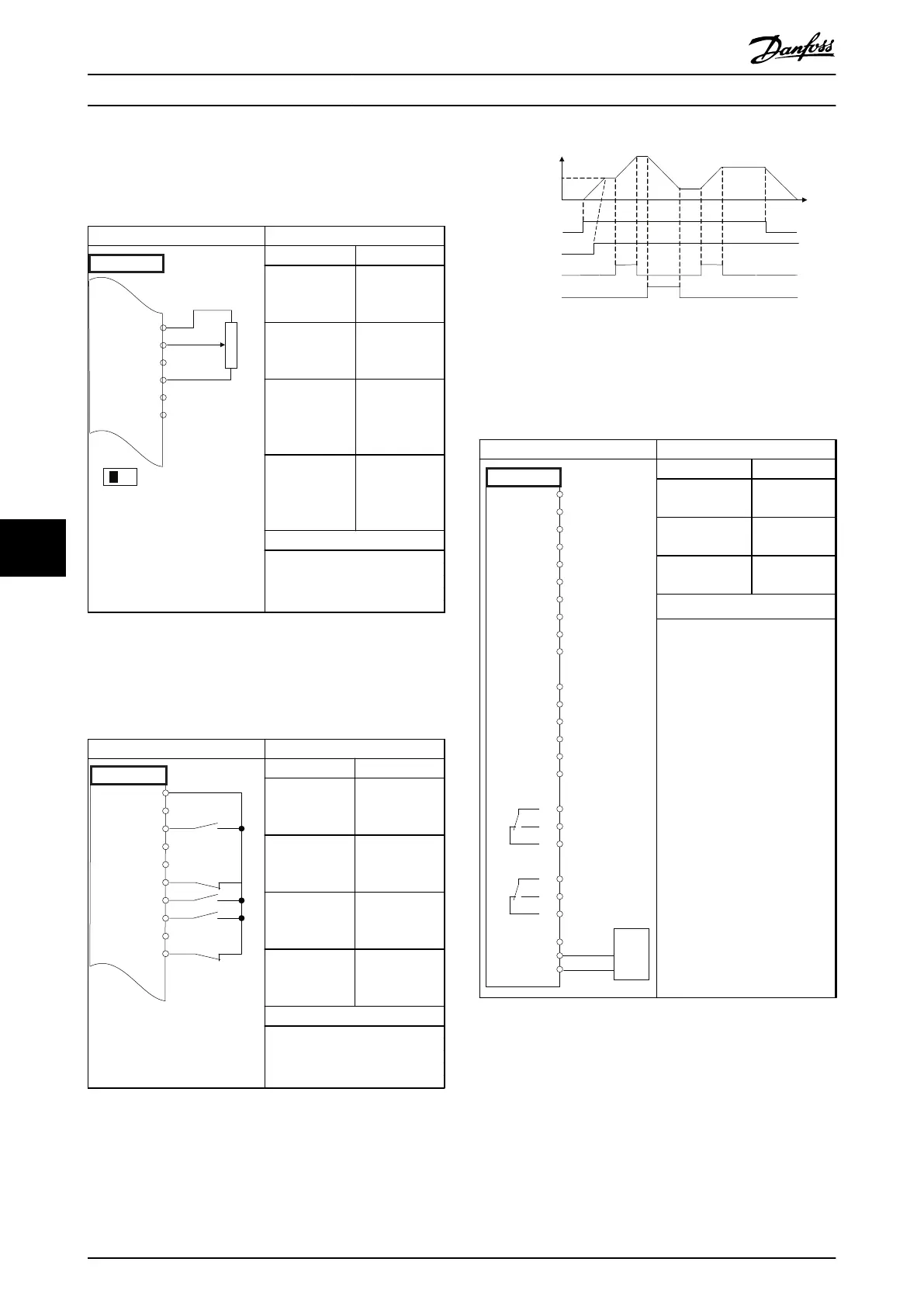

8.5 Wiring Conguration for Speed
Reference Using a Manual
Potentiometer
Parameters
+10
V
A IN
A IN
COM
A OUT
COM
50
53
54
55
42
39
A53
U - I
≈ 5kΩ
e30bb683.11
FC
Function Setting
Parameter 6-10
Terminal 53
Low Voltage
0.07 V*
Parameter 6-11
Terminal 53
High Voltage
10 V*
Parameter 6-14
Terminal 53
Low Ref./Feedb.
Value
0 RPM
Parameter 6-15
Terminal 53
High Ref./Feedb.
Value
1500 RPM
*=Default value
Notes/comments:
Table 8.9 Wiring Conguration for Speed Reference
(Using a Manual Potentiometer)
8.6
Wiring Conguration for Speed Up/
Speed Down
Parameters
FC
+24 V
+24 V
D IN
D IN
D IN
COM
D IN
D IN
D IN
D IN
12
13
18
19
20
27
29
32
33
37
e30bb804.12
Function Setting
Parameter 5-10
Terminal 18
Digital Input
[8] Start*
Parameter 5-12
Terminal 27
Digital Input
[19] Freeze
Reference
Parameter 5-13
Terminal 29
Digital Input
[21] Speed Up
Parameter 5-14
Terminal 32
Digital Input
[22] Speed
Down
*=Default value
Notes/comments:
Table 8.10 Wiring Conguration for Speed Up/Speed Down
130BB840.12
Speed
Reference
Start (18)
Freeze ref (27)
Speed up (29)
Speed down (32)
Illustration 8.3 Speed Up/Speed Down
8.7 Wiring Congurations for RS485
Network Connection
Parameters
FC
+24 V
+24 V
D IN
D IN
D IN
COM
D IN
D IN
D IN
D IN
+10
V
A IN
A IN
COM
A OUT
COM
R1R2
12
13
18
19
20
27
29
32
33
37
50
53
54
55
42
39
01
02
03
04
05
06
-
61
68
69
RS-485
+
130BB685.10
Function Setting
Parameter 8-30
Protocol
FC*
Parameter 8-31
Address
1*
Parameter 8-32
Baud Rate
9600*
*=Default value
Notes/comments:
Select protocol, address, and
baud rate in the parameters.
Table 8.11 Wiring Conguration for RS485 Network Connection
Wiring Conguration Exampl... VLT® AQUA Drive FC 202
76 Danfoss A/S © 09/2018 All rights reserved. MG21A502
