3.8 LCP Menus
3.8.1.1 Quick Menus
The Quick Menus mode provides a list of menus used to
congure and operate the drive. Select Quick Menus by
pressing the [Quick Menu] key. The resulting readout
appears on the LCP display.

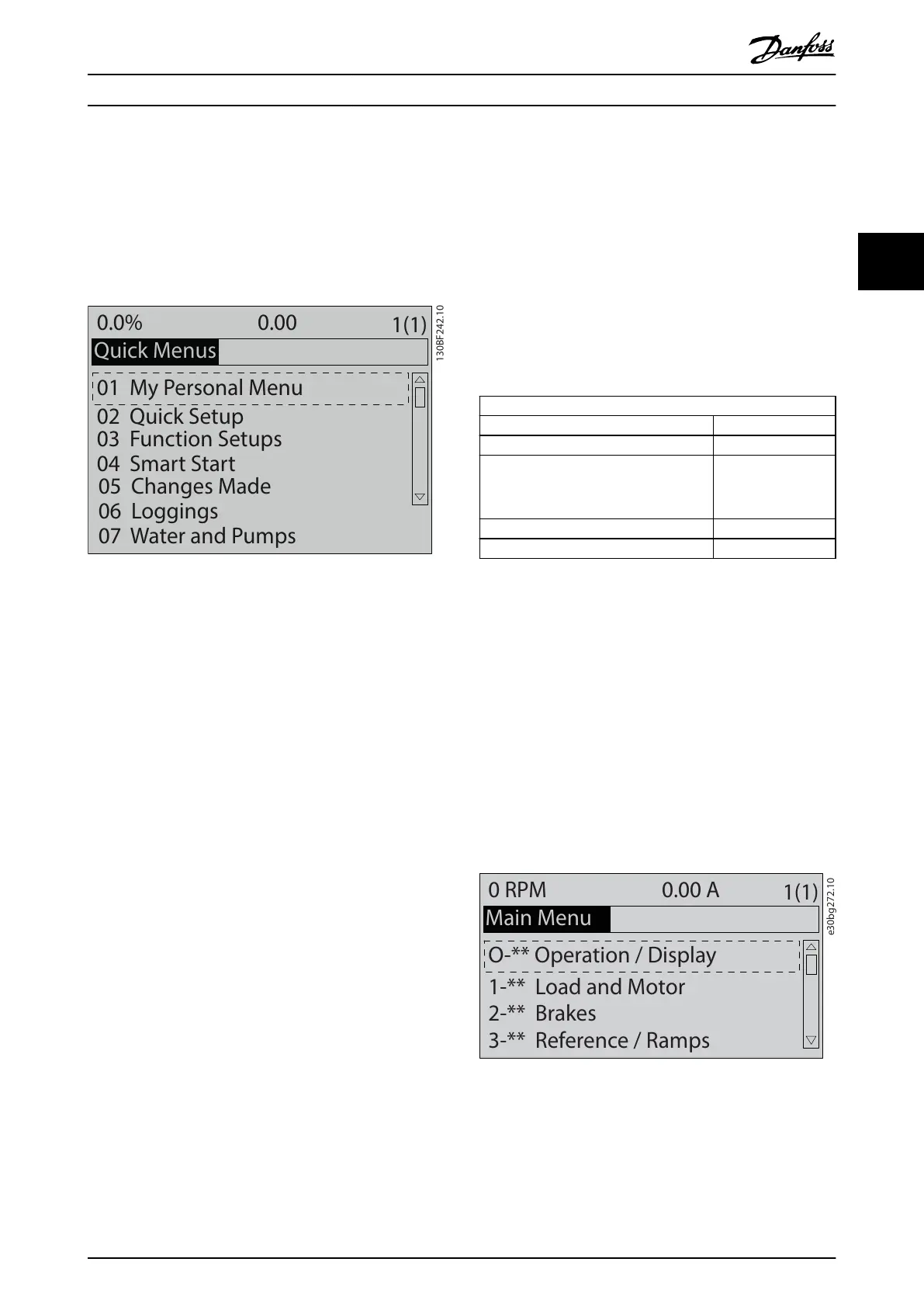

Illustration 3.6 Quick Menu View
3.8.1.2 Q1 My Personal Menu
Use My Personal Menu to determine what is shown in the
display area. Refer to chapter 3.7 Local Control Panel (LCP).
This menu can also show up to 50 pre-programmed
parameters. These 50 parameters are manually entered
using parameter 0-25 My Personal Menu.
3.8.1.3 Q2 Quick Setup
The parameters found in Q2 Quick Setup contain basic
system and motor data that are always necessary for
conguring the drive. See chapter 7.2.3 Entering System
Information for the set-up procedures.
3.8.1.4 Q4 Smart Setup
Q4 Smart Setup guides the user through typical parameter
settings used to congure 1 of the following 3
applications:
•
Mechanical brake.
•
Conveyor.
•
Pump/fan.
The [Info] key can be used to display help information for
various selections, settings, and messages.
3.8.1.5 Q5 Changes Made
Select Q5 Changes Made for information about:
•
The 10 most recent changes.
•
Changes made from default setting.
3.8.1.6 Q6 Loggings
Use Q6 Loggings for fault nding. To get information about
the display line readout, select Loggings. The information is
shown as graphs. Only parameters selected in
parameter 0-20 Display Line 1.1 Small through
parameter 0-24 Display Line 3 Large can be viewed. It is
possible to store up to 120 samples in the memory for
later reference.
Q6 Loggings
Parameter 0-20 Display Line 1.1 Small Reference [Unit]
Parameter 0-21 Display Line 1.2 Small Analog Input 53 [V]
Parameter 0-22 Display Line 1.3 Small Motor current [A]
Parameter 0-23 Display Line 2 Large Frequency [Hz]
Parameter 0-24 Display Line 3 Large Feedback [Unit]
Table 3.9 Logging Parameter Examples
3.8.1.7 Q7 Motor Setup
The parameters found in Q7 Motor Setup contain basic and
advanced motor data that are always necessary for
conguring the drive. This option also includes parameters
for encoder set-up.
3.8.1.8 Main Menu Mode
The Main Menu mode lists all the parameter groups
available to the drive. Select the Main Menu mode by
pressing the [Main Menu] key. The resulting readout
appears on the LCP display.
Illustration 3.7 Main Menu View
All parameters can be changed in the main menu. Option
cards added to the unit enable extra parameters associated
with the option device.
Product Overview Operating Guide
MG21A502 Danfoss A/S © 09/2018 All rights reserved. 15
3 3
