3.7 Local Control Panel (LCP)
The local control panel (LCP) is the combined display and keypad on the front of the drive. The term LCP refers to the
graphical LCP. A numeric local control panel (NLCP) is available as an option. The NLCP operates in a manner similar to the
LCP, but there are dierences. For details on how to use the NLCP, see the product-specic programming guide.
The LCP is used to:
•
Control the drive and motor.
•
Access drive parameters and program the drive.
•
Display operational data, drive status, and warnings.
130BF154.11
Auto
On
Reset
Hand
On
Off
Status
Quick
Menu
Main
Menu
Alarm
Log
Back
Cancel
Info
OK
Status
1(1)
0.00 A
Off Remote Stop
0.0 Hz
On
Alarm
Warn.
0.000
0.000 RPM
0.0000
A1.1
A1.2
A1.3
A2
A3
B1
B2
B4
B3
C1
C2
C3
C4
C5
D1
D2
D3
E1
E2
E3
E4

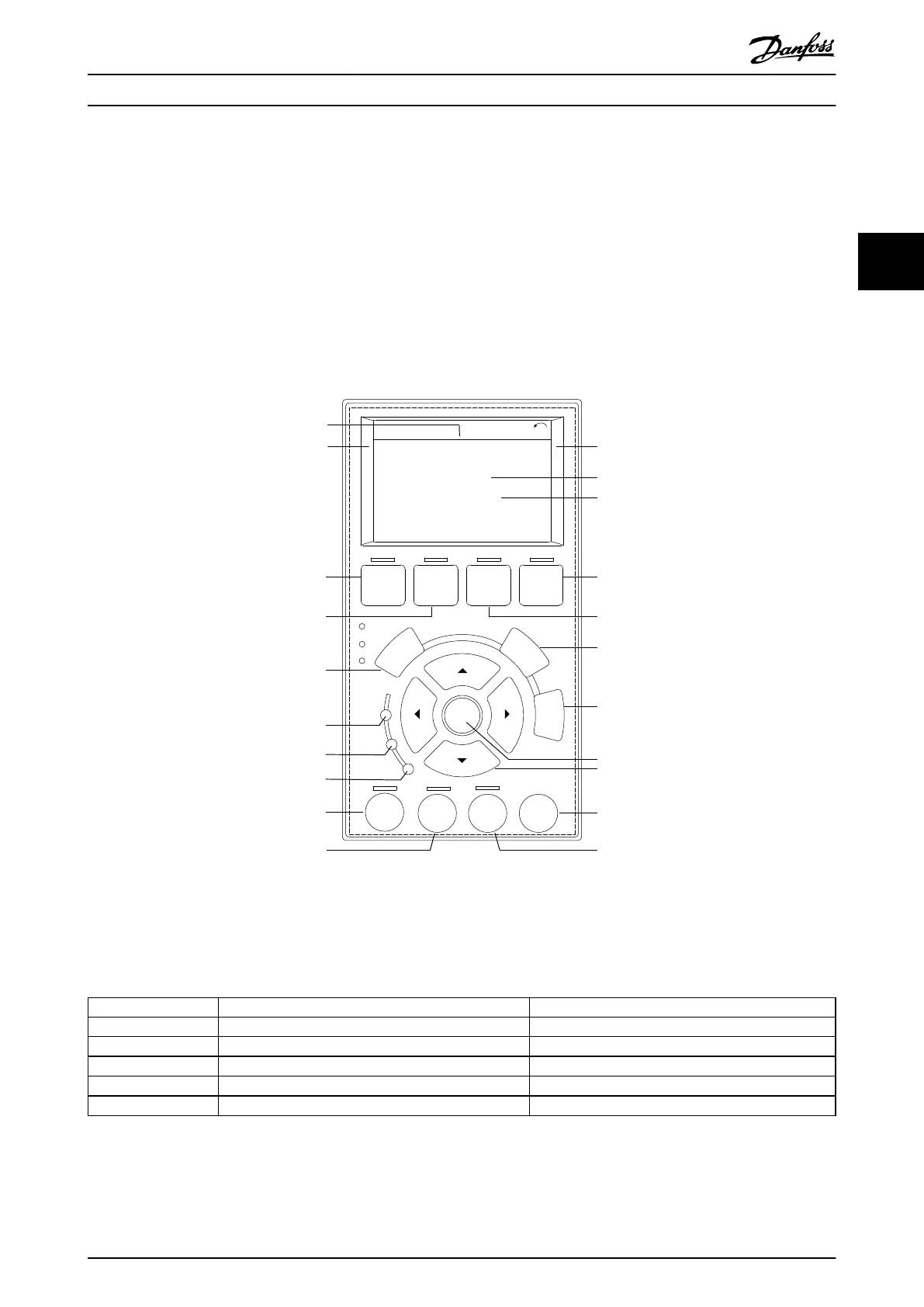

Illustration 3.5 Graphical Local Control Panel (LCP)
A. Display area
Each display readout has a parameter associated with it. See Table 3.4. The information shown on the LCP can be
customized for specic applications. Refer to chapter 3.8.1.2 Q1 My Personal Menu.
Callout Parameter number Default setting
A1.1 0-20 Reference [Unit]
A1.2 0-21 Analog input 53 [V]
A1.3 0-22 Motor current [A]
A2 0-23 Frequency [Hz]
A3 0-24 Feedback [Unit]
Table 3.4 LCP Display Area
Product Overview Operating Guide
MG21A502 Danfoss A/S © 09/2018 All rights reserved. 13
