Danfoss VLT AQUA Drive FC 202

395 (15.6)
523 (20.6)
105
130BF670.10

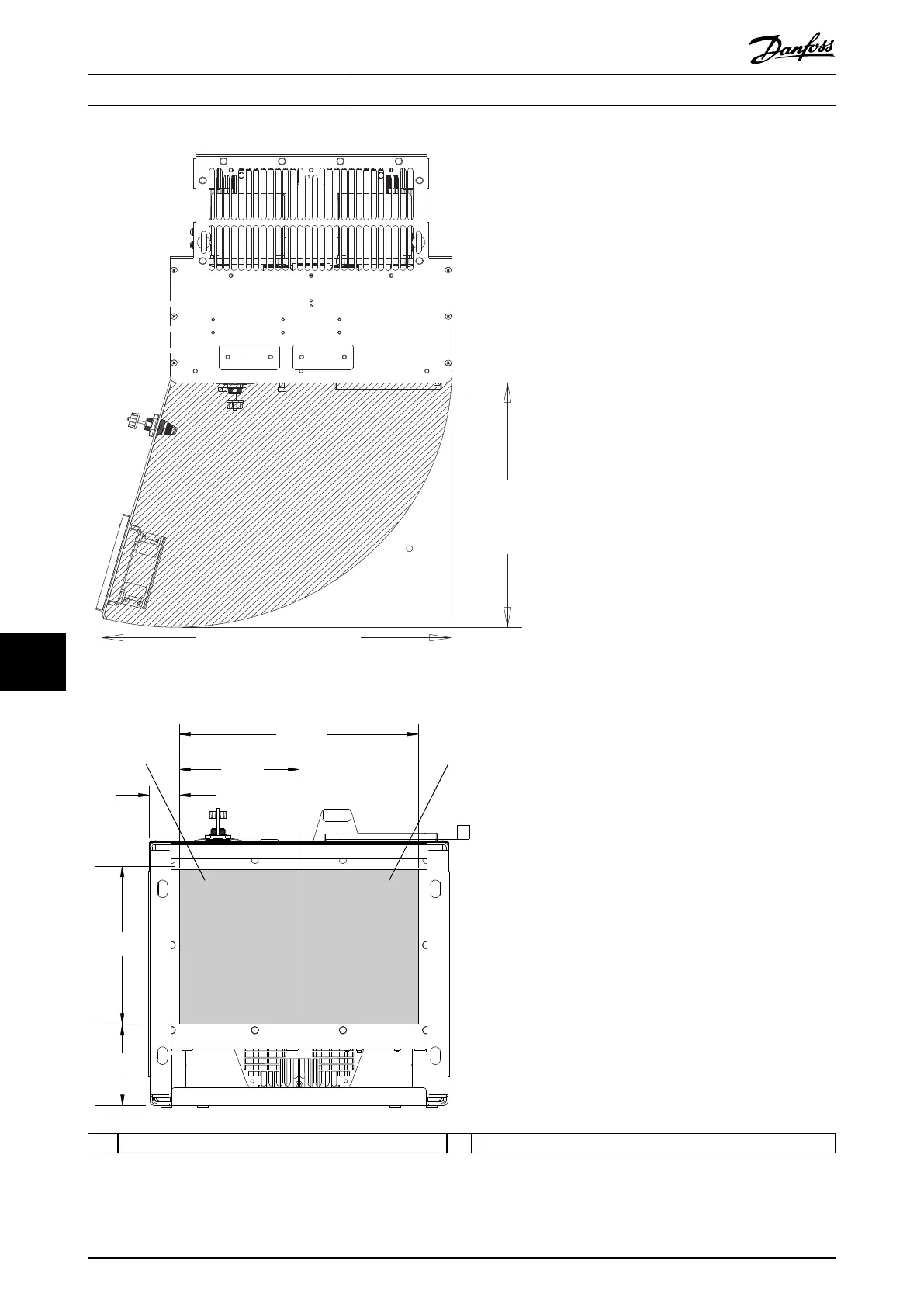

Illustration 10.35 Door Clearance for D7h
130BF610.10
222 (8.7)
115 (4.5)
337 (13.3)
169 (6.6)
43 (1.7)
-A-
1 2
1 Mains side 2 Motor side
Illustration 10.36 Gland Plate Dimensions for D7h
Specications VLT® AQUA Drive FC 202
