Danfoss VLT AQUA Drive FC 202

e30bg484.10
1
3
4
5
6
7
8
9
10
2
200 (7.9)
1 Pedestal wall spacer 6 Back ange of pedestal
2 Fastener slots 7 M5 screw (fasten through back ange)
3 Mounting ange at drive top 8 Front ange of pedestal
4 Mounting holes 9 Front cover plate of pedestal
5 M10 nuts (fasten to threaded posts) 10 M5 screw (fasten through front ange)

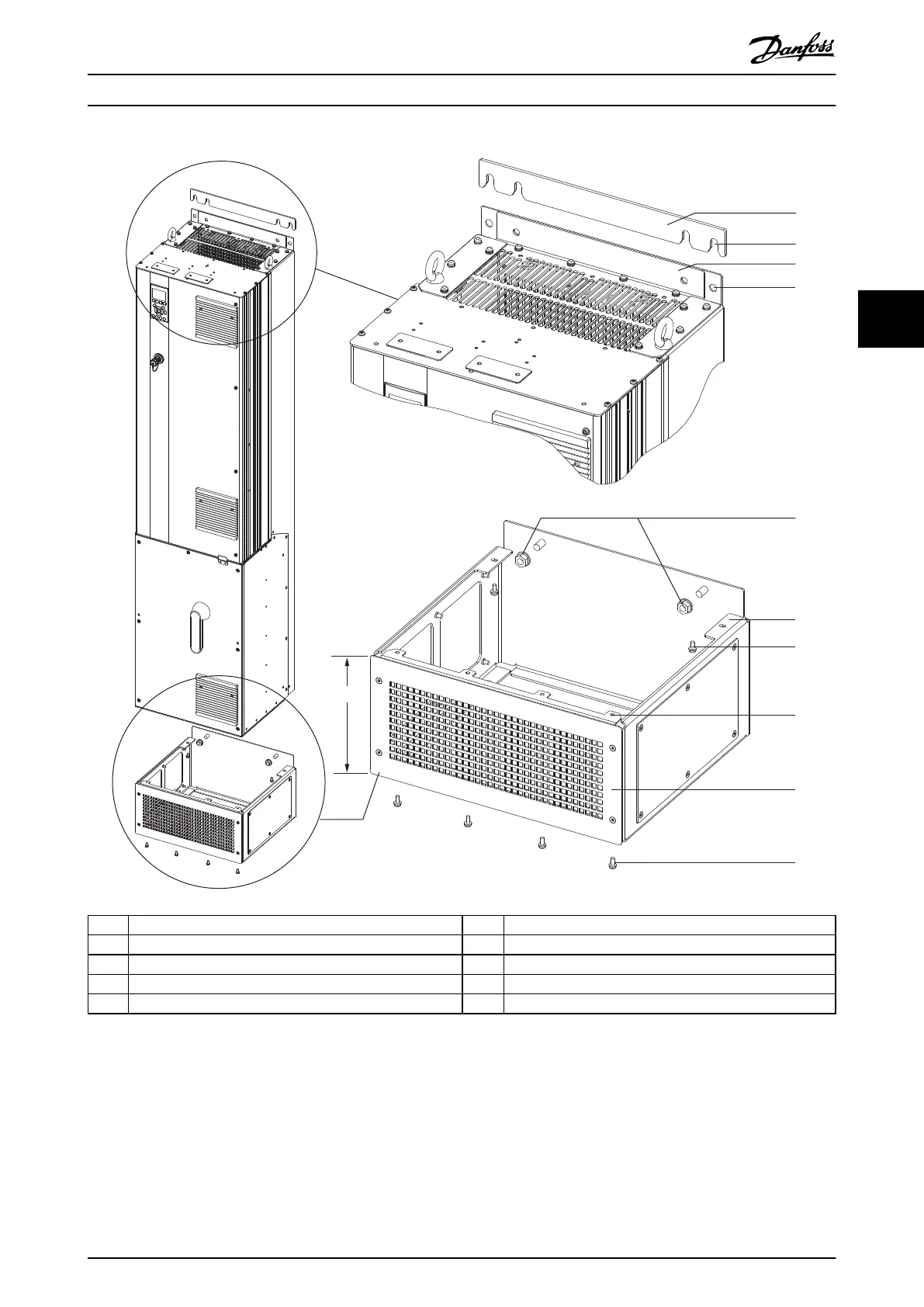

Illustration 4.6 Pedestal Installation in D7h/D8h Drives
Mechanical Installation Operating Guide
MG21A502 Danfoss A/S © 09/2018 All rights reserved. 21
4 4
