Danfoss VLT AQUA FC 202 Design Guide

•
•
•
•
•
•
•
•
•
•
directly from the LCP.
via industry-leading eldbusses.
local digital I/O or via industrial network connection.
wireless via the VLT® Wireless Control Panel LCP 103. The LCP 103 connects to the MyDrive® Connect app and enables control
from a mobile device, or via VLT® Motion Control Tool MCT 10.
Easy commissioning with SmartStart
With the SmartStart wizard, it is easy and cost-ecient to commission the drive. SmartStart is activated at the rst power-up or after
a factory reset and guides users through a series of easy steps to ensure the correct and most ecient motor control. The SmartStart
can also be started directly via the quick menu.
Power sizes, voltage ranges, and enclosure protection classes
The VLT AQUA DriveFC 202 is available in many power sizes, voltage ranges, and enclosure protection classes, making it easy to nd
the perfect drive for a given application.
Table 5: Voltage Ranges and Power Ranges
Voltage ranges [V]
Power ranges [kW (hp)]
1 x 200–240
1.1–22 (1.5–30)
1 x 380–480
7.5–37 (10–50)
3 x 200–240
0.25–160 (0.5–250)
3 x 380–480
0.37–1000 (0.5–1350)
3 x 525–600
0.75–90 (1.0–125)
3 x 525–690
11–1400 (15–1875)
Enclosure protection ratings:
IP00
IP20/Chassis
IP21/Type 1
IP54/Type 12
IP55/Type 12
IP66/Type 4X Outdoor

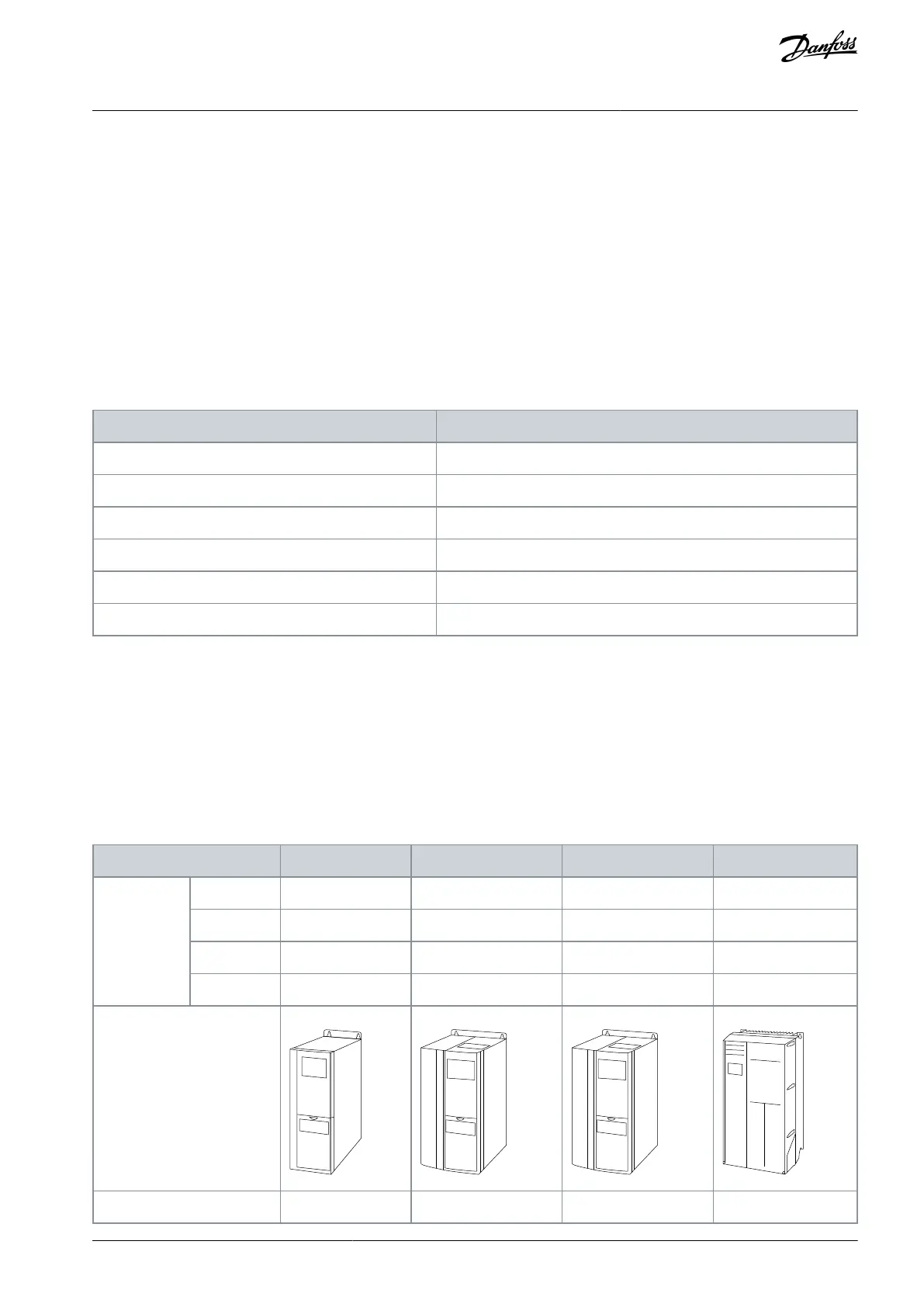

Table 6: Enclosures A1–A5: Power Sizes, Voltage Ranges, and Protection Rating
Enclosure
A2
A3
A4
A5
Power [kW]
200–240 V
0.25–2.2
3.0–3.7
0.25–2.2
0.25–3.7
380–480 V
0.37–4.0
5.5–7.5
0.37–4.0
0.37–7.5
525–600 V
–
0.75–7.5
–
0.75–7.5
525–690 V
–
1.1–7.5
–
–
e30ba809.11
e30ba810.11
e30ba810.11
e30ba811.11
IP
20/21
20/21
55/66
55/66
AJ300847815559en-000101 / 130R0337 | 19Danfoss A/S © 2020.09
Product Family Overview
VLT® AQUA Drive FC 202
Design Guide
