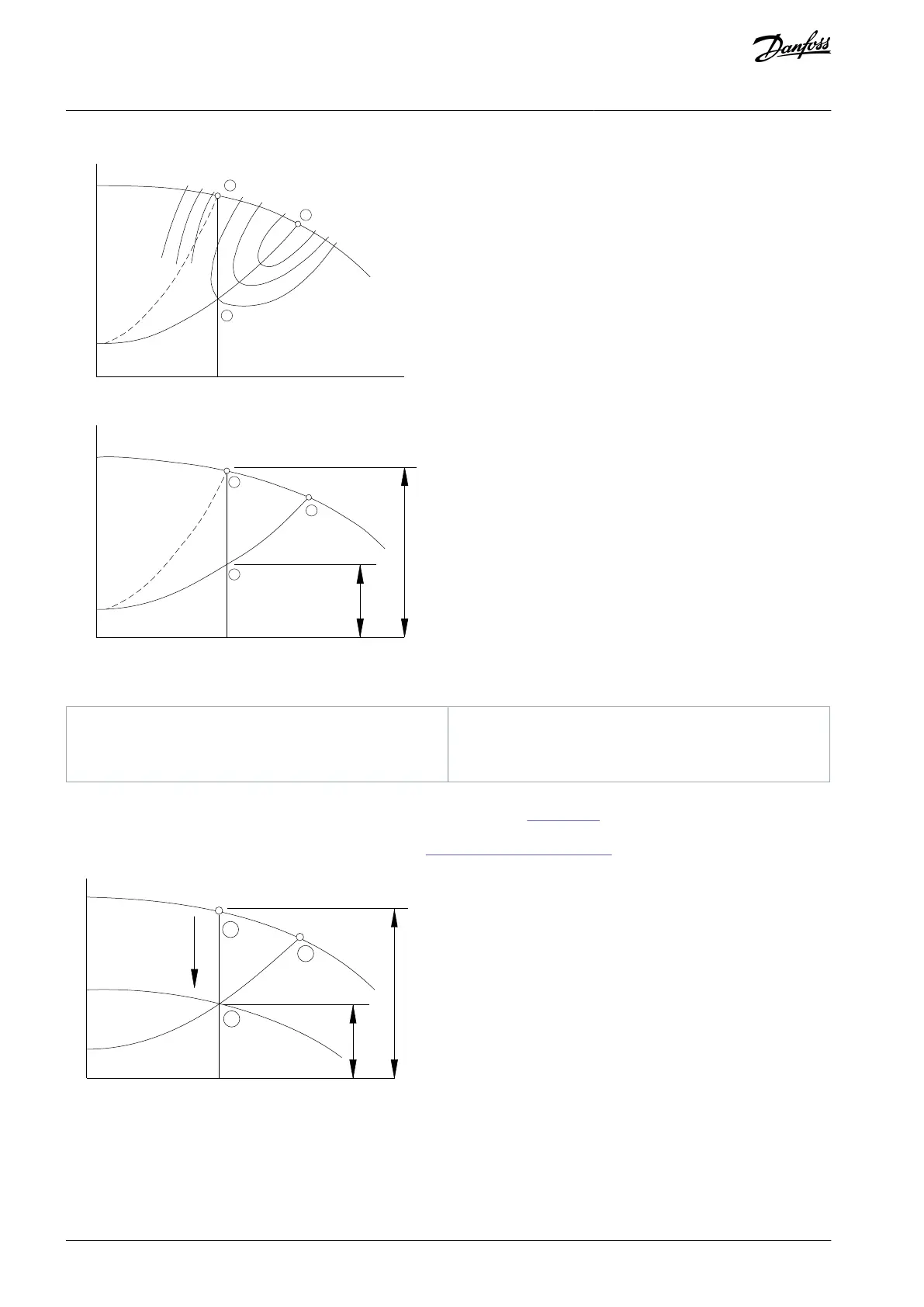

Illustration 8: Flow Reduction by Valve Control (Throttling)
1
Operating point using a throttle valve
2
Natural operating point
3
Operating point using speed control
Speed control
The same ow can be adjusted by reducing the speed of the pump as shown in
Illustration 9. Reducing the speed moved the pump
curve down. The point of operation is the new intersection point of the pump curve and the system curve (3). The energy savings
can be calculated by applying the anity laws as described in 4.3.1 Example of Energy Savings.
Flow
Head or Pressure
Pump curve
Operating
point
Natural
Operating point
system
Unthrottled
Speed
reduction
1
2
3
Hp
Hs
e30bd894.10
Illustration 9: Flow Reduction by Speed Control
