Danfoss VLT AQUA FC 202 Design Guide

Enclosure size
C1
C2
C3
C4
Height with de-coupling plate for
eldbus cables
A
–
–
630 (24.8)
800 (31.5)
Distance between mounting holes
a
648 (25.5)
739 (29.1)
521 (20.5)
631 (24.8)
Width [mm (in)]
Width of backplate
B
308 (12.1)
370 (14.6)
308 (12.1)
370 (14.6)
Width of backplate with 1 C option
B
308 (12.1)
370 (14.6)
308 (12.1)
370 (14.6)
Width of backplate with 2 C options
B
308 (12.1)
370 (14.6)
308 (12.1)
370 (14.6)
Distance between mounting holes
b
272 (10.7)
334 (13.1)
270 (10.6)
330 (13)
Depth [mm (in)]
(2)
Depth without option A/B
C
310 (12.2)
335 (13.2)
333 (13.1)
333 (13.1)
With option A/B
C
310 (12.2)
335 (13.2)
333 (13.1)
333 (13.1)
Screw holes [mm (in)]
c
12 (0.47)
12 (0.47)
–
–
d
ø19 (0.75)
ø19 (0.75)
–
–
e
ø9 (0.35)
ø9 (0.35)
8.5 (0.33)
8.5 (0.33)
f
9.8 (0.39)
9.8 (0.39)
17 (0.67)
17 (0.67)
Maximum weight [kg (lb)]
45 (99)
65 (143)
35 (77)
50 (110)
1
See
Illustration 54 and Illustration 55.
2
Depth of enclosure varies with dierent options installed.
C
a
b
e30ba648.13
f
e
B
A
a
d
e
b
c

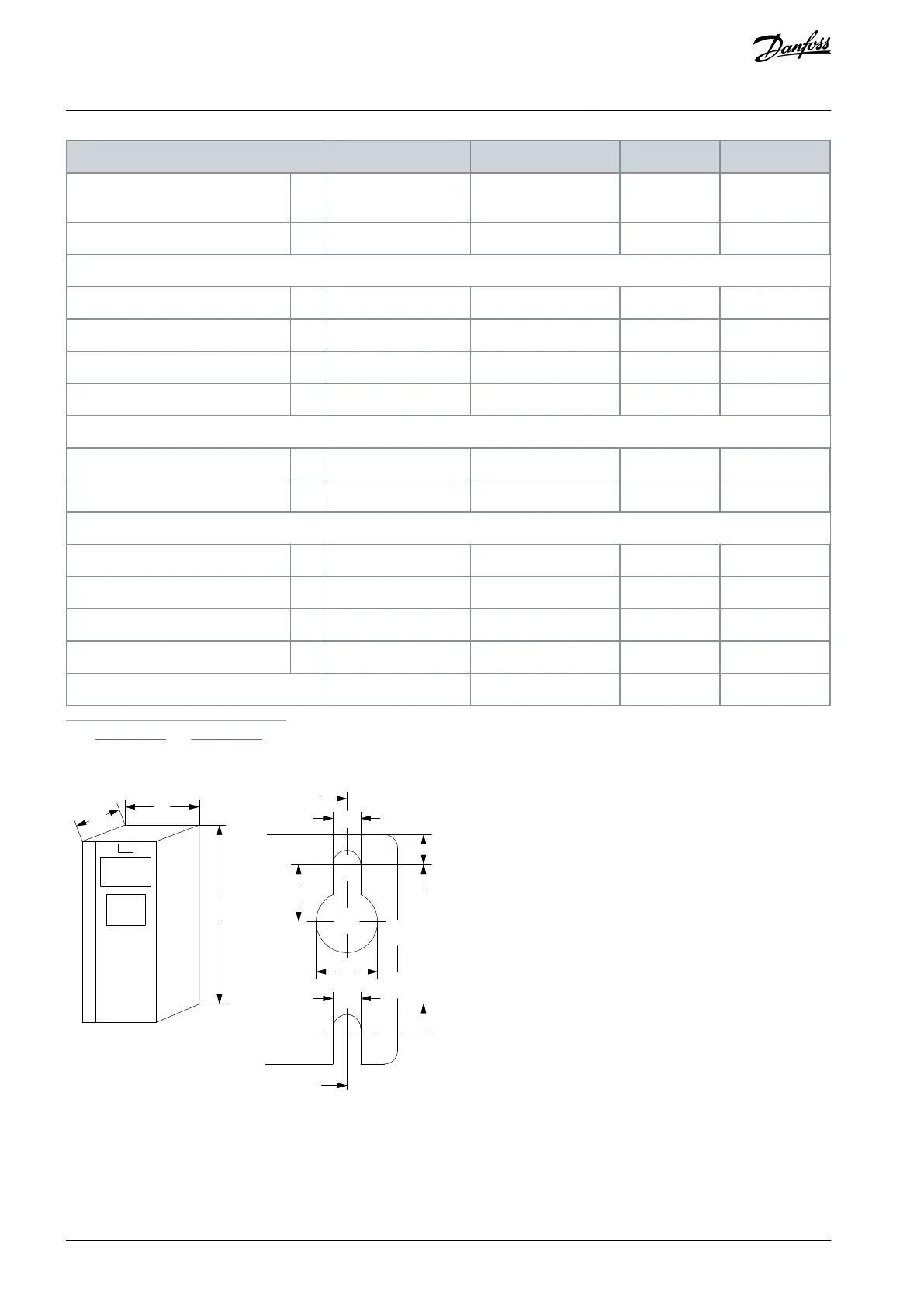

Illustration 54: Top and Bottom Mounting Holes
