How to Program
Select Changes mad e to get information about:
• the last 10 changes. Use the up/down navigation keys to scroll betw een the last 10 changed parameters.
• the changes made since default setting.
Select Loggings to get inform ation about the display line readouts. Disp lay Spe ed, Motor current, Power,
Frequency and Reference as curves. It is possible to store up to 120 samples in the memory for later reference.
" Main Menu Mode

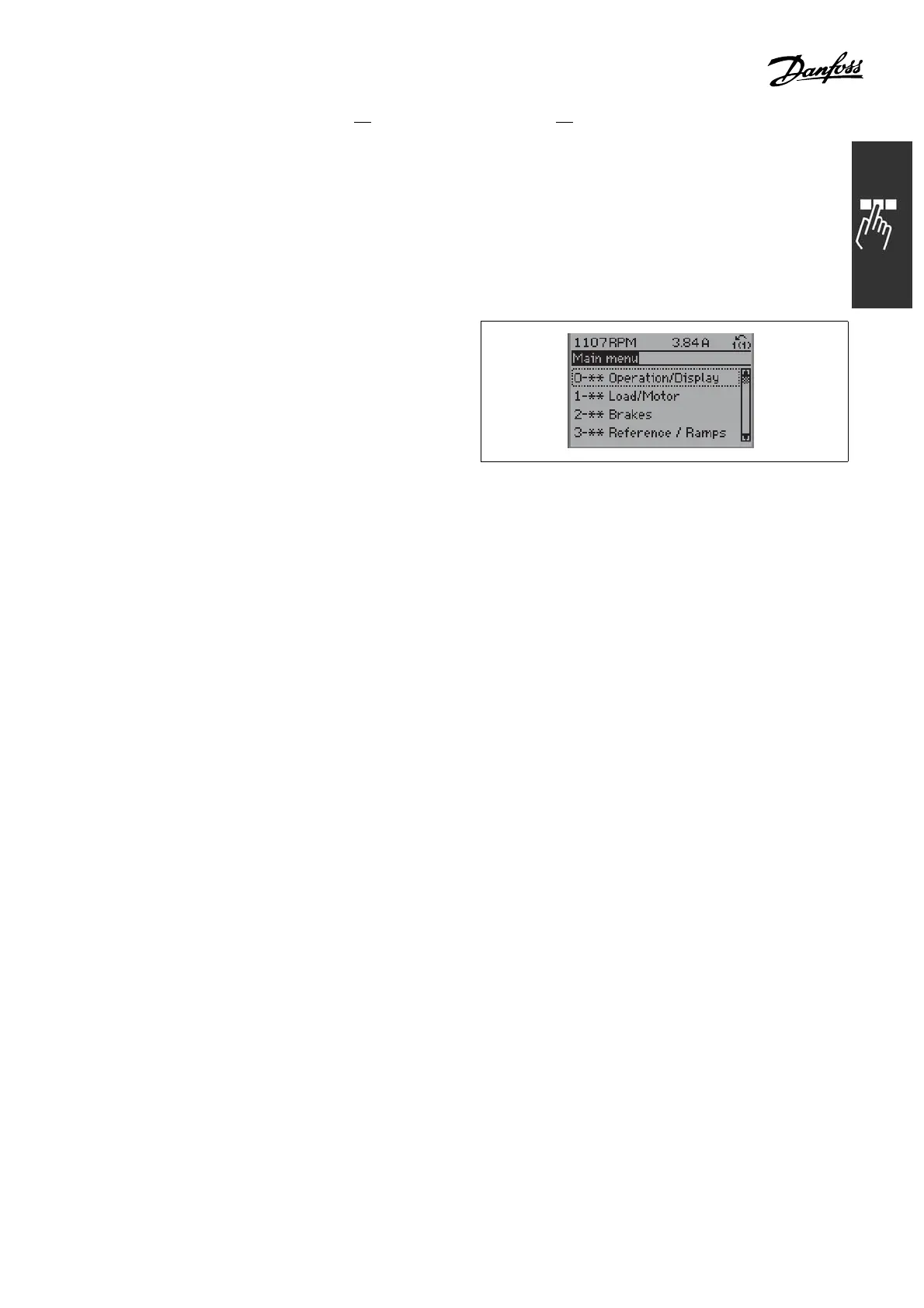

Start the Main Menu mode by pressing the
[Main Menu] key. The readout shown to the
right appears on the display.
The middle and bottom sections on the display show
a list of parameter groups which can be chosen
by toggling the up and down buttons.
130BP066.10
Each parameter has a nam e and number which remain the same regardless of the programming
mode. In the Main Menu mode, the parameters are divided into groups. The first digit of the
parameter number (from the left) indicates the parameter group number.
All parameters ca n be changed in the Main Menu. However, depending on the choice of configuration
(par. 1-00), some p arameters ca n be "miss ing". E.g. open loop hides all the P.I.D. parameters,
and oth er enabled options make more parameter groups visible.
