Enclosure size
C1
C2
C3
C4
D3h
f
9.8 (0.39)
9.8 (0.39)
17 (0.67)
17 (0.67)
–
Maximum weight [kg (lb)]
45 (99)
65 (143)
35 (77)
50 (110)
62 (137)
Front cover tightening torque [Nm (in-lb)]
Plastic cover (low IP)
Click
Click
2 (17.7)
2 (17.7)
–
Metal cover (IP55/66)
2.2 (19.5)
2.2 (19.5)
2 (17.7)
2 (17.7)
–
1
See Illustration 21 and Illustration 22.
C
a
b
e30ba648.13
f
e
B
A
a
d
e
b
c

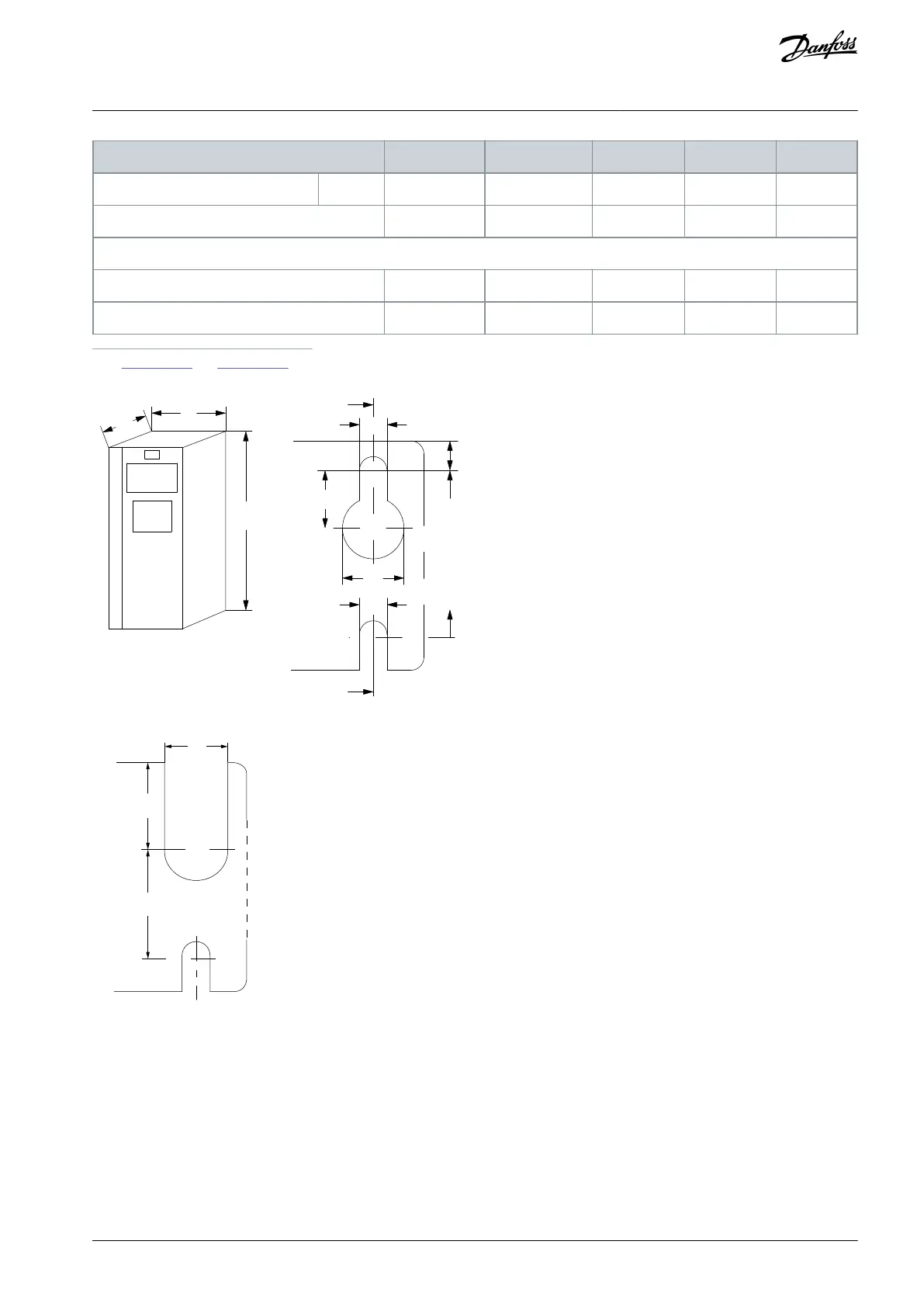

Illustration 21: Top and Bottom Mounting Holes
a
e
f
e30ba715.12
Illustration 22: Top and Bottom Mounting Holes, Enclosure Sizes B4, C3, and C4
