Dascom TALLY MIP480 - Page 10

Paper Handling
2-2

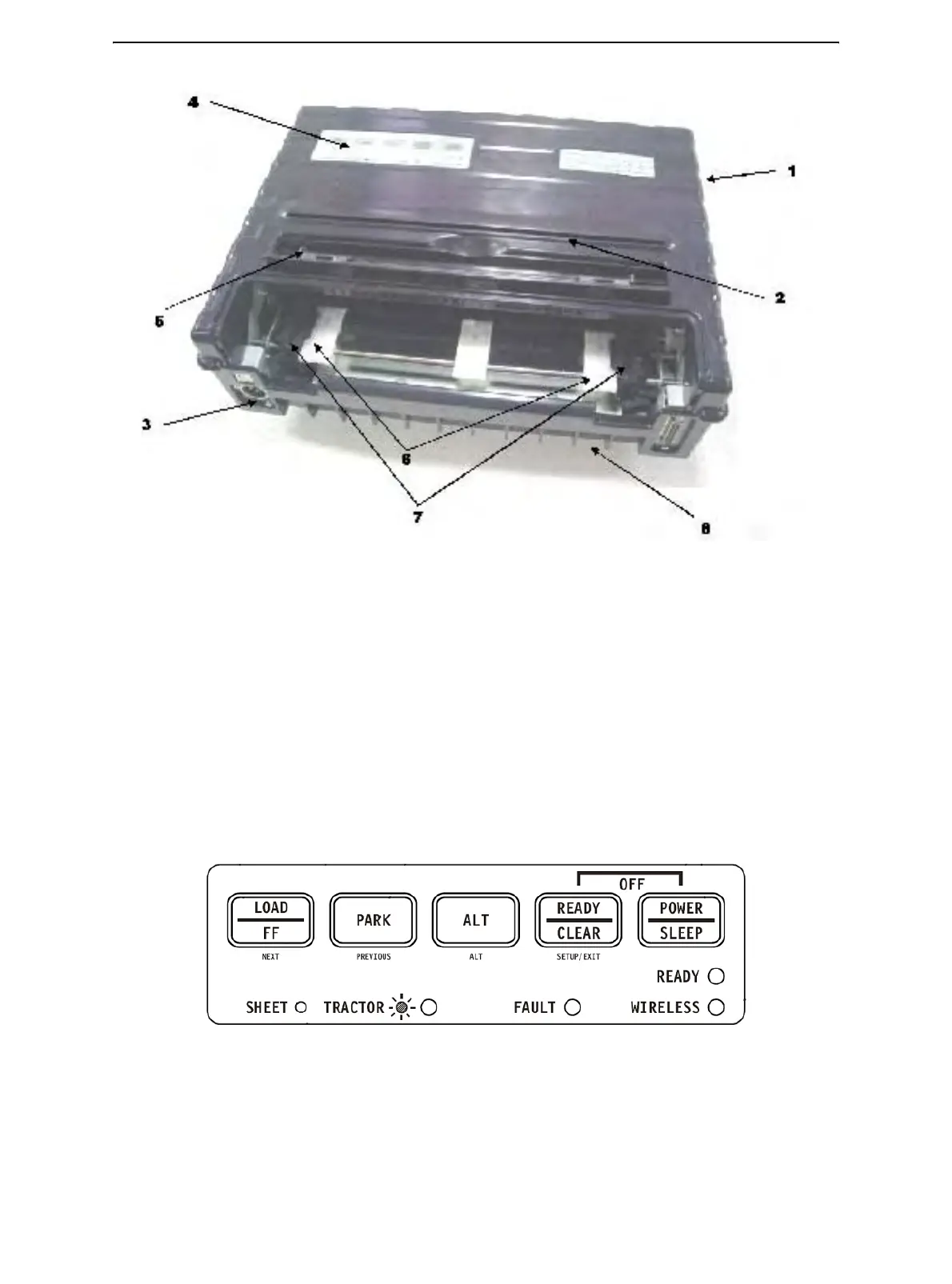

Front View
1 Top Cover
2 Cut Sheet Edge
3 Power Supply Connector (to connect to the vehicle battery)
4 Control Panel (to load and feed paper, select print features, or change the printer’s
optional settings)
5 Single Sheet Edge Guides (to adjust location of single sheets)
6 Easy Load Platforms
7 Tractor Doors (to hold and feed continuous forms)
8 Front/Bottom
Control Panel
