Datalogic Gryphon I GFS4100 - GS1 Databar Expanded Set Length 2

GS1 DataBar™ Expanded ENTER/EXIT PROGRAMMING MODE
180 Gryphon™ I GFS4170/GFS4150-9
GS1 DataBar™ Expanded Set Length 2
This feature specifies one of the barcode lengths for GS1 DataBar™ Expanded Length Control.
Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if
in Fixed Length Mode. Length includes the barcode’s data characters only. The length can be set
from 1 to 74 characters. A setting of 0 specifies to ignore this length (only one f
ixed length).

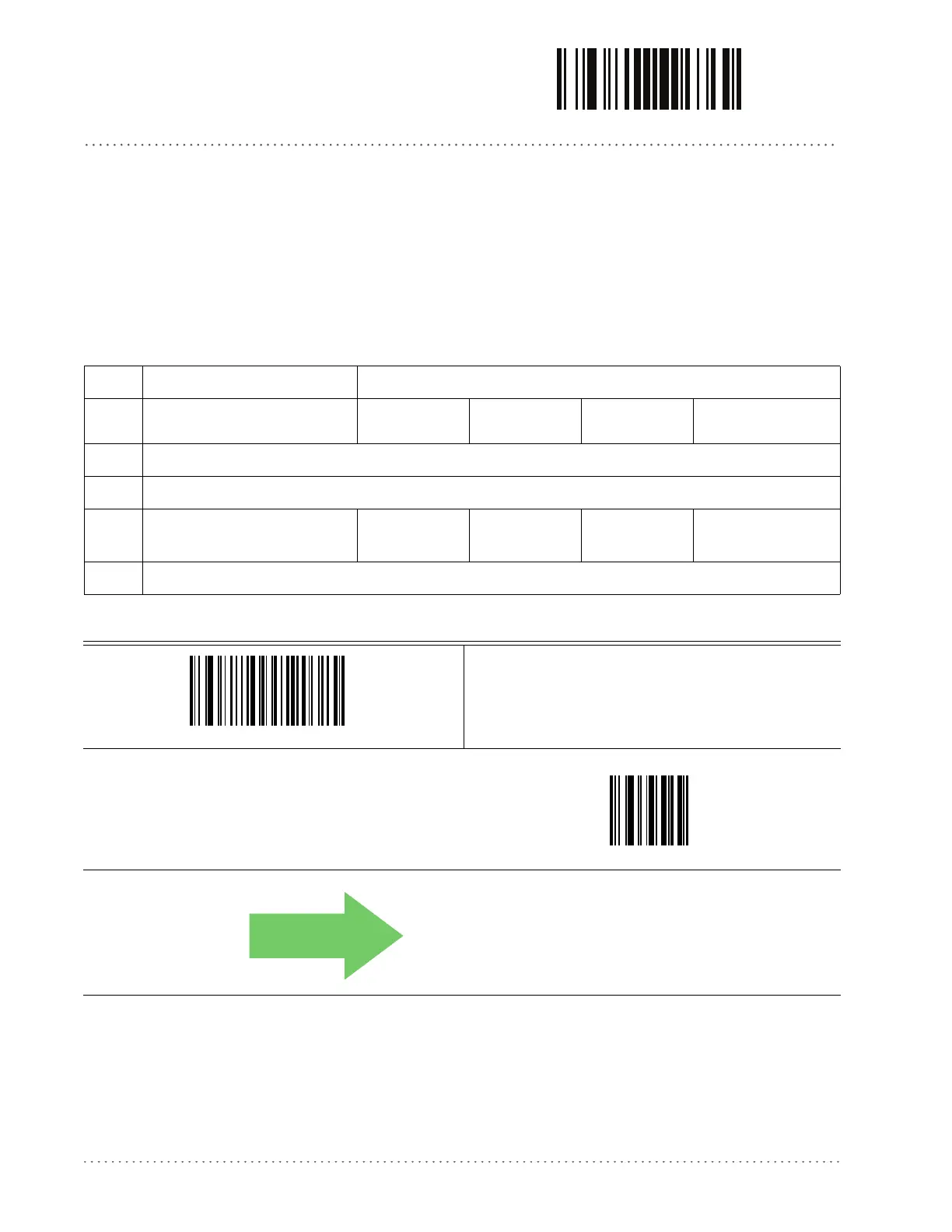

Table 17 provides examples for setting Length 2. See page 256 for detailed instructions on
setting this feature.
Table 17. GS1 DataBar™ Expanded Length 2 Setting Examples
STEP ACTION EXAMPLES
1 Desired Setting
00 (ignore second
length)
07 Characters 52 Characters 74 Characters
2 Scan ENTER/EXIT PROGRAMMING MODE
3 Scan SELECT GS1 DataBar™ EXPANDED LENGTH 2 SETTING
4
Scan Two Characters From
Appendix D, Keypad
‘0’ and ‘0’ ‘0’ and ‘7’ ‘5’ and ‘2’ ‘7’ and ‘4’
5 Scan ENTER/EXIT PROGRAMMING MODE
Select GS1 DataBar™ Expanded Set Length 2 Setting
Make a mistake? Scan the CANCEL barcode to abort and not
sav
e the entry string. You can then start again at the begin-
ning.
CANCEL
DEFAULT
74 = Length 2 is 74 Characters
