Datalogic Kyman User Manual

KYMAN™
3

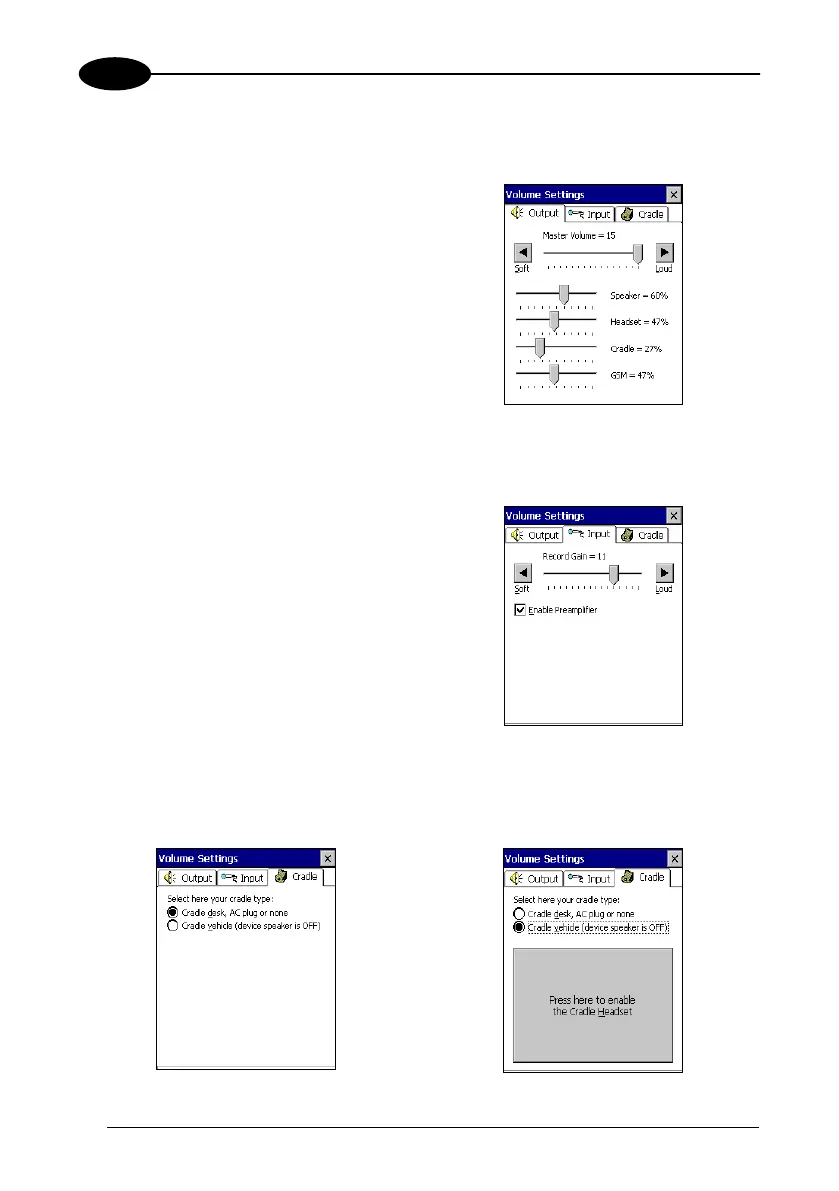

Output Tab
It allows setting the volume for each audio profile:
The “Master Volume” slider allows setting
the volume used by all audio profiles. In
addition, it is possible to attenuate the
volume for each single profile through the
dedicated slider.
Input Tab
It allows setting the microphone recording volume:
The “Record Gain” slider allows setting
the recording volume, while the “Enable
Preamplifier” check box enables/disables
the preamplifier (this option is not
selectable when Current Profile = Cradle
or GSM).
Cradle Tab
It allows selecting the cradle type and managing the vehicle cradle headset
functioning:
62

Datalogic Kyman Specifications

General

Display diagonal	3.5 \
Display resolution	320 x 240 pixels
Display number of colors	65536 colors
Internal memory	0.128 GB
Internal memory type	RAM
Compatible memory cards	MiniSD
Processor family	PXA 270
Processor frequency	0.52 GHz
Processor manufacturer	Marvell
Product color	Black
Phone function	No
Wireless technology	IEEE 802.11b/g
Battery capacity	2200 mAh
Keyboard type	53 alphanumeric
I/O ports	3-pin RS232, USB 1.1
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Operating system installed	Windows CE 5.0
Data network	-
Wi-Fi standards	802.11b, 802.11g

Weight and Dimensions

Depth	55 mm
Width	91 mm
Height	238 mm
Weight	550 g
