Datalogic Kyman User Manual

USE AND FUNCTIONING
3

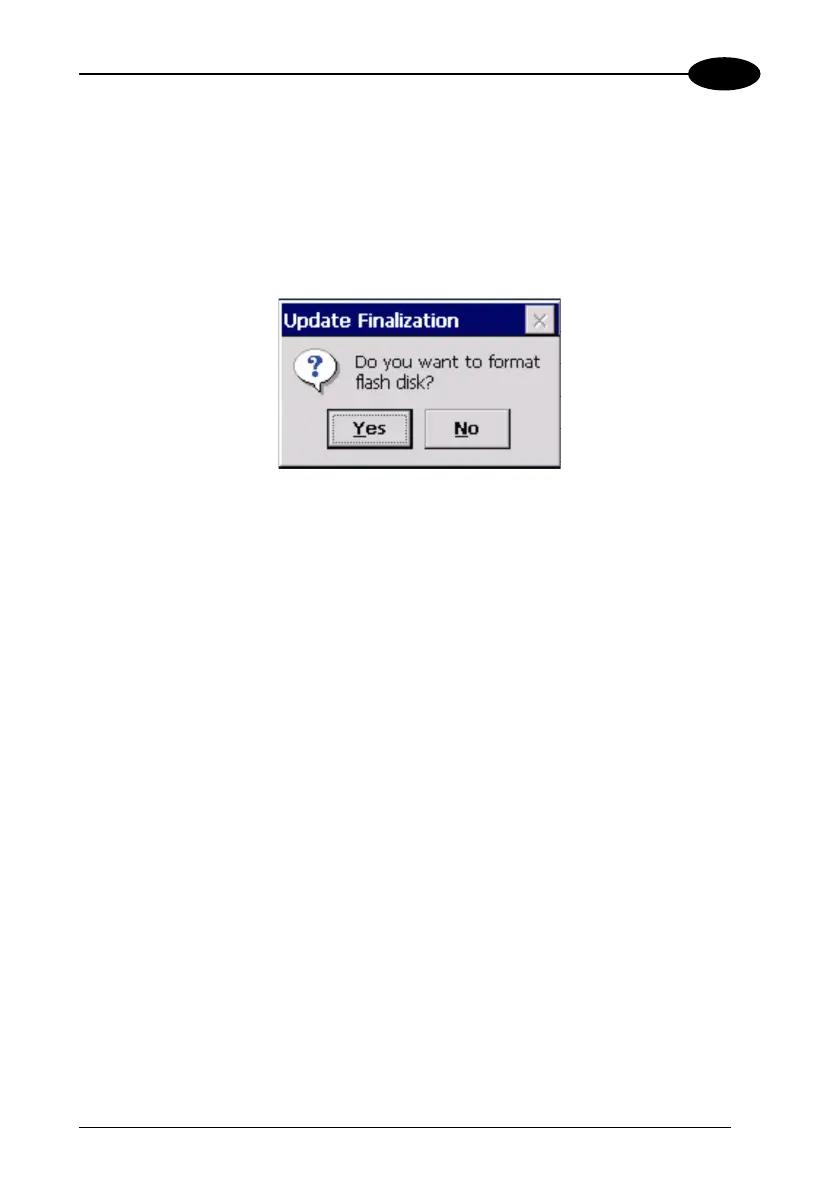

8. Following the operating system upgrade, the message shown in figure 3 may
come up at the terminal startup. It informs the user that a flash disk formatting
(folder
\backup) would required for a clean update and asks whether to proceed
with this operation. Select
<YES> to format the flash disk. Select <NO> to
preserve the current data stored in the backup folder. Sometimes the update
process may force a flash format. In these cases the data stored in the backup
folder will be irreparably lost. It is therefore recommended to run a backup of the
data you want to preserve before starting a firmware update.
Figure 3
77

Datalogic Kyman Specifications

General

Display diagonal	3.5 \
Display resolution	320 x 240 pixels
Display number of colors	65536 colors
Internal memory	0.128 GB
Internal memory type	RAM
Compatible memory cards	MiniSD
Processor family	PXA 270
Processor frequency	0.52 GHz
Processor manufacturer	Marvell
Product color	Black
Phone function	No
Wireless technology	IEEE 802.11b/g
Battery capacity	2200 mAh
Keyboard type	53 alphanumeric
I/O ports	3-pin RS232, USB 1.1
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Operating system installed	Windows CE 5.0
Data network	-
Wi-Fi standards	802.11b, 802.11g

Weight and Dimensions

Depth	55 mm
Width	91 mm
Height	238 mm
Weight	550 g
