Datalogic Magellan 2300HS User Manual

RS-232 Features
Product Reference Guide 139
RS-232 TTL Invert
Enables/disables inversion of TTL.
To set this feature:
1. Scan the SWITCH bar code.
2. Scan the bar code below which represents the desired setting for this
feature. You’ll need to cover any unused bar codes on this and the
facing page to ensure that the scanner reads only the bar code you
intend to scan.
3. Complete the programming sequence by scanning the SWITCH
bar code.

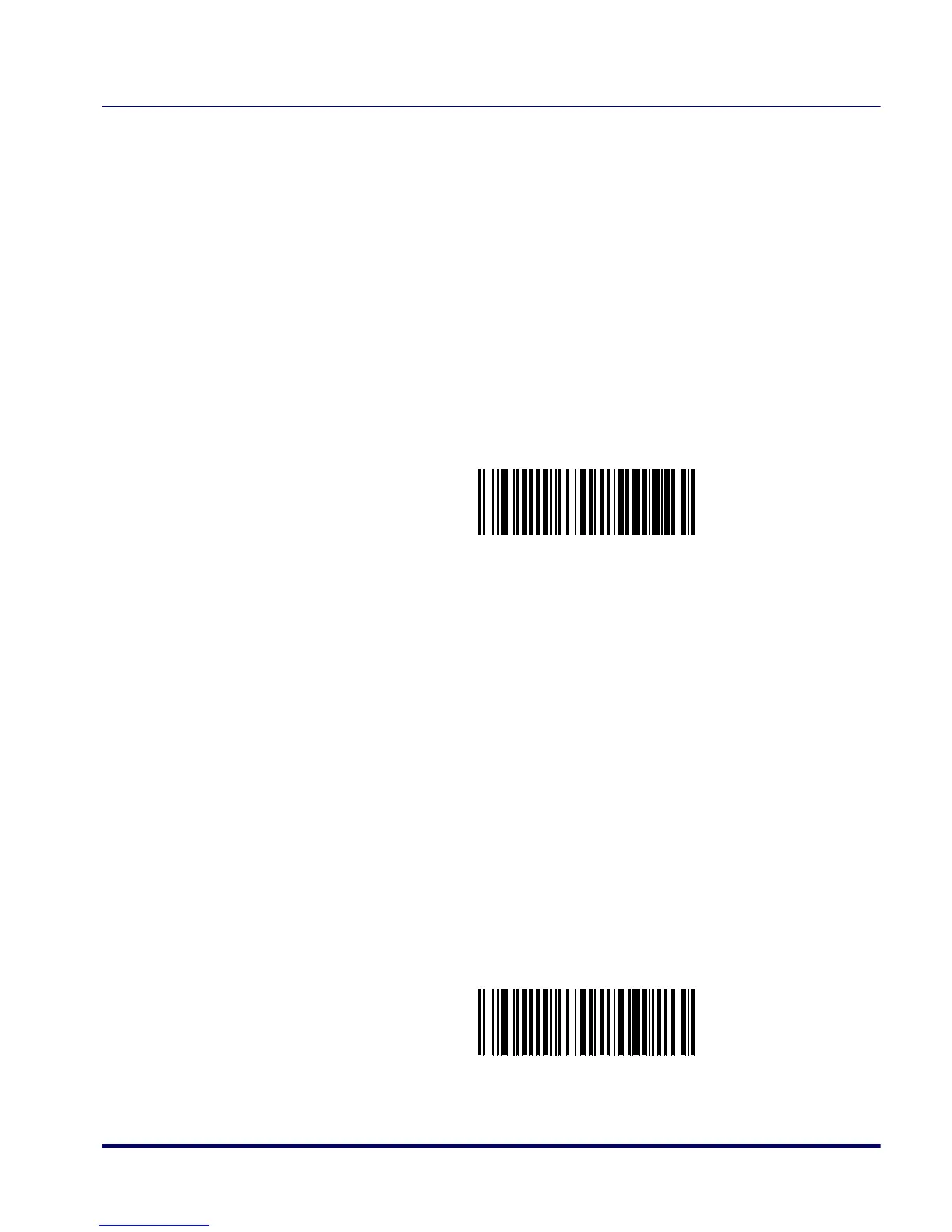

RS-232 TTL INVERT = NO INVERT
RS-232 TTL INVERT = INVERT

Datalogic Magellan 2300HS Specifications

General

Scanner type	1D
Decoding standards	GS1 DataBar
Input voltage	90 - 265 V
Power requirements	47-63 Hz
Power consumption (standby)	2.5 W
Dimensions (WxDxH)	152 x 152 x 86 mm
Certification	RoHS
Product color	Gray
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Weight	1100 g
