334 Magellan
®
2200VS/2200VS and 2300HS/2300HS
Standard 2 of 5 Length 2
Length 2 is the maximum label length if in variable length mode, or the
second fixed length if in fixed length mode (see
Standard 2 of 5 Length
Control)
. Length includes the barcode’s check and data characters.
To set this feature:
1. Scan the SWITCH bar code.
2. Scan the bar code,
SET STANDARD 2 OF 5 LENGTH 2 below.
You’ll need to cover any unused bar codes on this and the facing
page to ensure that the scanner reads only the bar code you intend
to scan.
3. Scan the appropriate digits from the keypad in
Appendix C that rep-
resent the desired label length. A setting of 00 will ignore this length
(only one fixed length), otherwise, the selectable range for this
option is 01 to 50. Pad all single digit numbers with aleading zero to
yield a two-digit entry (01-50).
4. Complete the programming sequence by scanning the SWITCH
bar code.

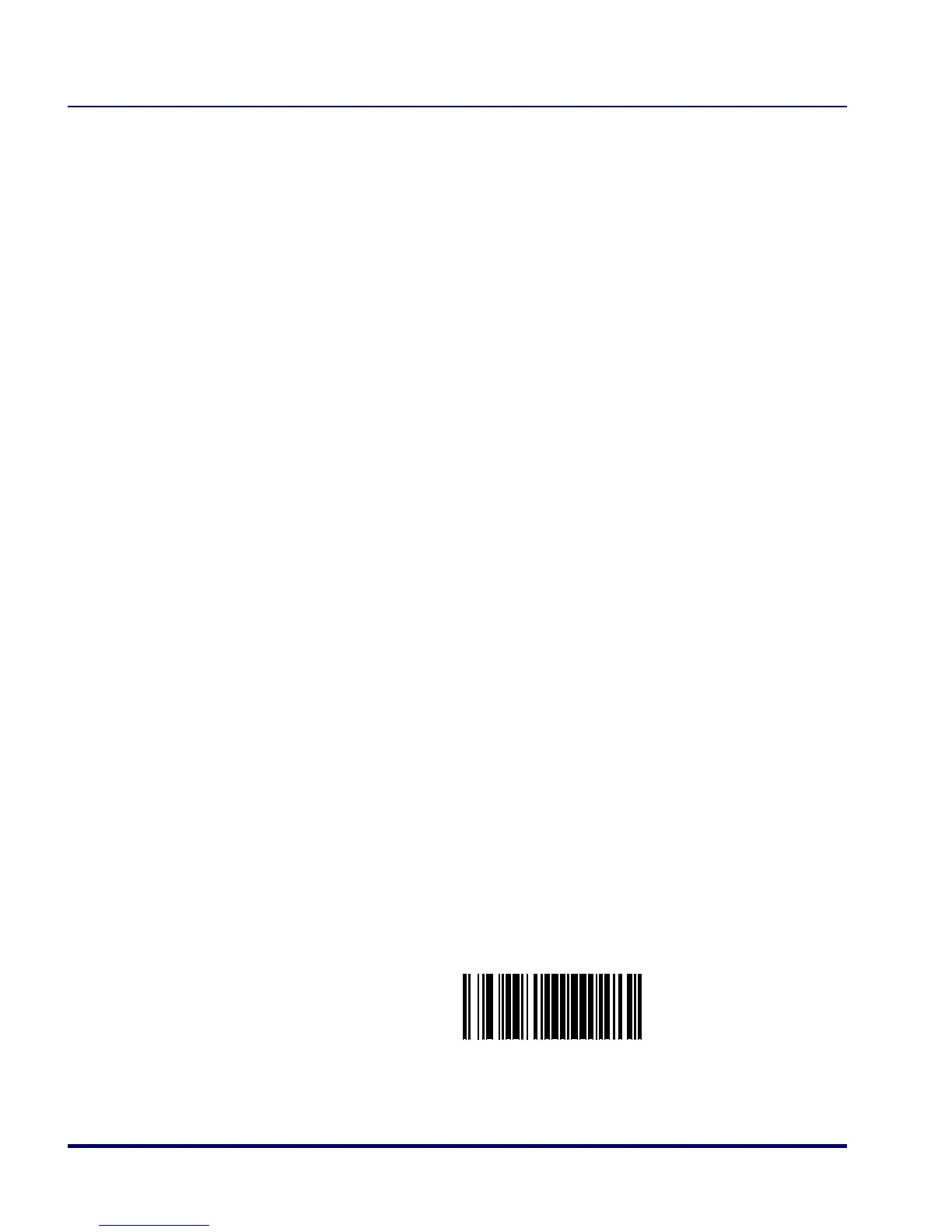

SET STANDARD 2 OF 5 LENGTH 2

Datalogic Magellan 2300HS Specifications

General

Scanner type	1D
Decoding standards	GS1 DataBar
Input voltage	90 - 265 V
Power requirements	47-63 Hz
Power consumption (standby)	2.5 W
Dimensions (WxDxH)	152 x 152 x 86 mm
Certification	RoHS
Product color	Gray
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Weight	1100 g
