336 Magellan

2200VS/2200VS and 2300HS/2300HS

Standard 2 of 5 Stitching

Enables/disables stitching for Standard 2 of 5 labels. When parts of a Stan-

dard 2 of 5 bar code are presented to the scanner with this feature enabled,

the bar code parts will be assembled by the scanner’s software, and the data

will be decoded if all bar code proofing requirements are met.

To set this feature:

1. Scan the SWITCH bar code.

2. Scan your selection from the bar codes below. You’ll need to cover

any unused bar codes on this and the facing page to ensure that the

scanner reads only the bar code you intend to scan.

3. Complete the programming sequence by scanning the SWITCH

bar code.

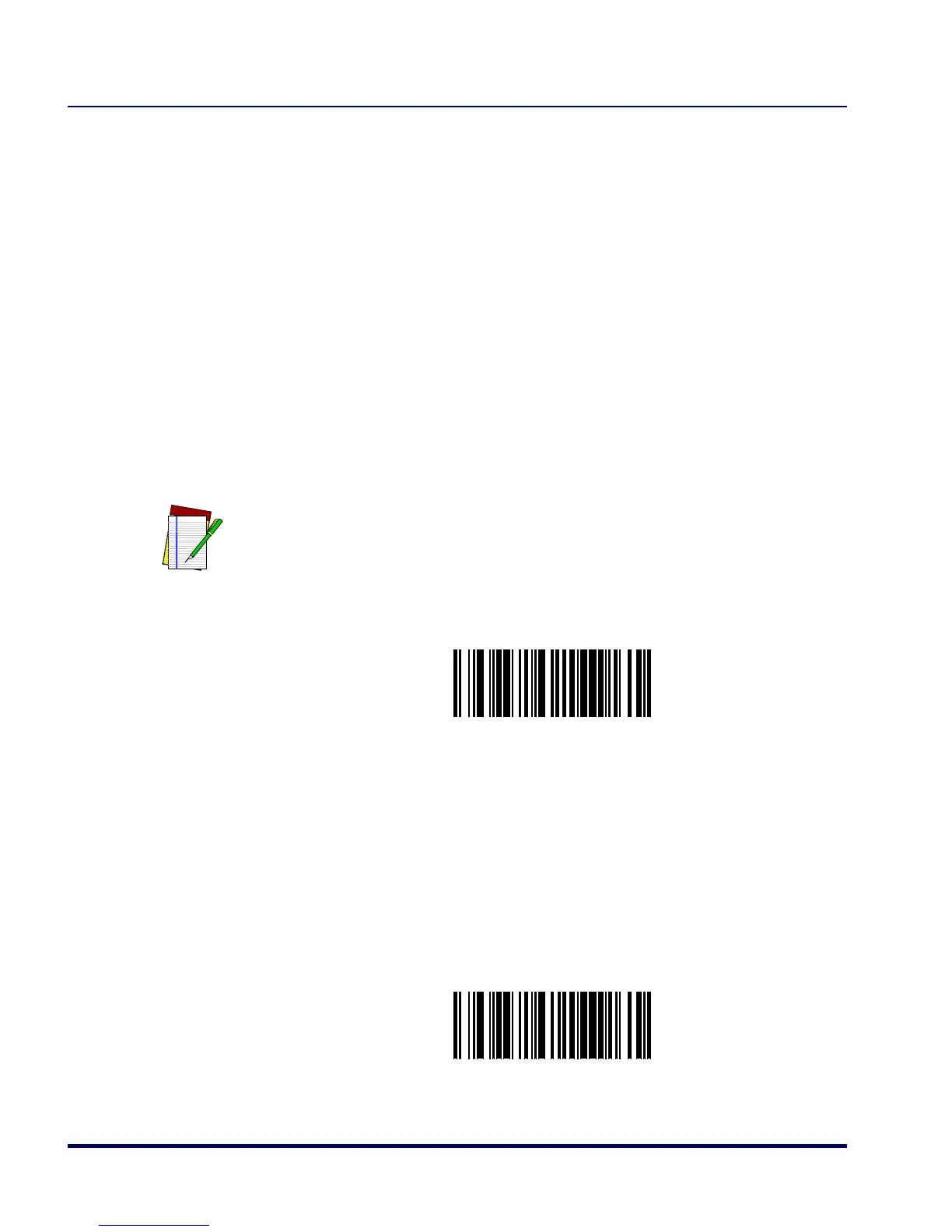

I 2 OF 5 STITCHING = DISABLE

I 2 OF 5 STITCHING = ENABLE

NOTE

Standard 2 of 5 Stitching operates using fixed lengths ONLY. Standard

2 of 5 Length 1 and/or Standard 2 of 5 Length 2 must be properly con-

figured for stitching to work.
