2.2 BC-80X0 INTERFACE CABLE CONNECTIONS

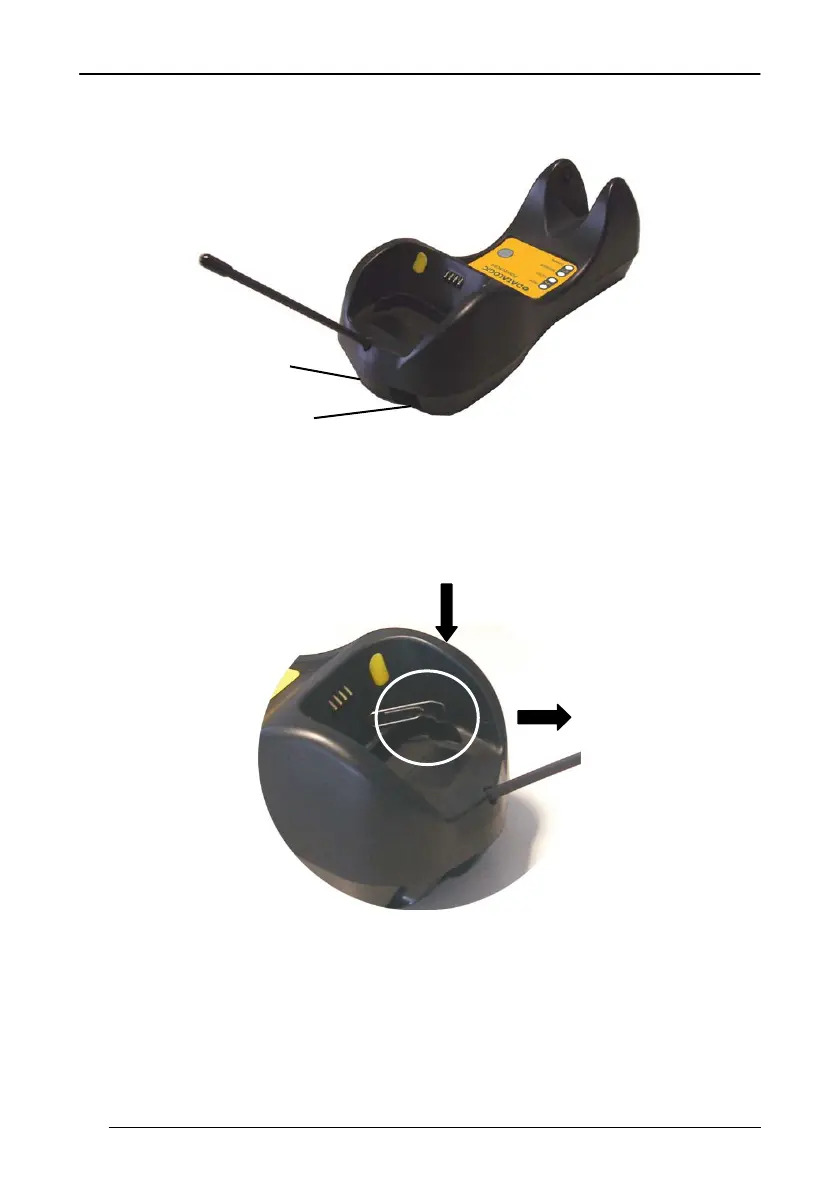

BC-80X0 Connectors
The BC-80X0 incorporates a multi-standard interface, which can be connected to a
Host by simply plugging the correct interface cable into the Host connector, placed on
the base of the cradle. In addition the cradle must be connected to an external power
supply.
Disconnecting the BC-80X0 Cable
To disconnect the cable, insert a paper clip or other similar object into the hole
corresponding to the Host connector on the body of the cradle.
Push down on the clip while unplugging the cable.
Interface Cable
Power

Datalogic PowerScan M8300 Specifications

General

Scanner type	1D
Maximum range	30 m
Read rate (max)	40 reads/s
Yaw reading angle	-60 - 60 °
Decoding standards	GS1 DataBar, Code 16K, Code 49, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional
Tilt reading angle	-20 - 20 °
Pitch reading angle	-55 - 55 °
Operating time	240 min
Dimensions (WxDxH)	114 x 69 x 210 mm
Bluetooth	No
Operating frequency	910 MHz
Input voltage	10 - 30 V
Battery capacity	2150 mAh
Power requirements	0.33 - 1A
Number of reads per charge	60000
Certification	IP64, China RoHS, EU RoHS, CDRH Class II, IEC 60825-1 Class 2
Keys quantity	3 keys
Product color	Black, Yellow
LED indicators	Charging, Power
Display resolution	32 x 96 pixels
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	0 - 90 %

Weight and Dimensions

Weight	393 g
