Datalogic PowerScan M8300 User Manual

POWERSCAN
®
M8300 SYSTEM AND NETWORK LAYOUTS
21
3.2 MULTIDROP STAR-SYSTEM™ NETWORK LAYOUTS
Even though many stand-alone systems can operate in the same physical area without
interfering with each other, it may be desirable to bridge data from multiple base
stations in a network to a
single
Host. PowerScan
®
M8300 readers are compatible with
STAR-System™ networks. These networks provide seamless active roaming for any
RF reading device in the system.
3.2.1 Host Master Layout
A.
Host Master with STAR-Link™
B.
STAR-Box™ converter
C.
BC-8060 slave cradles
D.
STARGATE™ base stations

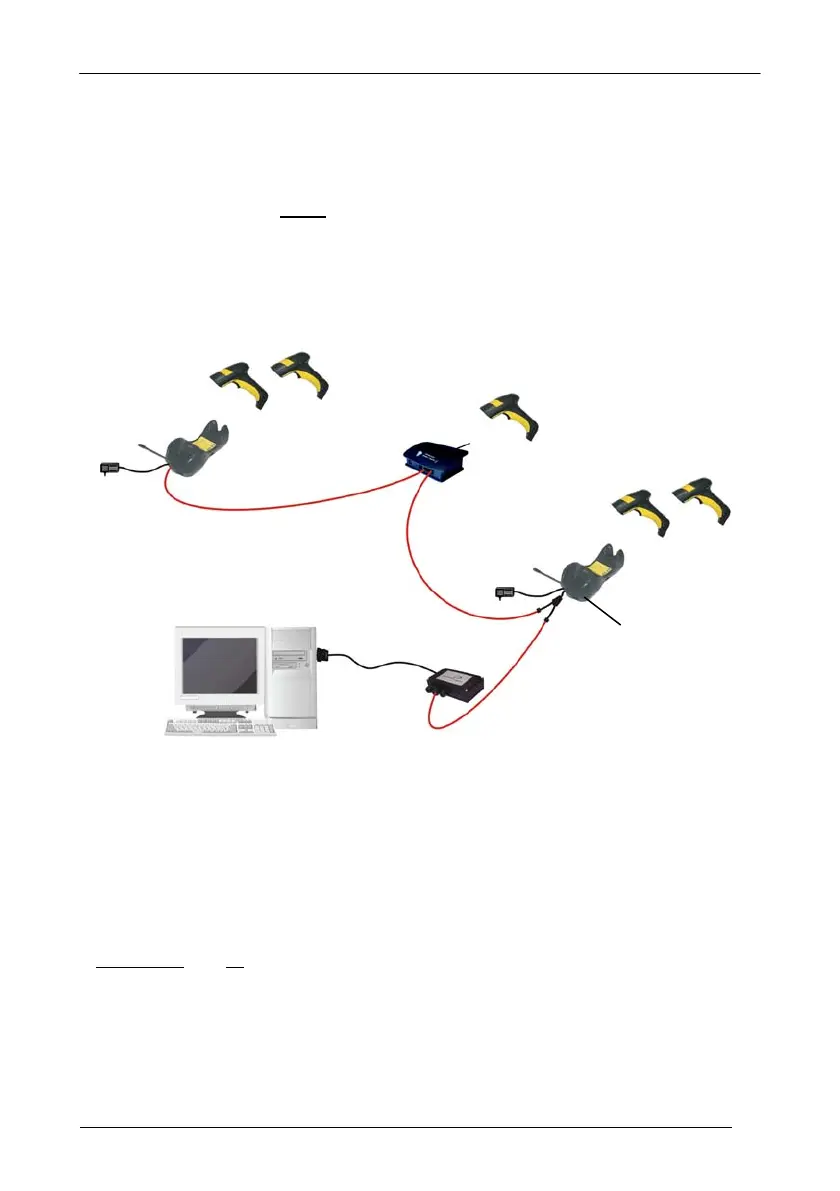

Example Multidrop STAR-System™ Network with Host as Master
In this layout the Host acts as the Master using STAR-Link™ software. The Host is
connected in RS-232 to a STAR-Box™ converter, which is connected to the first slave
in the RS-485 network. In this way the base stations provide communications between
a
single Host and all
2.8.3
readers in the system. STARGATE™ base stations are used as
slaves in this network. The Slaves at the ends of the network must be terminated (see
the STARGATE™ and STAR-Box™ Installation Manuals and par. ).
See par. 4.6 and 4.7 or the Datalogic Aladdin™ Help On-Line for system
configuration specifications.
Internal
Termination
Internal
Termination
RS-485 + VDC
RS-485 + VDC
RS-232
A
B
C
C
D
RS-485 Only
CAB-428 Splitter

Datalogic PowerScan M8300 Specifications

General

Scanner type	1D
Maximum range	30 m
Read rate (max)	40 reads/s
Yaw reading angle	-60 - 60 °
Decoding standards	GS1 DataBar, Code 16K, Code 49, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional
Tilt reading angle	-20 - 20 °
Pitch reading angle	-55 - 55 °
Operating time	240 min
Dimensions (WxDxH)	114 x 69 x 210 mm
Bluetooth	No
Operating frequency	910 MHz
Input voltage	10 - 30 V
Battery capacity	2150 mAh
Power requirements	0.33 - 1A
Number of reads per charge	60000
Certification	IP64, China RoHS, EU RoHS, CDRH Class II, IEC 60825-1 Class 2
Keys quantity	3 keys
Product color	Black, Yellow
LED indicators	Charging, Power
Display resolution	32 x 96 pixels
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	0 - 90 %

Weight and Dimensions

Weight	393 g
