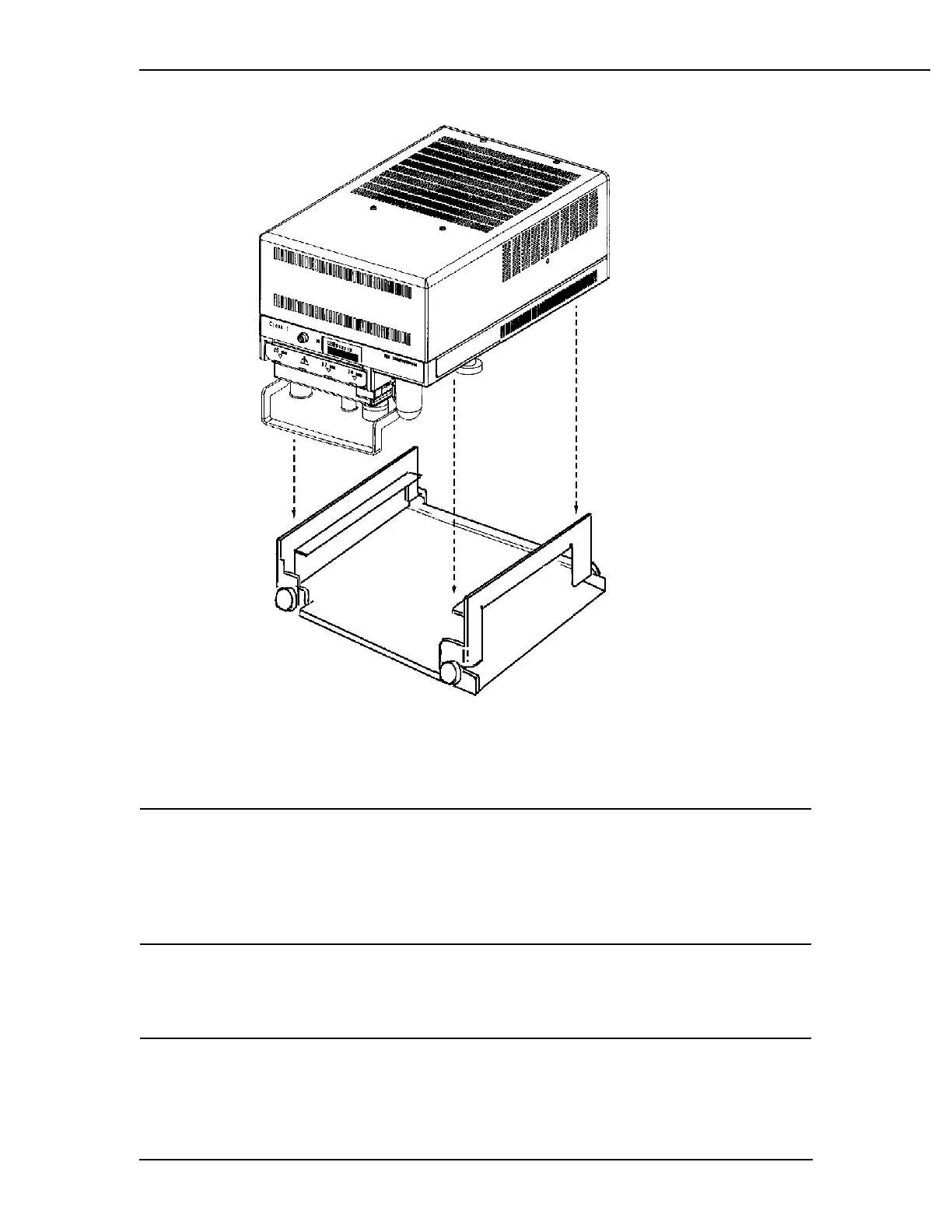

Figure 6-7
Put the ventilator on the service shelf
2. Arrange the ventilator so the rear is toward the left side of the gas machine.
3. Set the ventilator down on the service shelf so the locking screw fits below the
mounting rail. Slide ventilator toward the front on the rails so locking screw
slides in the notch. Tighten the securing knob to hold the ventilator to the ser-
vice shelf.
CAUTION:
w
The ventilator must sit on the left edge of the gas machine work surface
to clear cables and hoses. Use care to prevent the ventilator from slip-
ping off the surface and possibly causing damage to the ventilator or in-
jury to the person servicing the ventilator.
