7/ Illustrated Parts List
1503-0151-000 3/27/97 7-11
1. Solenoid mounting screws, included with solenoid
2. Solenoid, 1503-3088-000
3. Gas inlet valve body, 1503-8012-000*
4. Retaining ring, 1500-3158-000
5. GIV cap, 1503-5006-000
6. O-ring, 32.1 ID 35.3 OD, 9221-3032-116
7. GIV shuttle with U-cups
Suttle (poppet), 1503-5018-000
U-cup (upper) 26.98 OD 20.63 ID,1503-3090-000
U-cup (lower)17.02 OD 5.33 ID,1503-3089-000
8. O-ring, 15.6 ID 20.4 OD Vito1503-3108-000
* Includes mounting screws 1503-3105-000 (2)

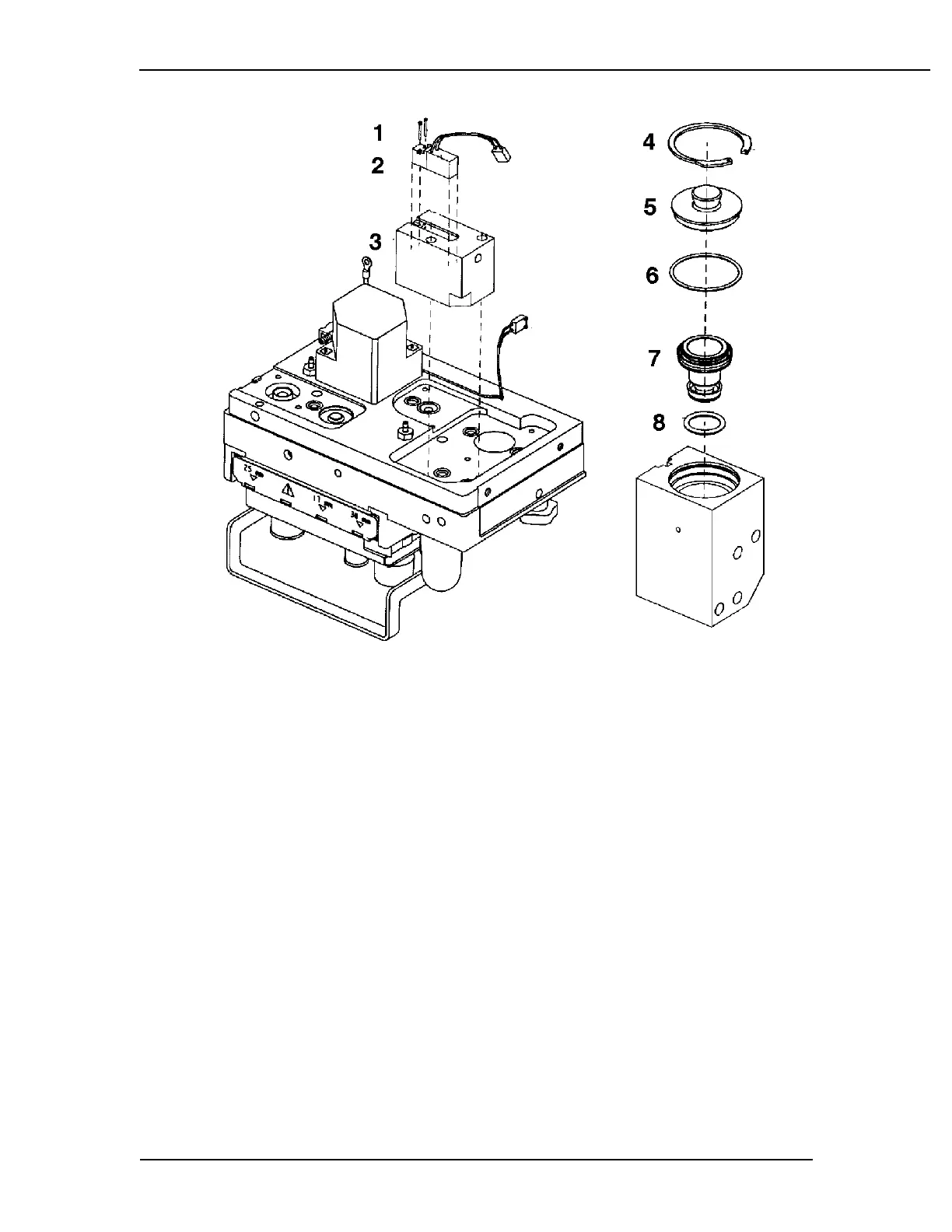

Figure 7-18
Gas inlet valve
