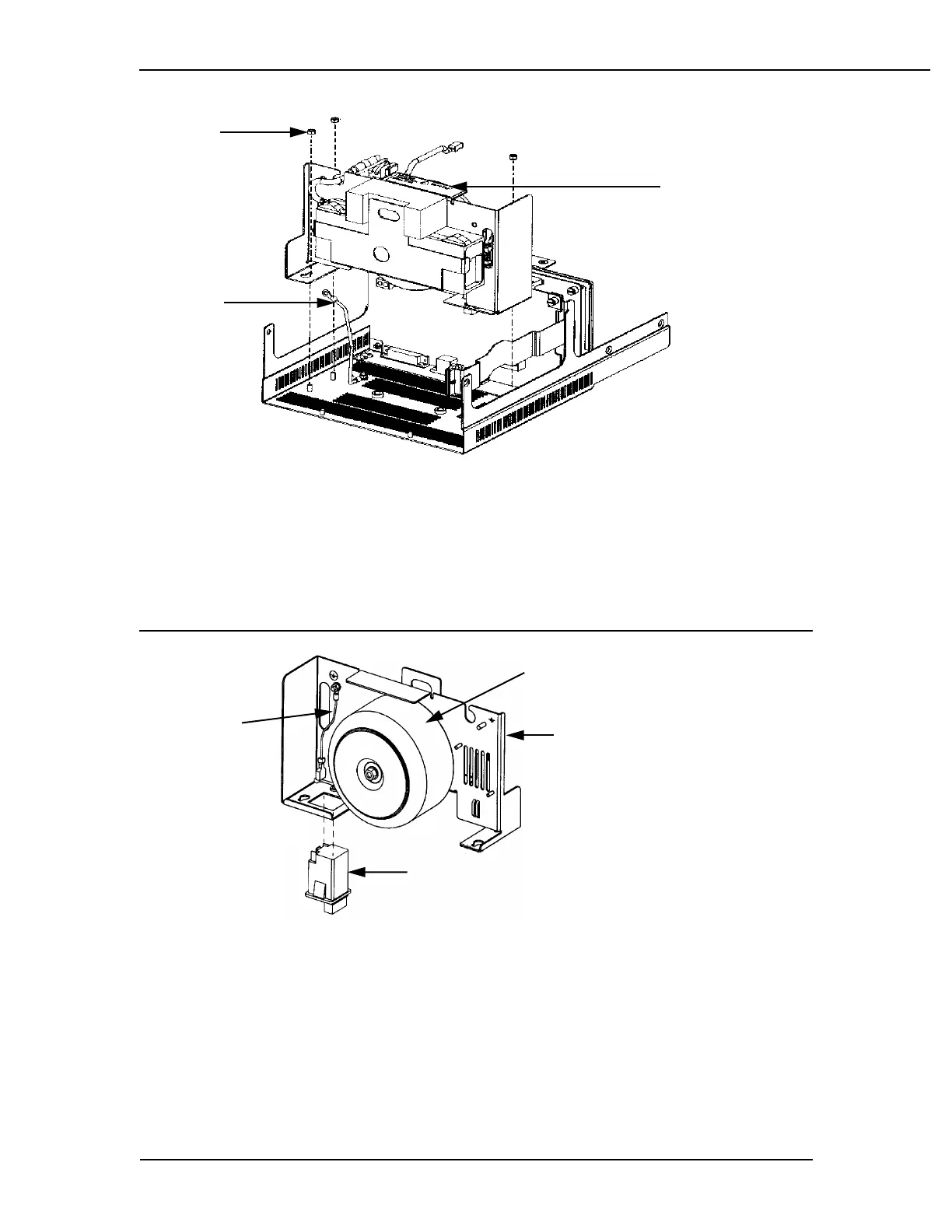

Datex-Ohmeda 7900 - Figure 7-10 Power Module Mounting; Figure 7-11 Power Module Components

7/ Illustrated Parts List
1503-0151-000 3/27/97 7-7
1. Keps nut M4, 0144-3717-314 (3)
2. Ground harness, 1500-7048-000
2a. Keps nut (not shown), 0144-3717-314 (2)
2b. Washer M4 (not shown), 9213-0540-003 (2)
3. Label set, 1503-3027-000
Figure 7-10
Power module mounting
1. Connector, AC inlet 1503-3000-000
1a. Fuse 2 amp 250V 5x20 mm delayed time (not shown), 1503-3073-000 (2)
2. Filter harness, 1500-7053-000
2a. Keps nut M4 (not shown), 0144-3717-314
2b. Washer M4 (not shown), 9213-0540-003
3. Transformer assembly, 1503-3017-000, see Figure 7-13
4. Bracket power module, 1503-3060-000
Figure 7-11
Power module components
3
2
1
1
2
3
4
