7/ Illustrated Parts List
7-8 1503-0151-000 3/27/97
1. Speaker, 1503-3106-000
2. Keps- nut, M3, 0144-3717-302 (2)

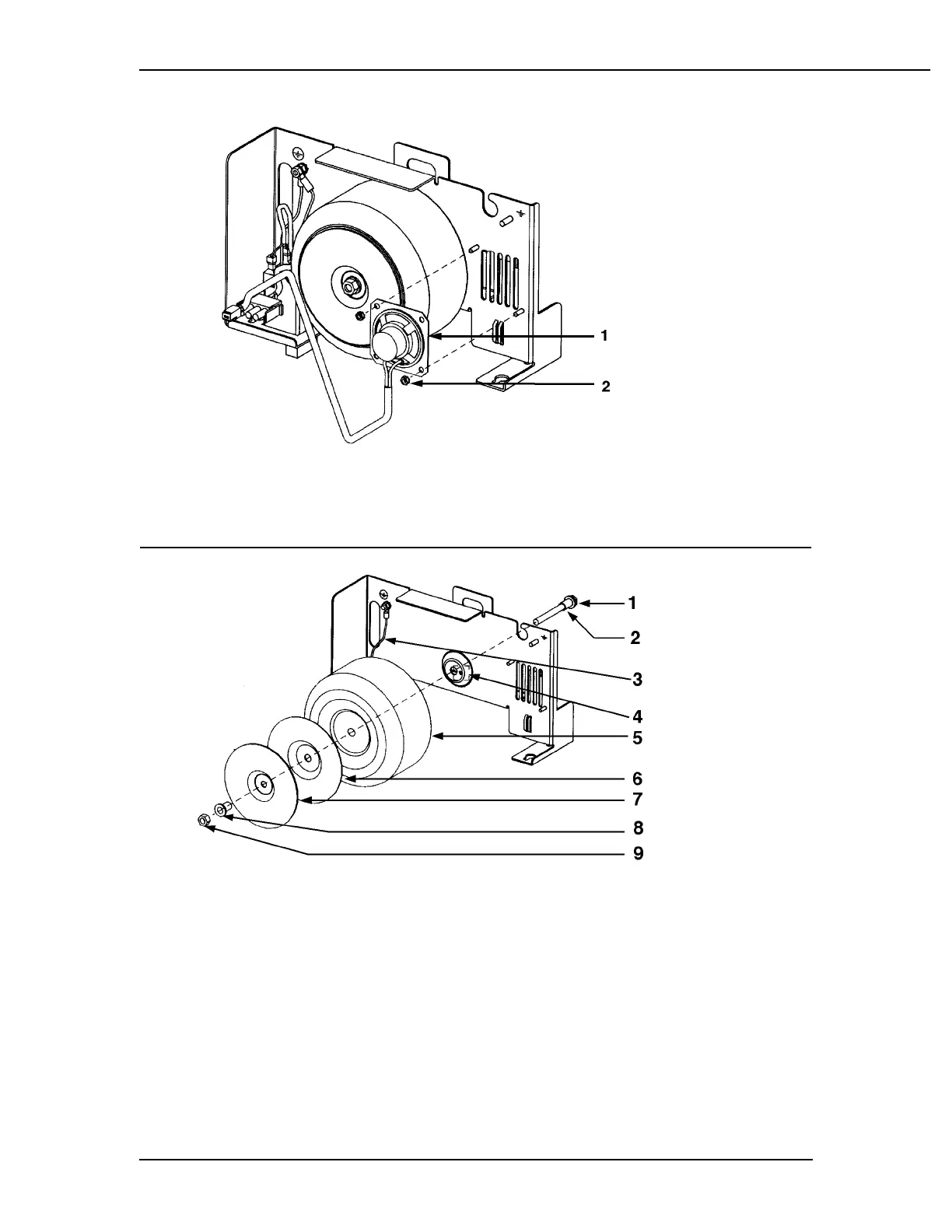

Figure 7-12
Alarm speaker
Parts 1 through 9 are included with the transformer under part number 1503-3017-000.
Figure 7-13
Transformer assembly (exploded view)
1. Bolt 6. Rubber insulator
2. Nylon sleeve 7. Mounting plate
3. Ground wire 8. Nylon sleeve
4. Mounting location notch 9. Hex nut, locking
5. Transformer coil
