4/Tests and Troubleshooting
1503-0151-000 5/26/0 4-7

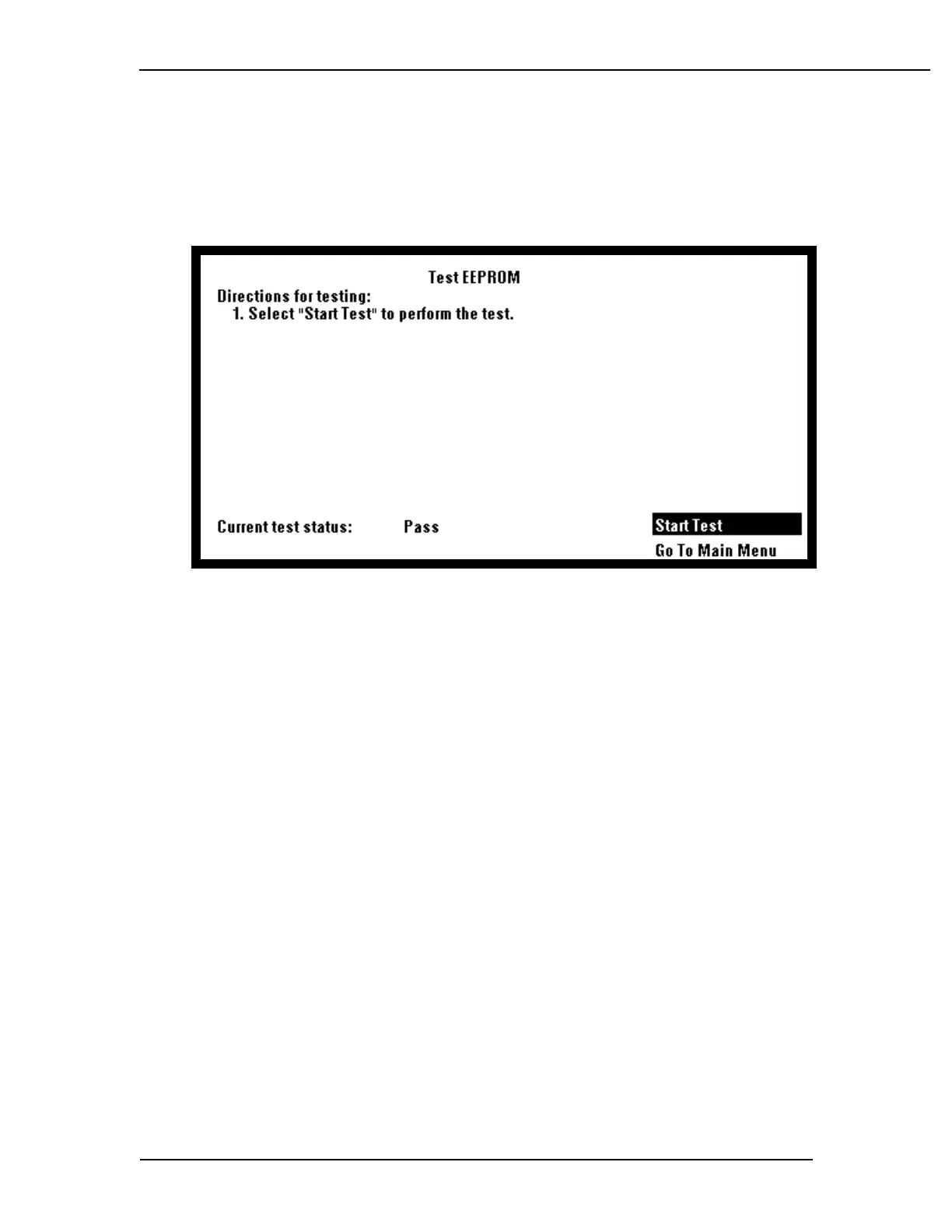

Test EEPROM
The software tests all of the EEPROM memory via a bit pattern test. It writes a cer-
tain pattern to a block of memory and then reads that block of memory. If the bit
pattern that was written is not the same as the bit pattern read back, the test fails.
Upon FAIL, replace the microcontroller board.
