Datex-Ohmeda 7900 - Harnesses and Cable Part Numbers

7/ Illustrated Parts List
7-16 1503-0151-000 3/27/97

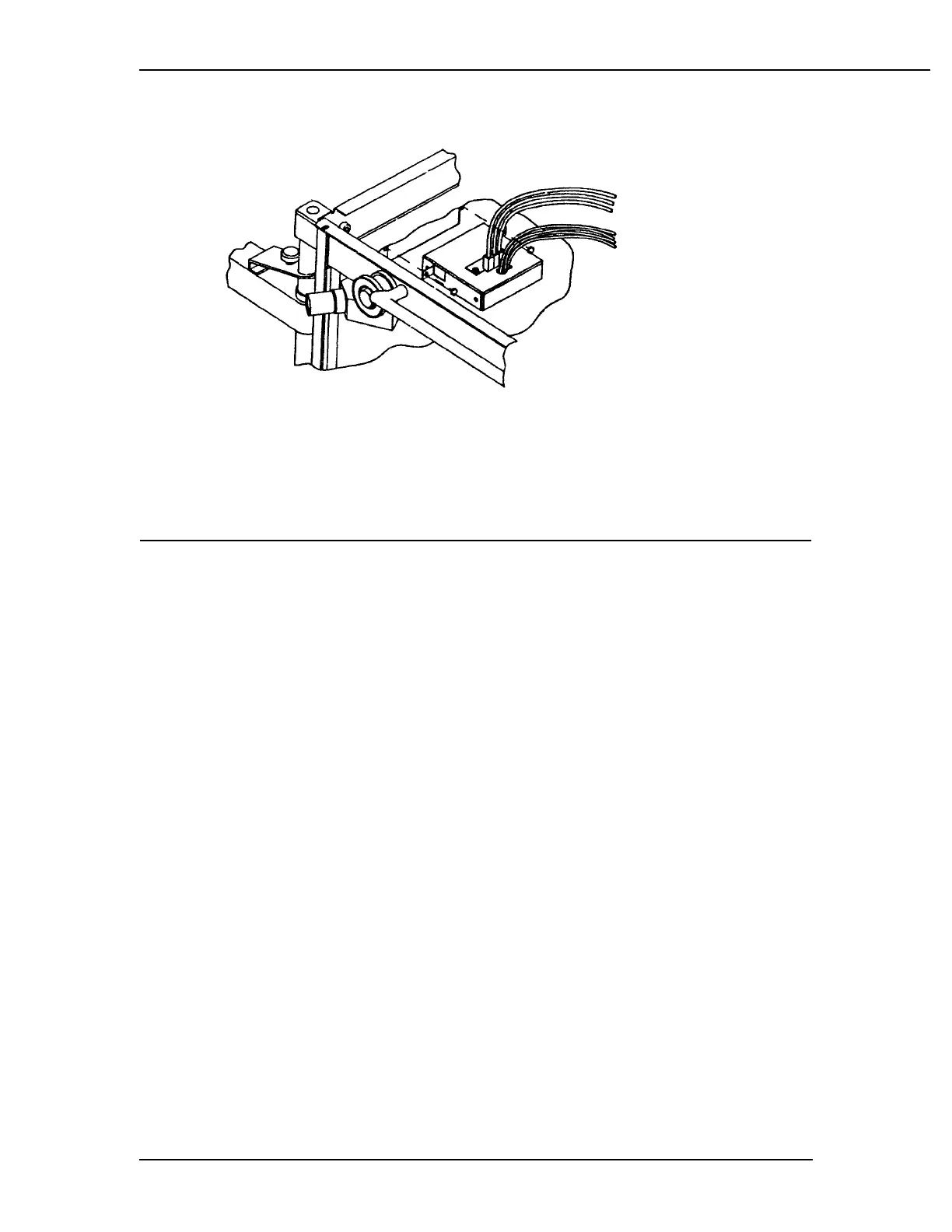

Figure 7-26
Patient interface board assembly, 1503-3081-000, (includes harness, interface
panel and tubing)
SIB Harnesses
SIB/Machine interface harness, 1503-3082-000 (connects O
2
flush, system ON/
Standby and DCGO on French machines).
SIB/7900 Ventilator cable, 1503-3075-000 (connects between the SIB and Venti-
lator).
Serial interface cable, 7900/RGM, 1503-3076-000.
Serial Interface cable, 1503-3077-000 (connects between the ventilator and RS-
232 device).
