6/ Repair Procedures
6-4 1503-0151-000 5/26/0
Removing the 7900 ventilator from the
non-integrated machine
The non-integrated ventilator mounts on a shelf which mounts into a shroud that is
open in the rear and has rear and bottom access to hoses or cables.

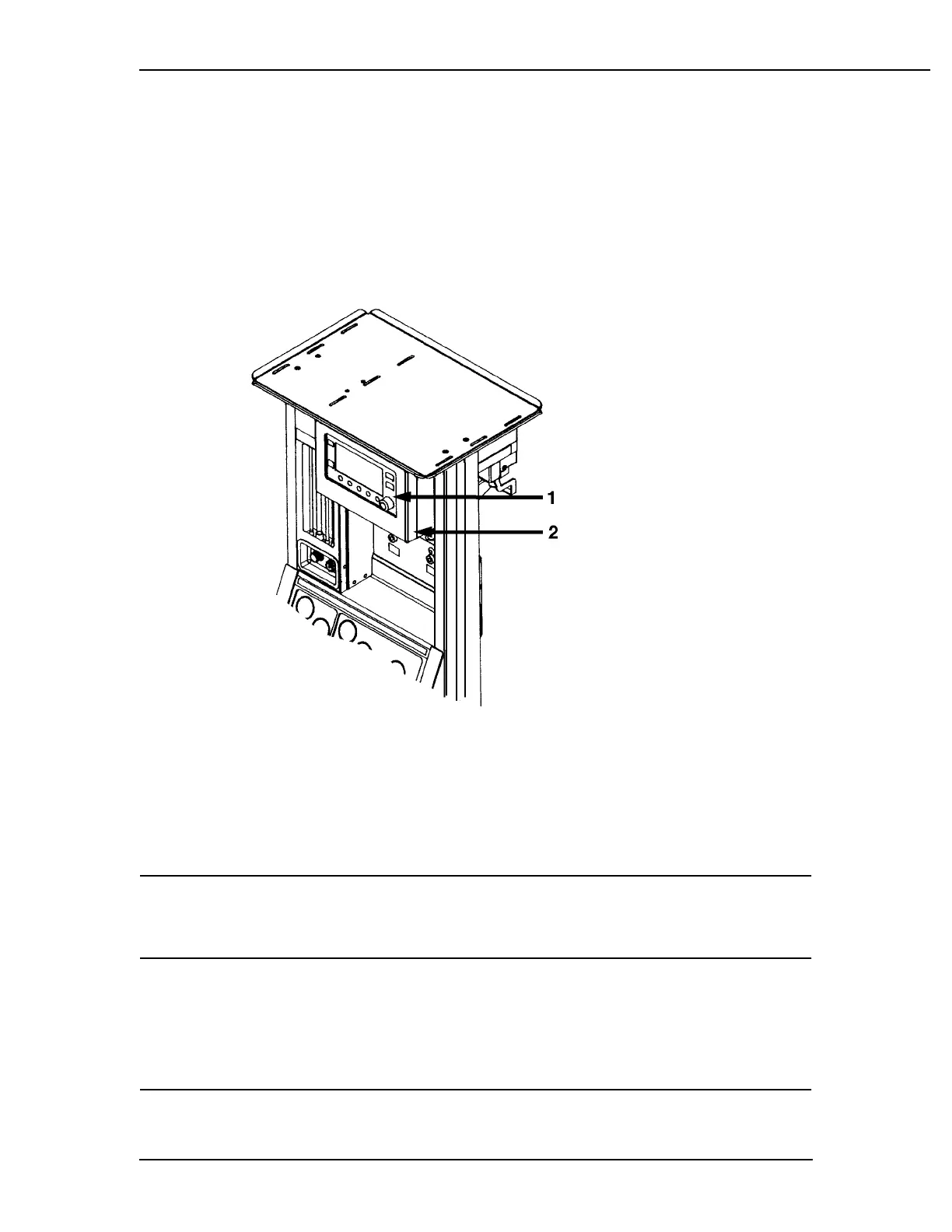

1. Ventilator
2. Ventilator shroud
Figure 6-3
Excel 210 without mid-shelf and non-integrated 7900 ventilator
Non-integrated;
the anesthesia machine has no mid shelf and the 7900 fits in a
shroud mounted to the under side of the top shelf
CAUTION:
w
Do not pull the exhalation valve manifold hoses straight down from the
block assembly to remove them. Too much force is needed if you pull
straight down. This added force can cause the hoses to release suddenly
and possibly cause damage the valve block or cause injury to the person
removing the hose. To remove the hoses, use a careful, light twisting,
back and forth movement while you apply pressure downward.
