Datex-Ohmeda 7900 - Page 153

7/ Illustrated Parts List
1503-0151-000 3/27/97 7-13
1. Screw M3 x 6, 9211-0430-063 (2)
2. Pressure switch, 1503-3023-000
3. Ground harness, 1500-7049-000
3a. Screw M4 (not shown), 0140-6226-118
3b. Washer M4 (not shown),9213-0540-003 (3)
3c. Keps nut M4 (not shown), 0144-3717-314
4. Fitting with o-ring, 1503-3007-000 (2)
5. Tubing (not shown), 0994-6370-010 (90 mm long 2 pieces)
5a. Coupling (not shown) 1503-3026-000

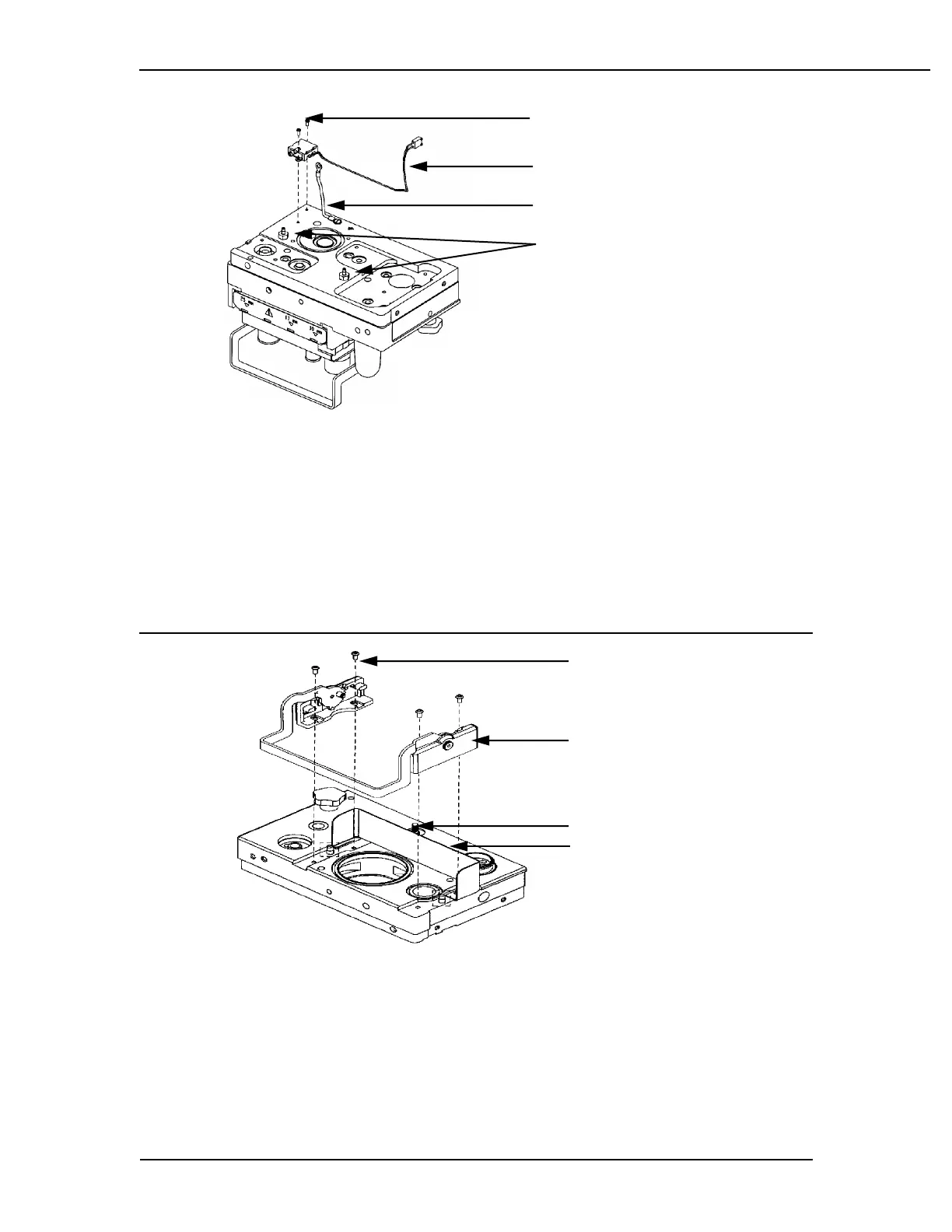

Figure 7-20
Manifold components (continued)
1. Screw M4 x 8 button head, 0140-6226-118
2. Latch assembly service kit, 1503-8014-000
2a. Not shown, guide springs included, 1503-3029-000
3. Test plug, 0213-4728-300
4. O2 deflector shield, 1503-3109-000
Figure 7-21
Exhalation manifold latch assembly
1
2
3
4
1
2
3
4
