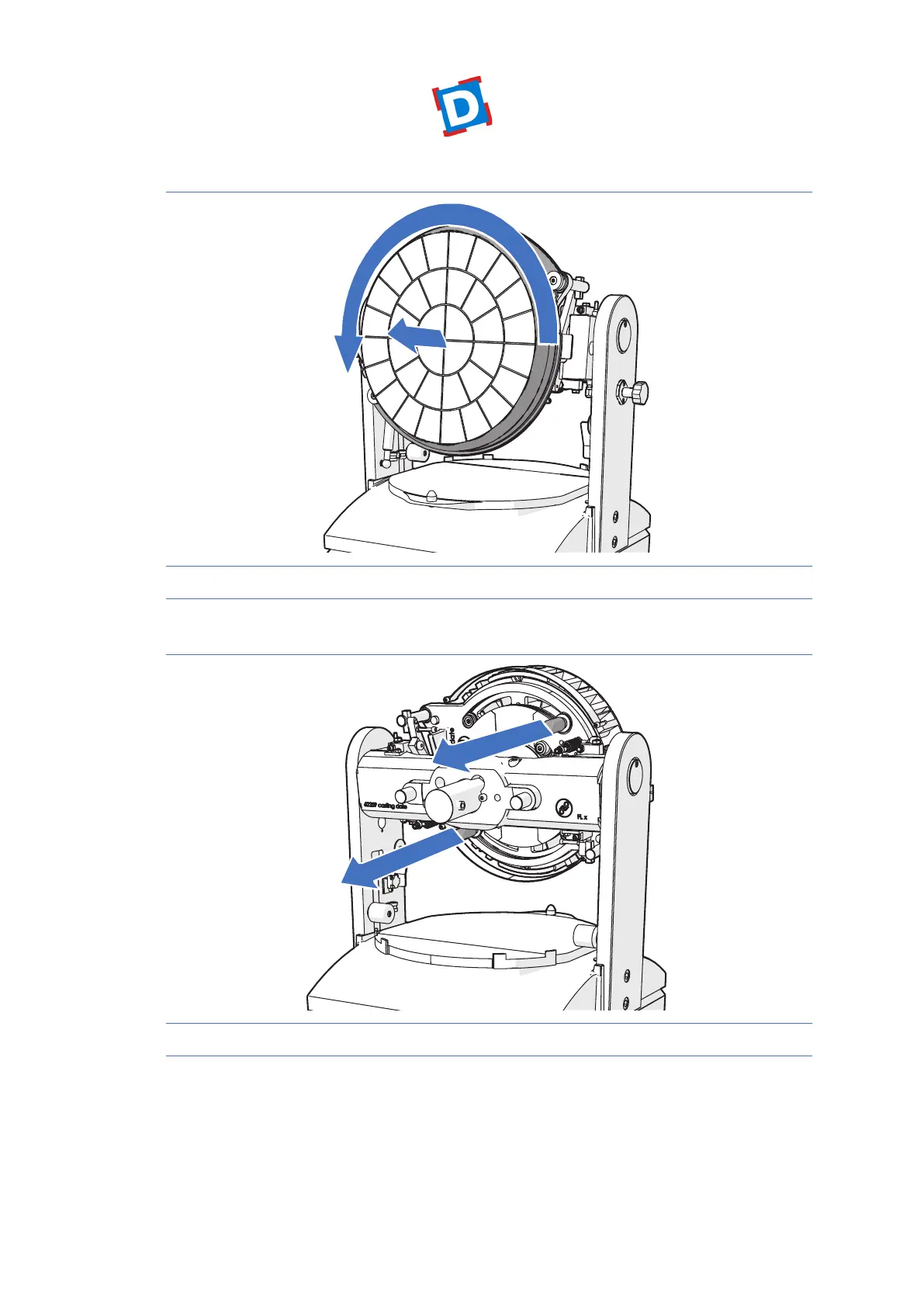

Figure e Remove the pressing ring
5. Removethepressingringbyturningitanticlockwise.Seegure12.
Figure r Remove the locking pins from the dividing disc
6. Removethetwolockingpinsfromthedividingdisc.Seegure13.
7. Rotate the two grips to the outside of the disc.
8. Lock the grips by pushing it into the disc.
