DR Robot Variomatic | User manual www.daub.nl58

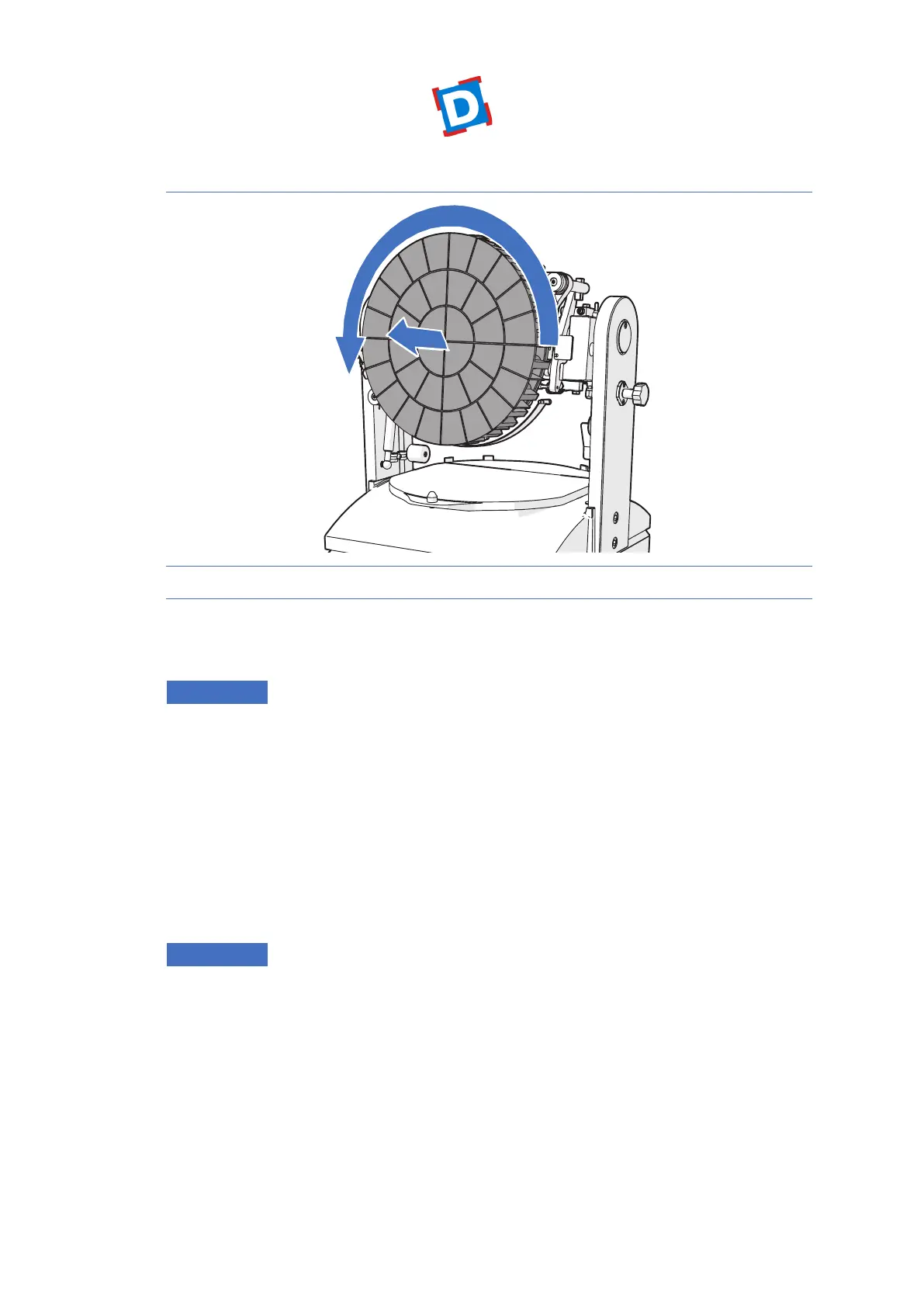

Figure t Turn the dividing disc
9. Turnthedividingdiscanticlockwise.Seegure14.
10. Pull disc towards you.
ATTENTION
Weight of disc is approx. 13 kg.
11. Insertadividingdisc,eitherthesameoneoradierentone.
12. Turn the dividing disc clockwise.
13. Unlock both handles by pushing them outwards.
14. Turn the two extended handles on the dividing disc inwards.
15. Insert the two locking pins for the dividing disc.
16. Fit the pressing ring by turning it clockwise.
17. Tilt the dividing disc downwards.
18. Push the locking pin back in.
19. Fit the front and rear cover.
ATTENTION
Alsoreplacetheroundingplateifdividingdiscisreplacedforanothertypewithdierentdivision.
