DayTronic System 10 - 2 Transducer Connections

Table 1 Thermistor Ranges for the Model 10A15-8
Typical Maximum
Display System Expected
Range Resolution Accuracy* Error*
0° C to +100° C 0.1° C ±0.2° C ±0.3° C
+32° F to +212° F 0.1° F ±0.3° F ±0.5° F
0° C to +100° C 0.01° C ±0.2° C ±0.3° C
+32° F to +212° F 0.02° F ±0.3° F ±0.5° F
2 TRANSDUCER CONNECTIONS
The Model 10A15-8’s I/O CONNECTOR mates with Daytronic CONDITIONER CON-
NECTOR No. 60322, shown in Fig. 1.5 (in Manual Section 1.E.1). Standard cabling is
shown in Fig. 1, below; standard pin assignments for the I/O connector are given in
Table 2.
10A15-8.2 TRANSDUCER CONNECTIONS
10A15-8 EIGHT-CHANNEL THERMISTOR CARD
* Including ± one count of least significant digit displayed and probe interchangeability error of
±0.15° C or ±0.25° F.
CONDITIONER CONNECTOR (No. 60322)
SHIELD
Connector pins shown as
viewed from rear (cable)
side of connector
C
1
2
3
4
5
6
7
8
9
10
Ground Lug
Channel
1
J
A
B
D
E
F
H
K
L
Etc.
T1 T2
T1 T2
Channel
2
SIGNAL
COMMON
(GROUND)

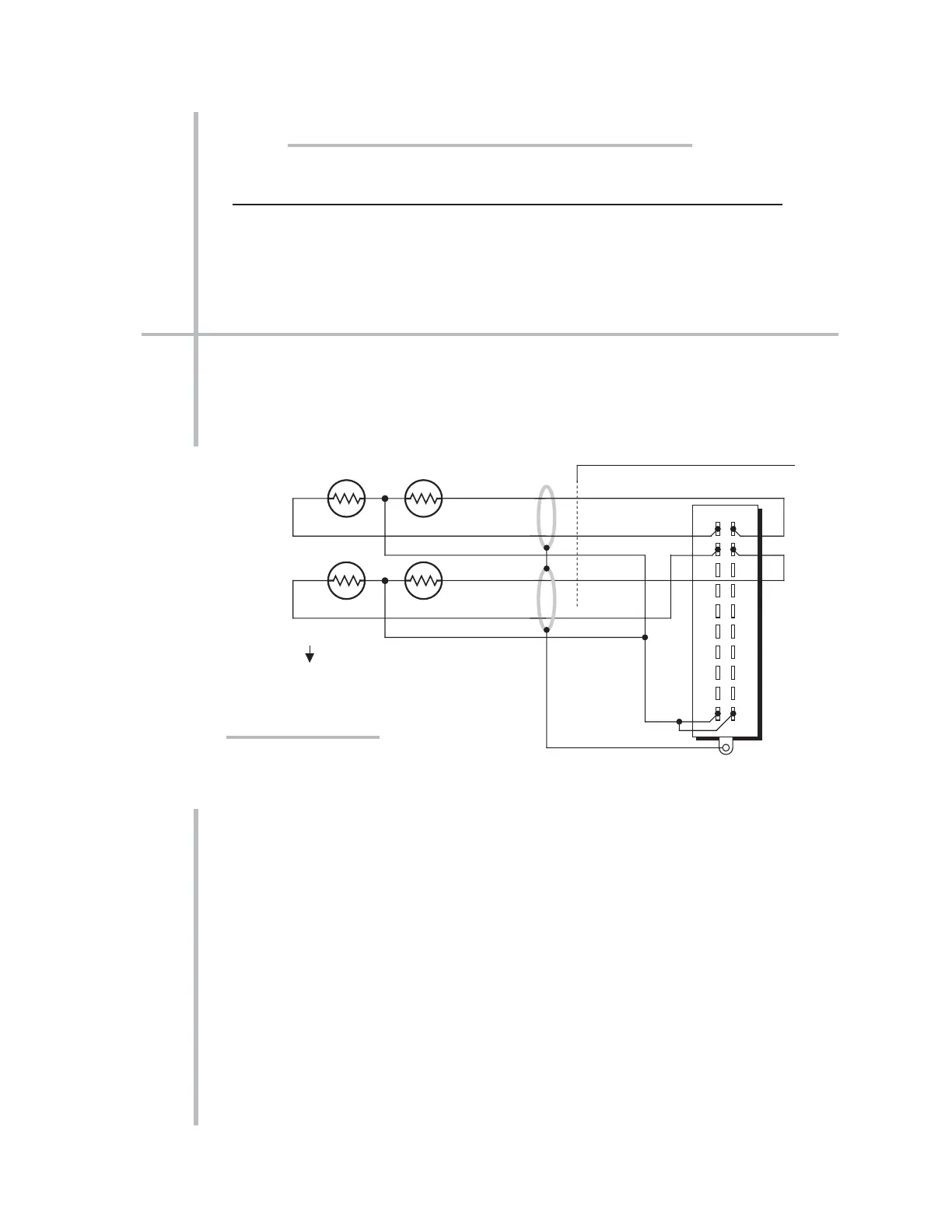

Fig. 1 Model 10A15-8
Transducer Cabling
