DayTronic System 10 - Page 237

TRANSDUCER CONNECTIONS 10A60-4.3
COMMON*
COMMON*
COMMON*
COMMON*
CONDITIONER CONNECTOR (No. 60322)
SHIELD
Connector pins shown as
viewed from rear (cable)
side of connector
1
2
3
4
5
6
7
8
9
10
Ground Lug
A
B
C
D
E
F
H
J
K
L
+SIGNAL
–SIGNAL
+
–
Channel 1
Analog
Signal
Source
Reg. Power
Supply
(if required)
–SIGNAL
+SIGNAL
Channel 2:
–SIGNAL
+SIGNAL
Channel 3:
–SIGNAL
+SIGNAL
Channel 4:
Recommended for floating source with high
common-mode impedance.
*

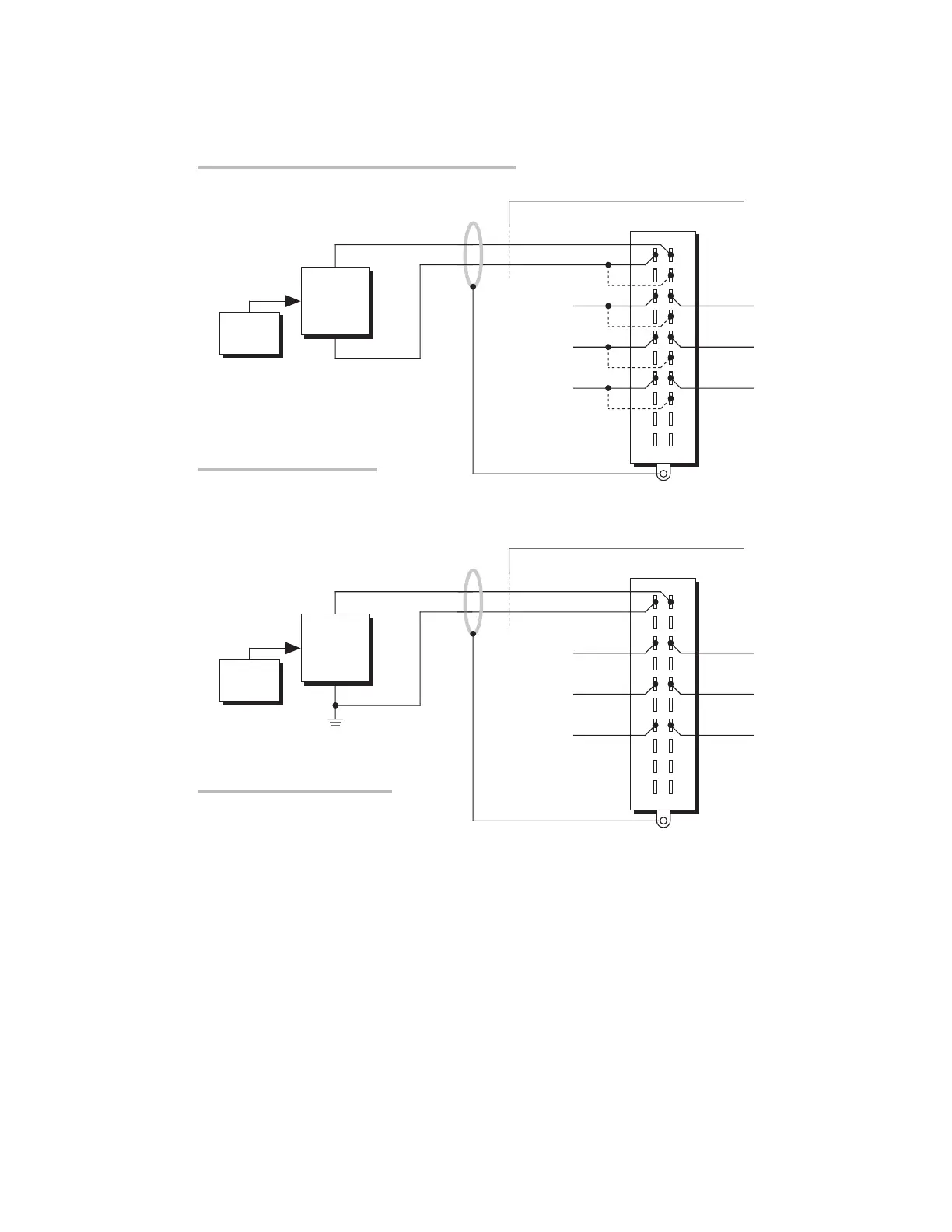

Fig. 1(a) 2-Wire Differential
(Floating) Voltage Input
CONDITIONER CONNECTOR (No. 60322)
SHIELD
Connector pins shown as
viewed from rear (cable)
side of connector
1
2
3
4
5
6
7
8
9
10
Ground Lug
A
B
C
D
E
F
H
J
K
L
+SIGNAL
–SIGNAL
+
–
Channel 1
Analog
Signal
Source
Reg. Power
Supply
(if required)
–SIGNAL
+SIGNAL
Channel 2:
–SIGNAL
+SIGNAL
Channel 3:
–SIGNAL
+SIGNAL
Channel 4:
Fig. 1(b) 2-Wire Single-Ended
(Grounded) Voltage Input
Fig. 1 Model 10A60-4 Transducer Cabling
QUAD DC VOLTAGE CARD 10A60-4
