DSE Model 5310 Automatic Mains Failure & Instrumentation System Operators Manual
Part No. 057-013 5310 OPERATING MANUAL ISSUE 7.1 18/06/2007 ADM 21

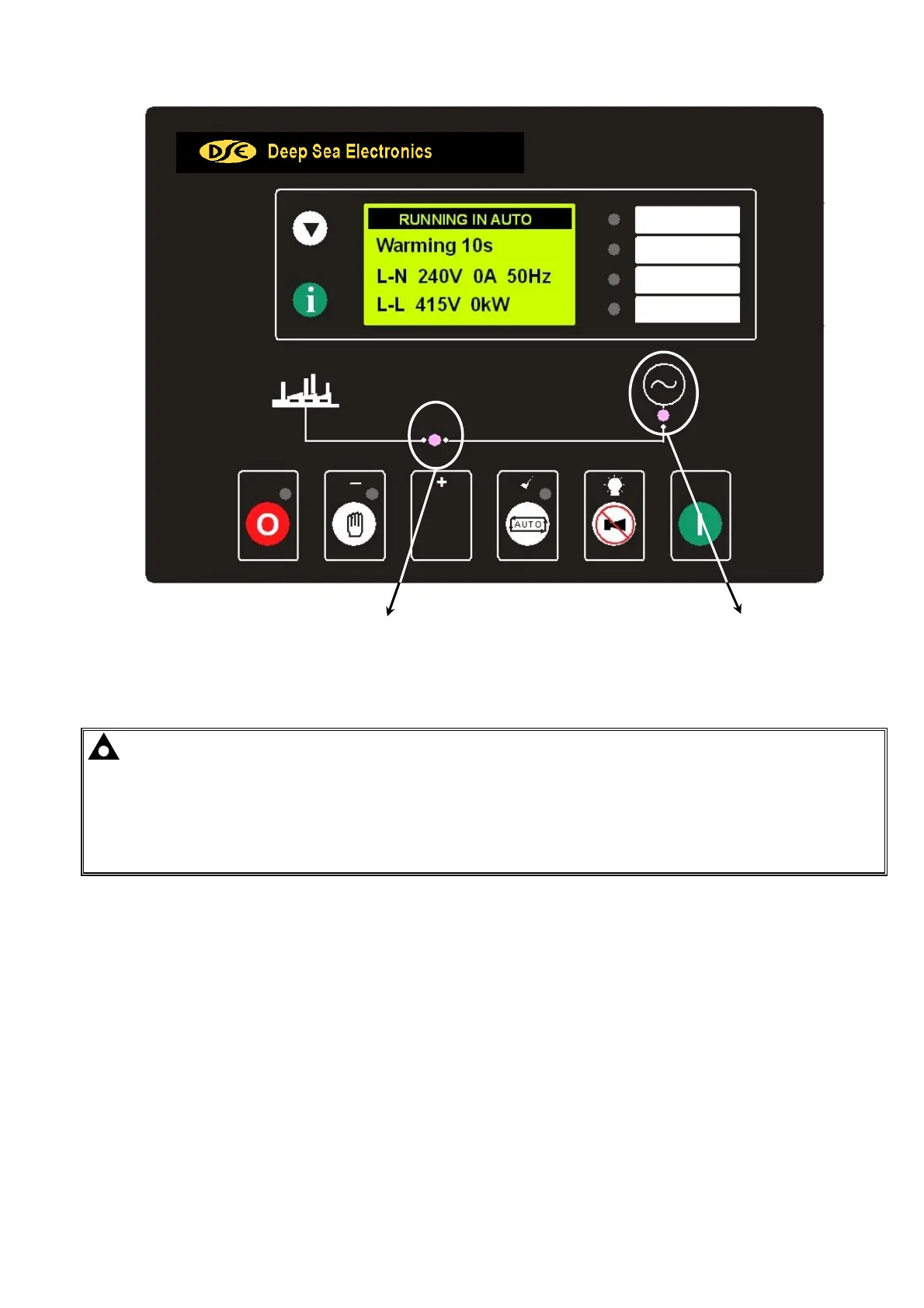

Close Generator
Output LED. On When
The Generator Is
Required To Be On
Load
Generator available
LED. On When The
Generator Is Available
For Loading.
NOTE:- “Generator on load” LED has two modes of operation depending upon the configuration of
the controllers digital inputs.
1) Digital input configured for “Generator closed auxiliary” – The LED will be lit when the generator
closed auxiliary input is active – The LED shows the state of the auxiliary contact.
2) There is NO input configured for “Generator closed auxiliary” (factory default setting) – The LED will
be lit when the 5310 gives the loading signal to the generator – The LED shows the state of the
5310’s loading request.
To Next Page
